Product Overview

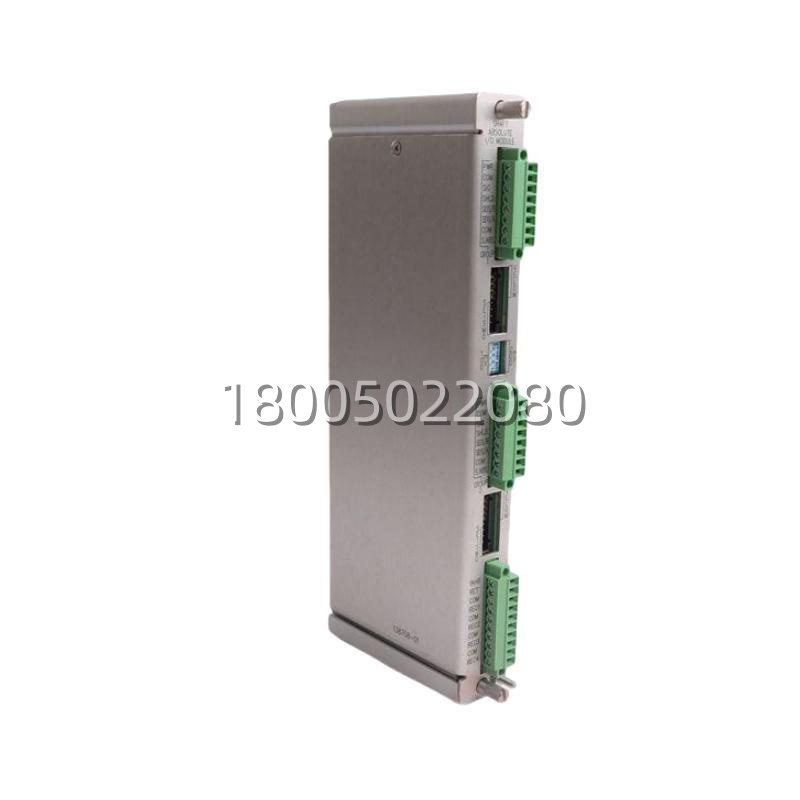

The Bently Nevada 81545-01 is a high-reliability Dual Epoxy Relay Module designed to provide robust switching capabilities for the Bently Nevada 3500 Machinery Protection System. This module consists of two independent Form C (SPDT) relays that are hermetically sealed in a durable epoxy housing. This construction method offers superior protection against environmental contaminants, ensuring reliable operation even in the harshest industrial settings. The 81545-01 is typically utilized as a component within larger assemblies, such as the 3500/15 AC Power Supply or the 3500/25 Keyphasor Module, where it serves as the primary interface for triggering alarms, trips, or external control logic based on machinery health data.

In the critical domain of turbomachinery protection, the integrity of the output signal is just as important as the accuracy of the input sensor. The Bently Nevada 81545-01 addresses this need by providing a fail-safe mechanism for alerting operators to dangerous conditions. When a monitor detects that vibration or position parameters have exceeded set thresholds, it energizes the 81545-01. which in turn closes or opens a circuit to external devices like shutdown solenoids or PLCs. The epoxy encapsulation not only protects the internal coil and contacts from moisture and dust but also significantly reduces the risk of electrical arcing, making it a safe and dependable choice for hazardous locations.
