Product Overview

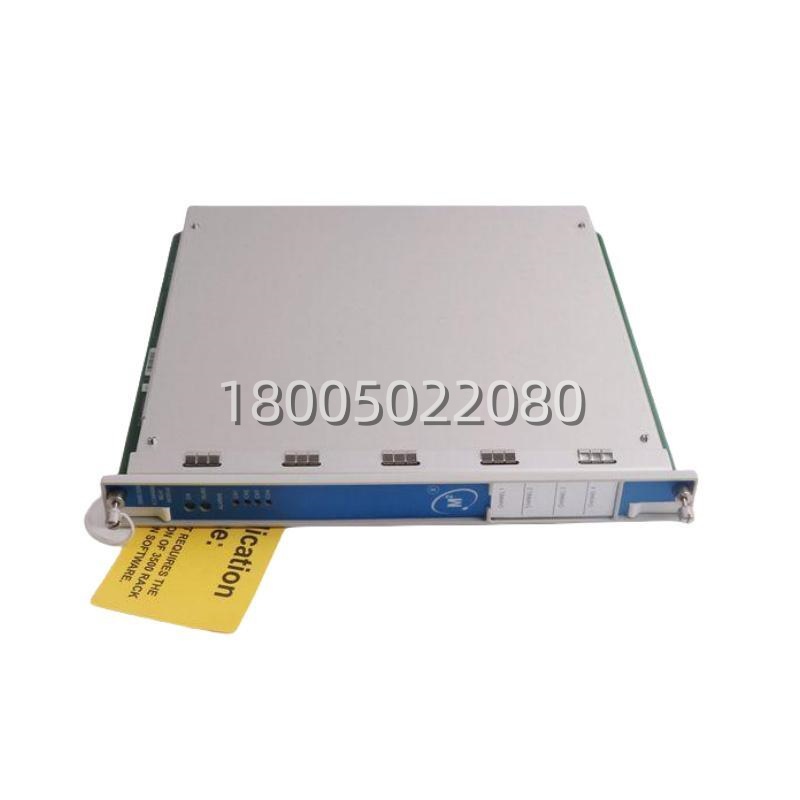

The Bently Nevada 3500/94M (part number 184826-01) serves as the central processing unit and primary interface for the renowned 3500 Machinery Protection System. As a critical component in the monitoring of turbomachinery, this main module is engineered to provide the essential computational power and communication backbone required for continuous, real-time equipment surveillance. The 3500/94M acts as the “brain” of the rack, managing the configuration, data acquisition, and alarm processing for all other modules installed within the chassis. It ensures that vital parameters such as vibration, position, and speed are accurately processed and that appropriate protective actions are triggered instantaneously when thresholds are exceeded.

Designed with redundancy in mind, the Bently Nevada 3500/94M is often deployed in pairs to ensure maximum system availability and safety. This dual-modular capability means that if one 184826-01 module were to fail, the secondary module would seamlessly take over control without interrupting the protection of the critical asset. The module features a robust architecture that supports extensive networking capabilities, allowing it to interface with Distributed Control Systems (DCS) and asset management software via Ethernet and proprietary protocols. By integrating the 3500/94M into your infrastructure, you are establishing a reliable foundation for machinery health monitoring that adheres to the stringent API 670 standards for machinery protection.

Main Features and Advantages

Redundant Architecture for Maximum Reliability: The most defining feature of the Bently Nevada 3500/94M is its ability to operate in a redundant configuration. In critical applications where even a split-second loss of monitoring is unacceptable, two 184826-01 modules can be installed in the same rack. They constantly synchronize their data and status, ensuring that a “hot standby” is always ready. This redundancy significantly reduces the risk of unprotected operation, providing peace of mind for operators of high-value assets like steam turbines and compressors.
