Product Overview

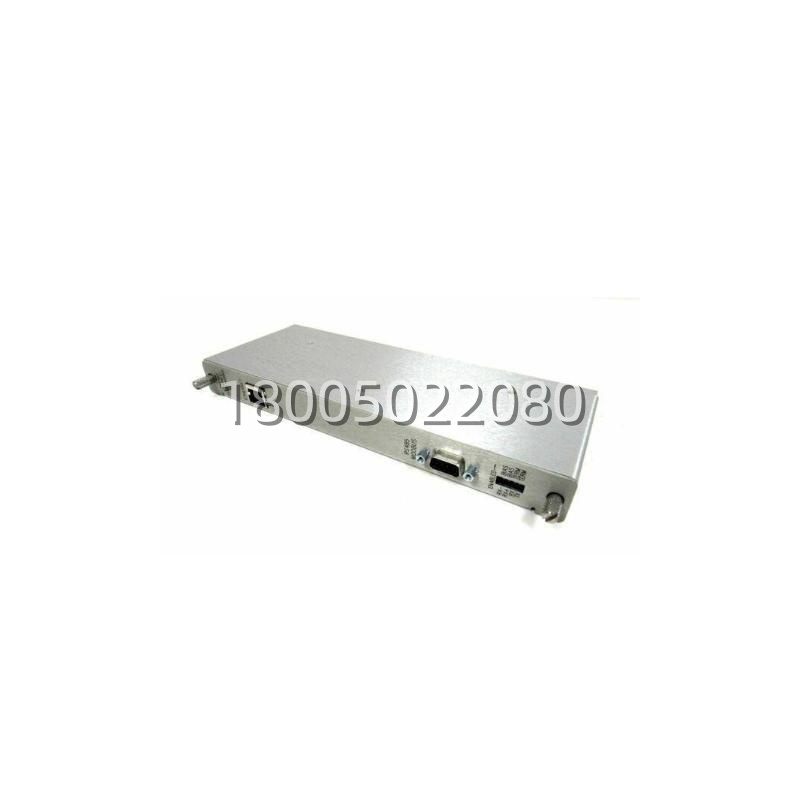

The Bently Nevada 3500/92 is a sophisticated Rack Interface Module designed to serve as the communication gateway for the System 3500 machinery protection platform. Identified by the part number 136188-01. this module provides the essential link between the 3500 rack and external control systems, such as Distributed Control Systems (DCS) or programmable logic controllers (PLC). The 3500/92 facilitates robust data exchange, allowing for the transmission of critical machinery health parameters and alarm statuses over standard industrial networks. It is a vital component for operators who require real-time visibility into turbine, compressor, and fan operations.

This module is engineered to support dual communication protocols, featuring both Ethernet and RS485 interfaces. This dual capability allows the Bently Nevada 3500/92 to operate flexibly within various plant architectures, supporting Modbus TCP/IP over Ethernet and Modbus RTU over RS485. By integrating the 3500/92 into a protection rack, users can access high-speed dynamic data and static machine condition values remotely. This ensures that the module not only handles configuration data but also streams live operational metrics, making it indispensable for modern, connected industrial environments where data integrity and accessibility are paramount.

Main Features and Advantages

Dual Protocol Connectivity: The primary strength of the Bently Nevada 3500/92 lies in its versatility. By offering both Ethernet and RS485 ports, the 3500/92 eliminates the need for additional third-party gateways in many applications. The Ethernet port supports Modbus TCP/IP, enabling high-speed communication over standard plant networks, while the RS485 port supports Modbus RTU for legacy or specific serial connections. This flexibility simplifies the architecture of the machinery protection system and reduces potential points of failure.

High Data Integrity and Speed: The 3500/92 is designed to handle the rigorous data demands of critical machinery monitoring. It provides a configurable data map, allowing users to select exactly which parameters (such as vibration, position, or speed) are transmitted to the host system. This ensures that the DCS receives the most relevant data without network congestion. The module’s ability to update data rapidly ensures that control room operators see near real-time conditions, which is crucial for preventing catastrophic equipment failure.
