Product Overview

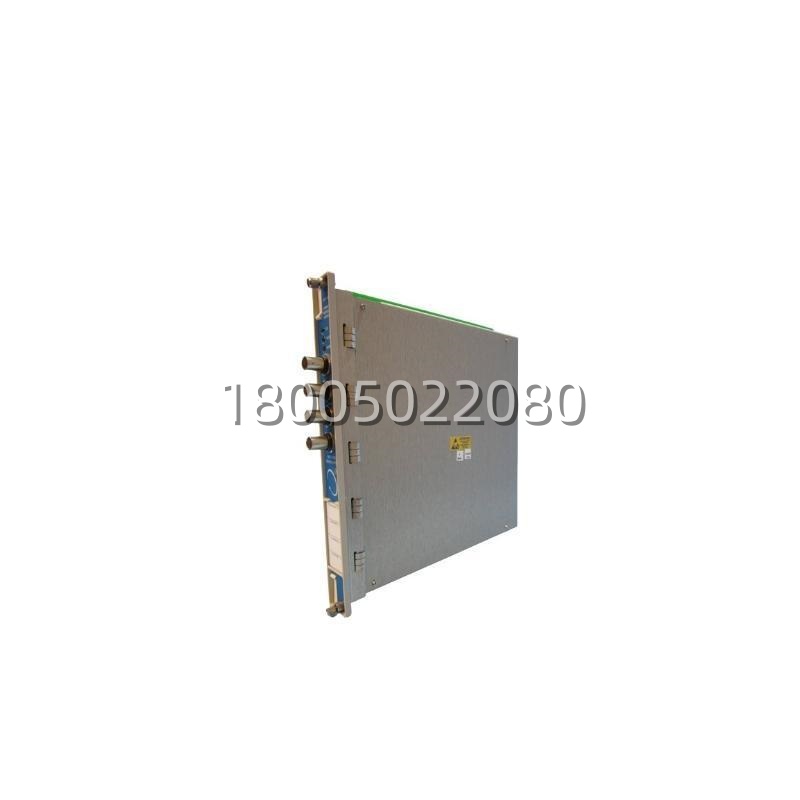

The Bently Nevada 3500/64M (part number 140471-02) is a sophisticated 4-channel dynamic pressure monitor designed to provide essential protection and monitoring capabilities for machinery trains. As a critical component of the 3500 Machinery Protection System, the 3500/64M is engineered to accept input from dynamic pressure transducers, processing these signals to monitor for alarm and trip conditions. This module is particularly vital in applications involving combustion dynamics in gas turbines, where precise measurement of pressure pulsations is necessary to prevent catastrophic damage to combustors and associated hardware.

The 140471-02 version of the 3500/64M specifically indicates a module equipped with a Rack Interface Block, which facilitates seamless communication with the 3500 rack backplane and external systems. This monitor continuously compares processed pressure values against user-programmable alarm and trip setpoints, driving relay outputs to initiate protective actions when necessary. By integrating the 3500/64M into your automation architecture, operators gain real-time visibility into dynamic pressure events, allowing for immediate response to combustion instabilities or other pressure-related anomalies that could compromise asset integrity.
