Product Overview

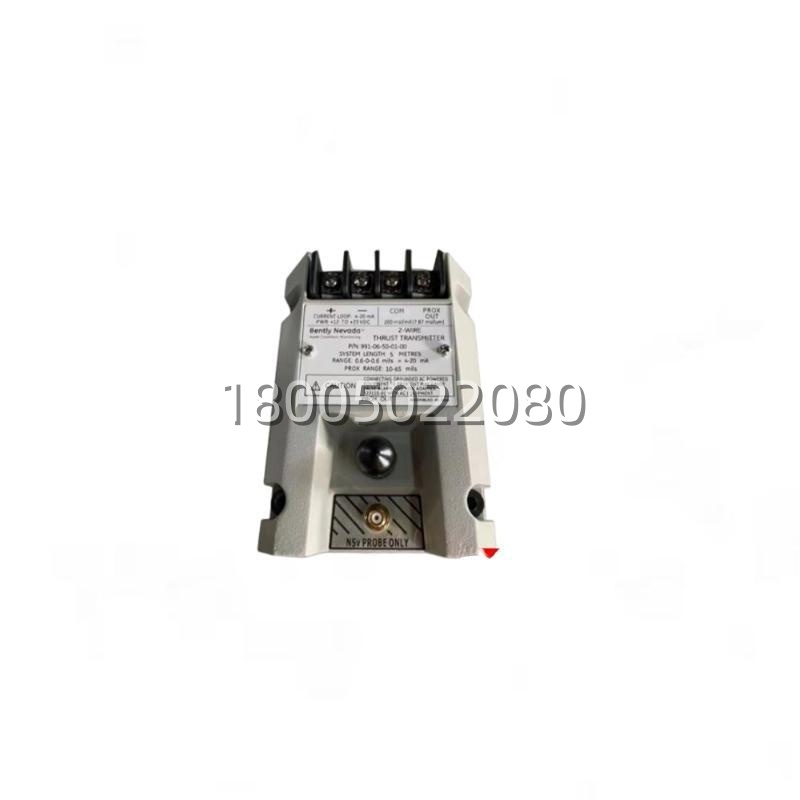

The Bently Nevada 991-01-50-01-00 is a sophisticated 2-Wire shaft displacement transmitter designed for the precise monitoring of axial movement in rotating machinery. As a member of the Bently Nevada 991 Series, this device serves as a critical component in the protection of industrial assets, converting mechanical displacement into a reliable 4-20 mA analog output signal. Engineered for integration with the renowned 3300 XL Proximitor system, the 991-01-50-01-00 is specifically configured for a 5.0-meter system length, offering flexibility in sensor placement and cable routing. This transmitter is instrumental in safeguarding equipment such as turbines, compressors, and motors by providing continuous, real-time data on shaft position relative to the bearing.

Operating on a loop-powered architecture, the 991-01-50-01-00 simplifies electrical connections by deriving its operating power directly from the 4-20 mA output loop. This design not only reduces the complexity of cabling but also minimizes the power consumption footprint within the control system. By providing a standard industrial output, the transmitter allows plant operators to easily trend displacement data and set alarms within their Distributed Control System (DCS) or Programmable Logic Controller (PLC). The device is calibrated to a measurement range of 0-125 micrometers (0-5 mils), making it suitable for applications requiring high-resolution detection of axial displacement.

Precision and Reliability:

The 991-01-50-01-00 is designed to deliver high-precision measurements with a sensitivity of 200 mV/mil (7.87 mV/µm) and an accuracy of ±1.5%. This level of precision is critical for detecting even the slightest axial movement that could indicate impending mechanical failure, such as thrust bearing wear or rotor instability. The transmitter’s robust design ensures stable performance across a wide temperature range, making it suitable for deployment in harsh industrial environments, including those with extreme heat or cold.

Simplified Wiring and Power:

One of the standout features of this transmitter is its 2-wire, loop-powered design. By combining power and signal transmission over a single pair of wires, the 991-01-50-01-00 significantly reduces installation costs and the complexity of the control panel. This architecture is particularly advantageous in retrofit applications where adding a dedicated power supply for each sensor would be impractical. The unit’s ability to operate on a standard 12-35 Vdc power supply further enhances its compatibility with existing industrial infrastructure.

Advanced Diagnostic Capabilities:

The 991-01-50-01-00 includes a dedicated “Prox Out” terminal that outputs the raw, unfiltered vibration signal. This feature allows maintenance engineers to connect portable test equipment directly to the transmitter for diagnostic purposes without disrupting the primary control loop. Additionally, the device incorporates a “Signal Fail” circuit that prevents false high readings in the event of a probe or cable failure, ensuring the integrity of the safety system. The unit’s sealed construction protects against moisture and contaminants, ensuring long-term reliability in demanding process conditions.
