🛠️ Technical Principles & Engineering Innovations

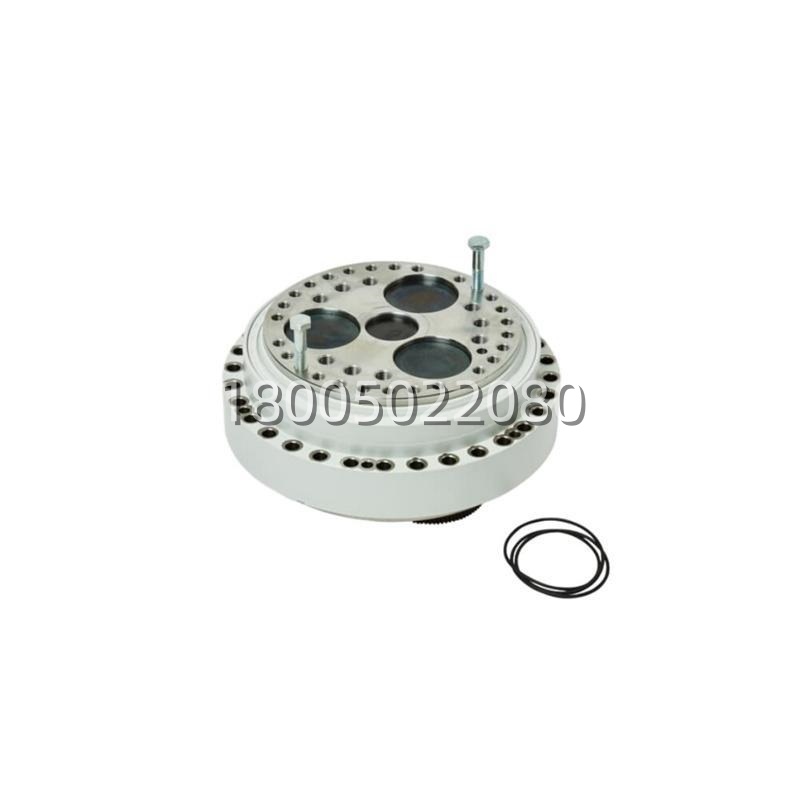

The 3HAC043073-003 is a precision-engineered component that integrates several key mechanical principles to deliver superior performance:

RV-500N-236 Planetary Gear Train: This gearbox utilizes a planetary gear set with a cycloidal drive, which offers high rigidity and torsional stiffness. The design allows for a compact footprint while achieving a high reduction ratio, essential for providing the necessary torque to the robot’s tooling without adding significant weight to the arm.

Zero Backlash Capability: A critical feature for the IRB 8700. the 3HAC043073-003 is designed to minimize or eliminate backlash. This ensures that when the robot rotates the tool to a specific angle, it does so with extreme precision, which is vital for tasks such as welding where accuracy is paramount.

Lubrication and Sealing: The gearbox is pre-filled with high-quality, long-life lubricant. The seals are specifically designed to withstand the aggressive lubricants used in the robot’s transmission system, ensuring that the gearbox remains sealed against contaminants and retains its lubrication over the long term.

🏭 Application Scenarios & Industry Value

The ABB IRB 8700 3HAC043073-003 is a staple in modern heavy-duty manufacturing cells, particularly where the robot must perform complex rotations of its tooling.

Case Study: Heavy-Duty Welding in Shipbuilding

In a shipyard, the IRB 8700 is deployed for welding large steel plates. The robot is equipped with a heavy welding torch attached to its wrist.

The Role of the Gearbox: Axis 5 (driven by the 3HAC043073-003)) is responsible for tilting the welding torch to the correct angle for each weld bead. The high torque rating of the gearbox allows the robot to apply significant force to the torch while maintaining a high rotational speed.

Performance Impact: The zero-backlash feature of the 3HAC043073-003 ensures that the torch enters the weld joint at the exact programmed angle, preventing weld defects. The planetary gear design allows for rapid indexing between weld points, significantly reducing cycle times.

Value: By utilizing this specific gearbox, manufacturers achieve a balance of speed and strength, making the IRB 8700 one of the most versatile robots for heavy fabrication.
