Main Features and Advantages

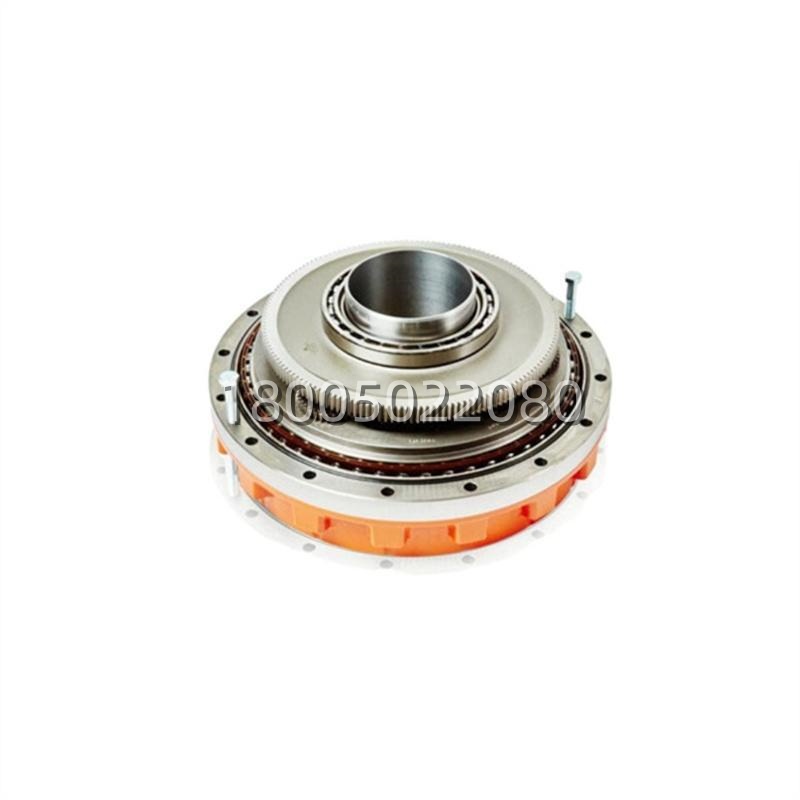

High precision and repeatability: The ABB 3HAC054556-001 is manufactured to extremely tight tolerances, minimizing backlash (lost motion) between the motor and the robot arm. This precision is essential for applications such as machine tending or assembly, where the robot must return to the exact same position thousands of times without deviation. The internal gearing is designed to absorb shock loads while maintaining smooth motion, ensuring that the ABB 3HAC054556-001 delivers consistent performance even under dynamic operating conditions.

Robust construction for heavy payloads: Designed to support the rigorous demands of the IRB 4600 series, this gearbox is built with high-strength materials capable of withstanding significant radial and axial loads. The ABB 3HAC054556-001 features a sealed housing that protects the internal components from contaminants such as dust, metal shavings, and moisture. This robust design allows the unit to operate reliably in harsh industrial environments, including foundries and welding cells, where lesser components might fail prematurely.

Optimized lubrication system: Proper lubrication is the lifeblood of any mechanical transmission. The ABB 3HAC054556-001 is designed to work with specific high-viscosity lubricants (such as Kyodo Yushi TMO 150 or Optimol Optigear BM 100) that provide a durable film between gear teeth. This reduces friction and heat generation, significantly extending the service life of the unit. The design includes accessible fill and drain ports, facilitating routine maintenance and ensuring that the ABB 3HAC054556-001 can be serviced efficiently to minimize production downtime.

Application Field

Automotive manufacturing and assembly: In the automotive sector, robots are tasked with moving heavy car frames, engines, and body panels with speed and accuracy. The ABB 3HAC054556-001 is frequently utilized in the base and shoulder joints of robots performing spot welding, material handling, and part transfer. In these high-cycle environments, the reliability of the ABB 3HAC054556-001 is paramount; a failure in this component could halt an entire production line, resulting in significant financial loss.

Metal fabrication and machine tending: For machine tending applications, where robots load and unload CNC machines or presses, the robot must endure constant start-stop motion and heavy inertial loads. The ABB 3HAC054556-001 provides the necessary torque multiplication to lift heavy metal parts while maintaining the rigidity required to insert them precisely into machinery. Its ability to handle high moment loads makes it ideal for the cantilevered forces often experienced by the lower axes of the robot during these operations.

Palletizing and logistics: In palletizing applications, robots stack heavy boxes or bags at high speeds. The ABB 3HAC054556-001 supports the rapid acceleration and deceleration cycles required to meet throughput targets. The gearbox’s durability ensures that the robot can handle the repetitive stress of lifting heavy payloads from the floor to high pallets without suffering from mechanical fatigue, making the ABB 3HAC054556-001 a cornerstone of efficient logistics automation.
