Product Overview

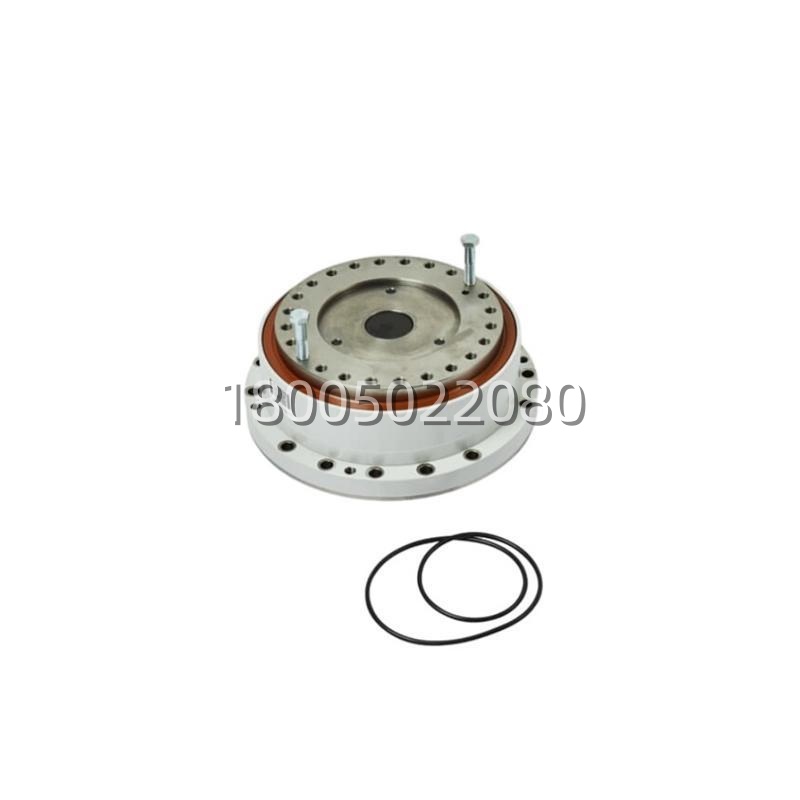

The ABB 3HAC044841-002 is a high-precision Reduction Gear assembly, specifically engineered for the third axis of the ABB IRB 6700 series industrial robots. Identified by the part number 3HAC044841-002. this component serves as the critical mechanical transmission unit that converts the high-speed, low-torque output of the servo motor into the high-torque, low-speed motion required for precise robotic manipulation. The ABB 3HAC044841-002 is designed to deliver exceptional accuracy, repeatability, and durability, ensuring the robot can perform complex tasks with consistent quality over millions of cycles.

In the architecture of an industrial robot, the ABB 3HAC044841-002 acts as the “joint” for the robot’s upper arm. It utilizes advanced gearing technology, likely a Harmonic Drive® or similar strain wave gear principle, which allows for a compact design with zero backlash. This backlash-free operation is essential for applications requiring fine control, such as arc welding, material handling, or machine tending. The ABB 3HAC044841-002 ensures that the commanded motion of the robot controller is translated into the physical movement of the tool with minimal error, maintaining the integrity of the production process.

The ABB 3HAC044841-002 is built to withstand the rigorous demands of heavy industrial environments. It features a robust housing and high-strength gearing materials that provide long service life even under heavy loads and high-cycle operation. The gearbox is sealed to protect the internal components from dust, coolant, and other contaminants found in factory settings. Its modular design allows for efficient maintenance and replacement, minimizing robot downtime during servicing. The ABB 3HAC044841-002 is a testament to the advanced engineering that enables modern industrial robots to achieve both high speed and high precision.
