Product Overview

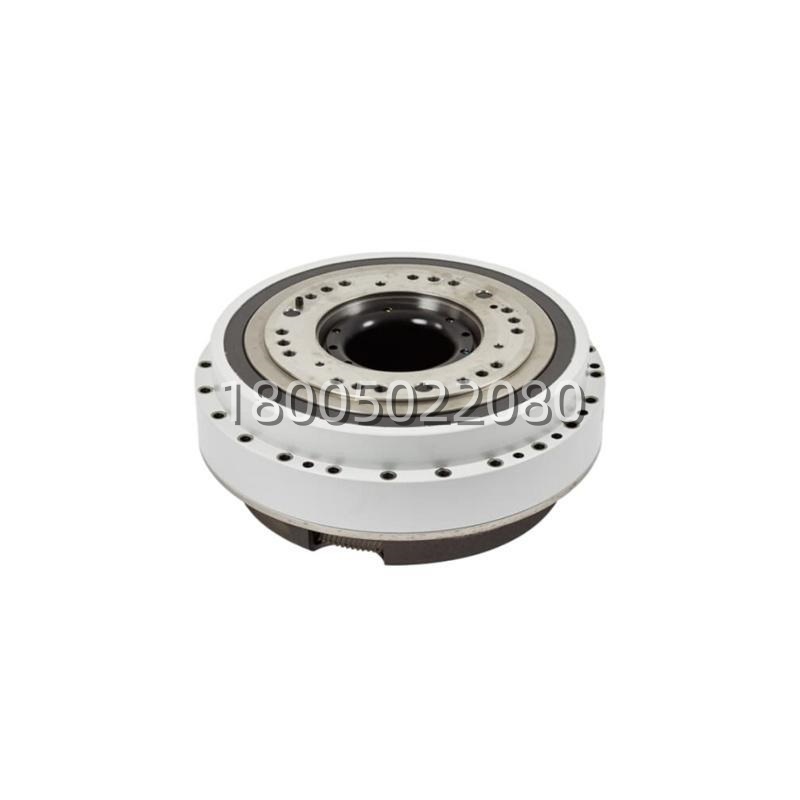

The ABB 3HAC037638-001 is a high-precision Robotic Gearbox, specifically a Harmonic Drive® assembly, designed as a critical mechanical component for ABB industrial robots. Identified by the part number 3HAC037638-001. this gearbox serves as the “joint” of the robot arm, converting the high-speed, low-torque output of the servo motor into the high-torque, low-speed motion required for precise robotic manipulation. The ABB 3HAC037638-001 is engineered for exceptional accuracy, repeatability, and durability, ensuring the robot can perform complex tasks with consistent quality.

In the architecture of an industrial robot, the ABB 3HAC037638-001 acts as the mechanical interface between the motor and the robot’s link. It utilizes the unique kinematics of the Harmonic Drive principle, which allows for a compact design with zero backlash. This backlash-free operation is essential for applications requiring fine control, such as arc welding, where the torch must be held steady at a precise angle, or in material handling, where accurate positioning is critical for part placement. The ABB 3HAC037638-001 ensures that the commanded motion of the robot controller is translated into the physical movement of the tool with minimal error.

The ABB 3HAC037638-001 is built to withstand the continuous, high-cycle operation typical of automotive and manufacturing assembly lines. It features a robust housing and high-strength gearing materials that provide long service life even under heavy loads. The gearbox is sealed to protect the internal components from dust, coolant, and other contaminants found in factory environments. Its modular design allows for efficient maintenance and replacement, minimizing robot downtime during servicing. The ABB 3HAC037638-001 is a testament to the advanced engineering that enables modern industrial robots to achieve both high speed and high precision.
