Description

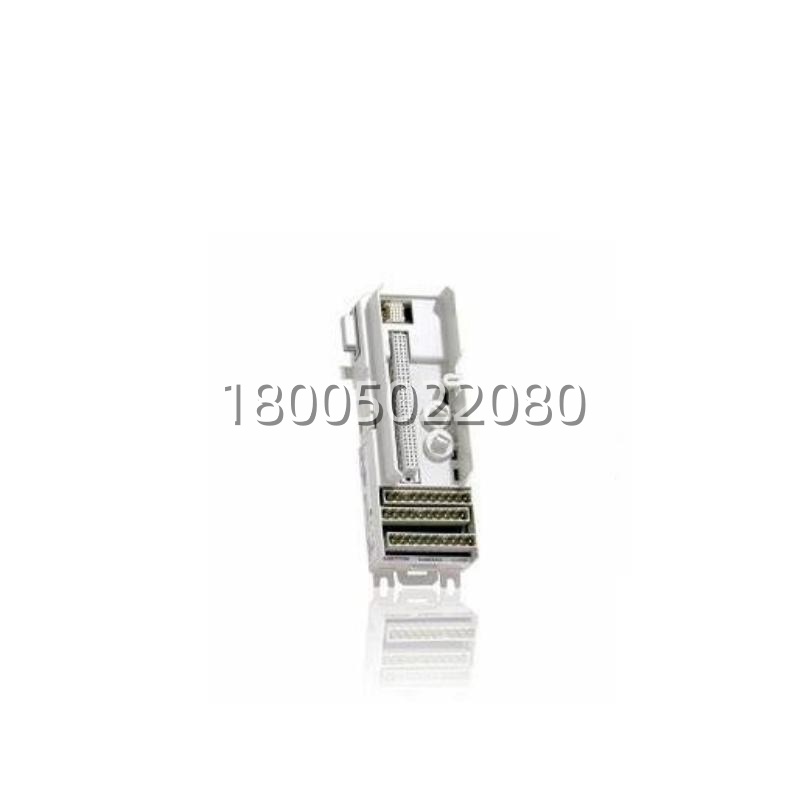

The ABB TU819 is a compact terminal base designed to provide a reliable interface between ABB S800 I/O modules and field wiring in industrial automation systems. Rated for 50V applications, this termination unit ensures secure connectivity for digital and analog signals while optimizing cabinet space. The ABB TU819 serves as the physical and electrical foundation for I/O modules, facilitating easy installation, maintenance, and signal integrity in demanding environments.

Application Scenarios

In a food and beverage processing plant, precise control over mixing temperatures and flow rates is critical to product quality. The facility uses an ABB DCS where S800 I/O modules manage sensor inputs and actuator outputs. The ABB TU819 serves as the termination point for these field devices, connecting temperature probes and control valves to the automation system. When a sensor needs calibration or replacement, technicians can easily access the terminals on the ABB TU819 without disturbing the I/O module itself. This modular design minimizes downtime and ensures the continuous, safe operation of the production line.
