Description

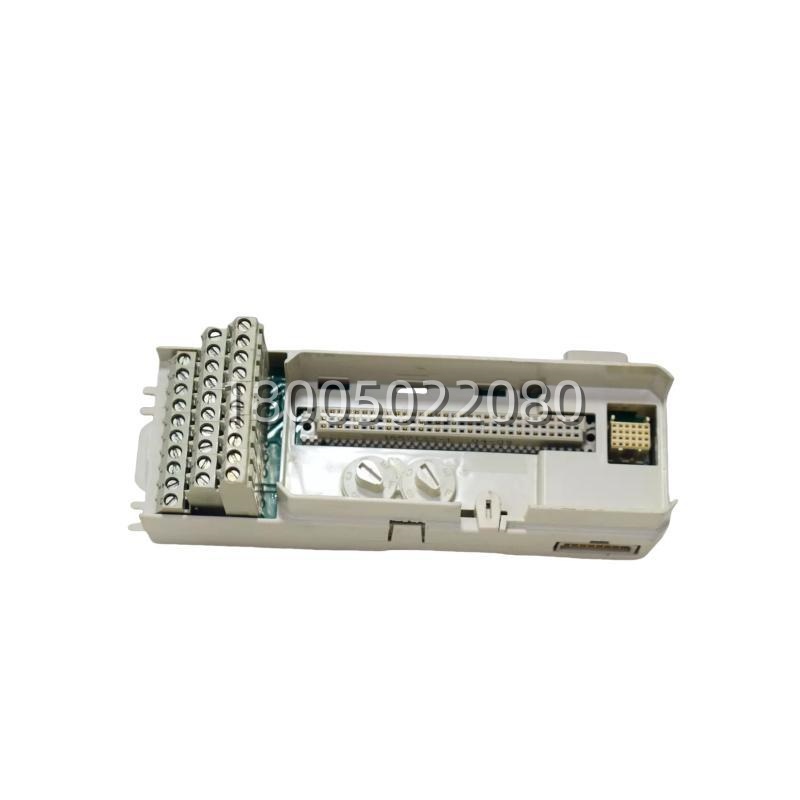

The ABB TU810V1 3BSE013230R1 is a Compact Module Termination Unit (MTU) designed to serve as the critical interface between ABB S800 I/O modules and field wiring. This unit provides a secure, organized, and reliable connection point for 16 signal channels (configured as 2×8 terminals). The ABB TU810V1 3BSE013230R1 features a 50V insulation rating, making it ideal for low-voltage digital and analog applications. By consolidating field connections into a compact form factor, it significantly reduces cabinet space requirements and simplifies the complexity of industrial control panel wiring.

Application Scenarios

In a high-speed automotive assembly line, a Distributed Control System (DCS) manages hundreds of sensors and actuators. Space within the control cabinets is at a premium, and wiring density is high. Engineers select the ABB TU810V1 3BSE013230R1 to terminate the signals from the proximity sensors and solenoid valves. The compact design of the ABB TU810V1 allows for a tighter arrangement of I/O modules, saving valuable panel space. During a scheduled maintenance shutdown, technicians utilize the clear labeling and accessible terminals of the ABB TU810V1 3BSE013230R1 to rapidly verify signal continuity, ensuring the assembly line returns to full production with minimal delay.
