Description

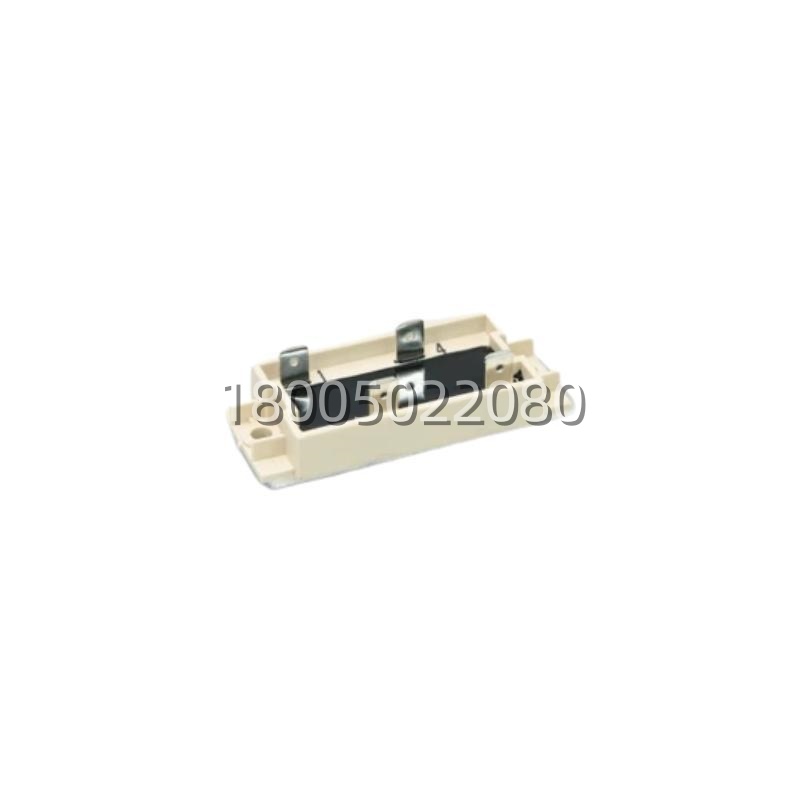

The ABB NRED-61 (Order Code: 68262747), often referred to as the T-F Hybrid SP Kit, is a specialized spare parts kit designed for maintenance and repair of ABB’s high-power industrial drives, particularly within the ACS 800 and ACS 880 series featuring specific hybrid topologies (often associated with marine or heavy industrial applications). The “T-F” designation typically refers to a specific configuration involving Thyristor and Fuse or Transformer-Filter hybrid arrangements within the drive’s power section. This kit contains a curated selection of critical components—such as fast-acting fuses, snubber circuits, gating resistors, or specific hybrid module elements—necessary to restore the drive to its original performance specifications after a fault. Using the genuine NRED-61 kit ensures that all replaced components meet ABB’s strict quality and coordination standards, preventing mismatched characteristics that could lead to repeated failures or reduced equipment life.

Clarification Note: The “SP Kit” stands for Spare Parts Kit. The “T-F Hybrid” likely denotes a specific power circuit topology (e.g., Thyristor-Fuse hybrid or a specific transformer-fed hybrid rectifier/inverter stage) unique to certain large-frame drives. The part number 68262747 is the definitive identifier for this specific assembly.

Application Scenarios

In a large offshore oil platform in the North Sea, the main mud pump drive (an ABB ACS 800 multi-drive system) experienced a catastrophic failure in its input rectifier section due to a grid transient. The initial diagnosis revealed blown fuses and damaged snubber components in the hybrid power block. Standard off-the-shelf fuses were unavailable with the exact time-current characteristics required for the drive’s protection coordination. The maintenance team deployed the ABB NRED-61 T-F Hybrid SP Kit. This kit provided the exact matched set of high-speed fuses and associated hybrid circuit components specified by ABB for that specific drive frame. After installation, the drive was successfully commissioned without further trips. The use of the NRED-61 kit ensured that the protection system would operate correctly during future transients, safeguarding the multi-million dollar pump motor and preventing costly production deferment. The platform operators now keep two NRED-61 kits in their critical spares inventory to ensure rapid recovery from similar events.
