Description

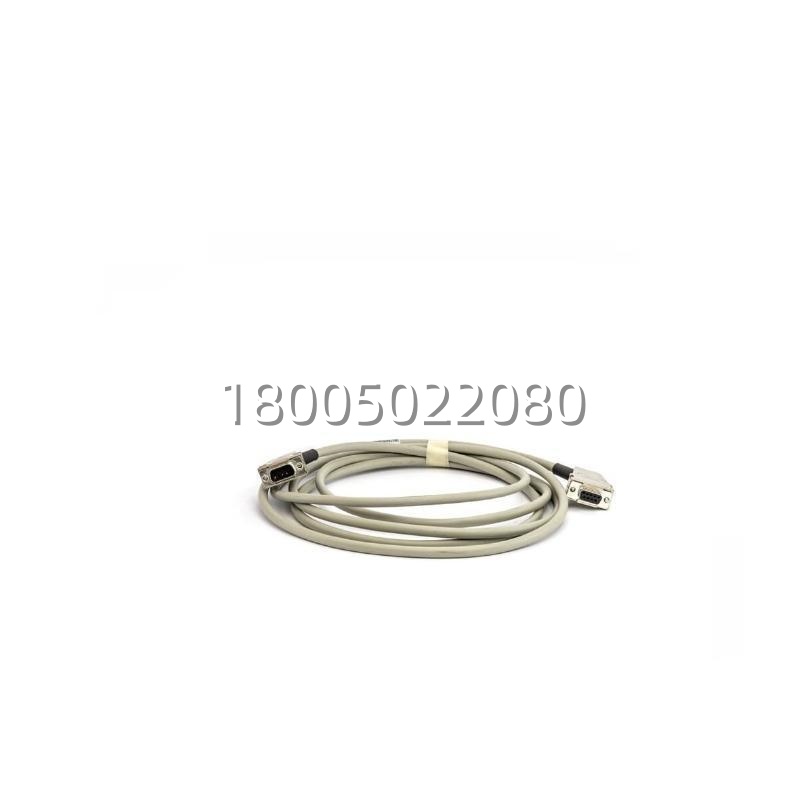

The ABB TK527V030 is a high-quality, shielded Interface Cable engineered specifically for the ABB S800 I/O system. It provides the physical connection between the S800 Termination Units (TU) mounted on DIN rails inside the control cabinet and the external field instruments located in the plant. The TK527V030 is designed with robust shielding (typically foil and braid) to protect low-level analog signals and high-speed digital data from electromagnetic interference (EMI) generated by nearby motors, VFDs, and switchgear. Its connectors are keyed and coded to prevent misalignment, ensuring a secure, vibration-resistant connection that simplifies installation and reduces commissioning time. Whether transmitting 4-20mA current loops for flow transmitters or 24V DC signals for valve solenoids, the TK527V030 guarantees reliable, error-free communication between the field and the DCS.

Application Scenarios

A natural gas processing plant was upgrading its compressor station controls using an ABB 800xA system. During commissioning, technicians encountered intermittent “Bad Quality” alarms on several pressure transmitter channels. Investigation revealed that the generic, unshielded cables used for field wiring were picking up significant noise from the compressor’s variable frequency drive (VFD), corrupting the 4-20mA signals. The project team replaced these custom-wired connections with genuine ABB TK527V030 interface cables. The TK527V030’s superior shielding and optimized impedance matching immediately eliminated the noise. The pressure readings stabilized, allowing the control loop to tune correctly and the compressor to run safely at full load. This swap prevented a potential week-long delay in plant startup and ensured the safety instrumented system (SIS) received accurate data.
