Description

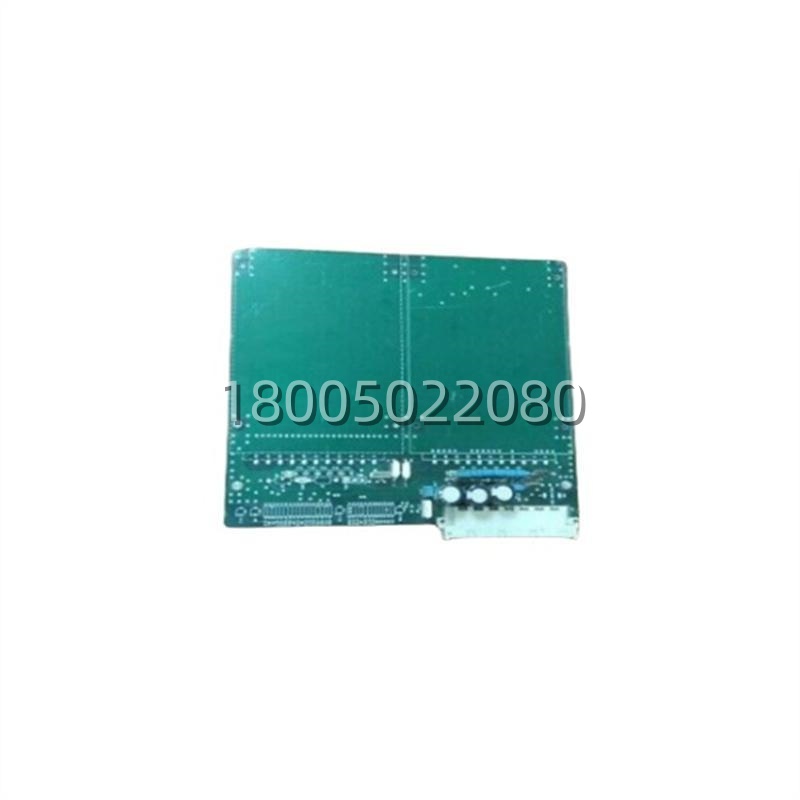

The ABB 209630R2 (identified by the board code B4LAA) is a specialized Printed Wire Assembly (PWA) serving as a critical Input/Output (I/O) or signal conditioning module within legacy ABB Distributed Control Systems (DCS) or Programmable Logic Controller (PLC) architectures. Likely part of the ABB Masterpiece, Mod 30. or early Advant OCS series, this board acts as the vital interface between field devices (such as pressure transmitters, thermocouples, valve positioners) and the central processing unit. The 209630R2 B4LAA performs essential functions including signal isolation, analog-to-digital conversion, noise filtering, and drive logic execution, ensuring that accurate process data is available for control algorithms while protecting sensitive electronics from high-voltage transients and electrical noise common in heavy industrial settings.

Application Scenarios

Consider a large thermal power plant operating with a legacy ABB DCS that has reliably managed boiler combustion and turbine control for over 25 years. Recently, the plant engineers noticed intermittent fluctuations in fuel flow readings and erratic valve positioning commands, leading to inefficient combustion and increased NOx emissions. Diagnostics pointed to aging I/O boards in the remote rack that were suffering from component degradation, resulting in signal drift and failed isolation barriers. The risk of a forced outage due to a false trip or a loss of control over critical actuators was becoming unacceptable.

In this high-stakes environment, replacing the failing units with refurbished or new-old-stock ABB 209630R2 (B4LAA) boards offered the only viable solution to avoid a multi-million dollar system-wide retrofit. The 209630R2 restored precise signal fidelity, utilizing its robust isolation circuitry to eliminate ground loops and filter out electrical noise from nearby high-power cables. Upon installation, the 209630R2 stabilized the combustion control loop, allowing the system to maintain optimal air-fuel ratios automatically. By deploying the 209630R2. the utility extended the life of their entire control system by another decade, ensuring regulatory compliance and avoiding unplanned downtime, all while saving significant capital expenditure.
