Description

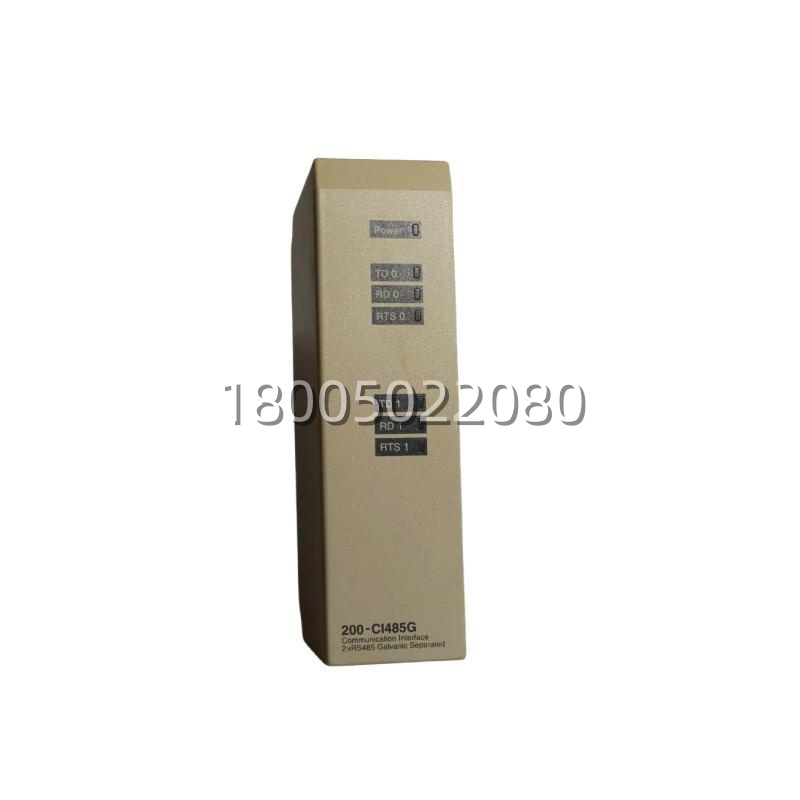

The ABB 200-CI485G (Order No. 492897601. also referenced as GJR5142800R0001 in specific regional catalogs) is a dedicated communication interface module designed for the ABB Advant Controller 250 (AC 250) and compatible legacy systems, specializing in high-speed RS485 serial connectivity. This robust module acts as a powerful gateway, enabling seamless integration of field devices such as VFDs, smart meters, and analyzers into the central control system via standard protocols like Modbus RTU and ASCII.

Application Scenarios

Imagine a water treatment facility where an aging ABB AC 250 system manages the distribution network. The plant engineers need to integrate a new series of ultrasonic flow meters and chemical dosing pumps that only communicate via RS485 Modbus RTU. The existing system lacks native ports for this density of serial devices, and adding external converters would introduce latency and potential points of failure in such a critical environment. The risk of data loss could lead to inaccurate billing or unsafe chemical levels.

In this scenario, the ABB 200-CI485G serves as the perfect solution. Installed directly into the AC 250 rack, the 200-CI485G provides a native, high-speed RS485 backbone that can poll up to 32 field devices simultaneously without burdening the main CPU. It aggregates the flow and level data and presents it to the controller as local I/O, ensuring real-time visibility and control. By deploying the 200-CI485G, the facility avoids a costly system replacement, solves the pain point of protocol incompatibility, and ensures regulatory compliance with precise, uninterrupted data logging. The 200-CI485G effectively bridges the gap between the legacy control architecture and modern field instrumentation.
