Description

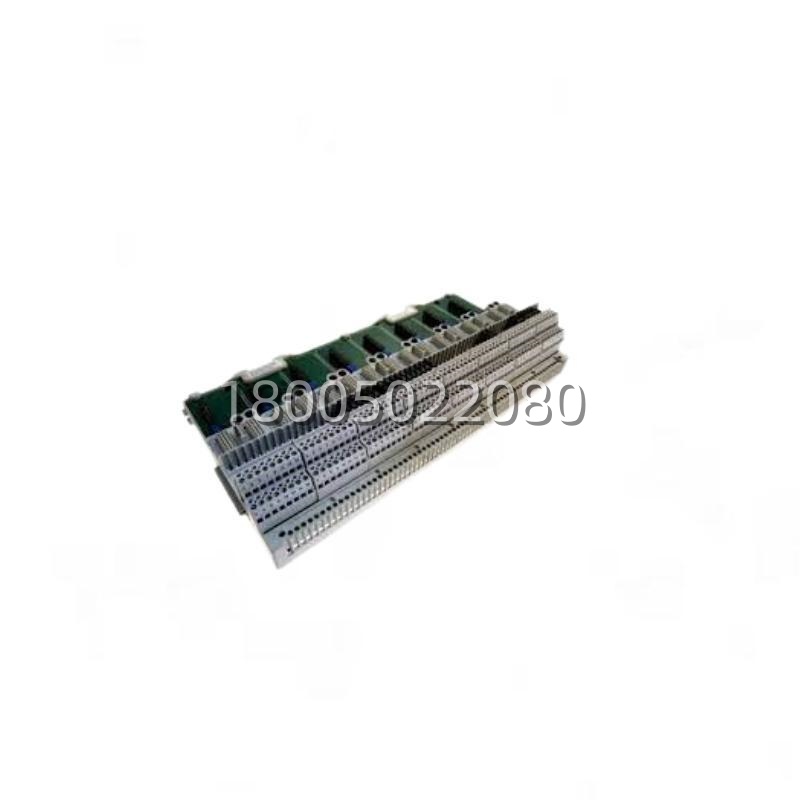

The GE 8709-CA-08 is a robust 8-slot module carrier (backplane) specifically engineered for the GE Speedtronic Mark V turbine control system and associated large DC drive applications. Serving as the critical communication backbone, this carrier provides the physical mounting structure and electrical interconnects for up to eight I/O, processor, or power supply modules within a single rack assembly. The 8709-CA-08 ensures high-speed, noise-immune data transmission between modules, supporting the Triple Modular Redundant (TMR) architecture that defines the reliability of the Mark V platform. It is an indispensable component for maintaining the structural and functional integrity of control panels in power generation, compressor stations, and heavy industrial drives.

Application Scenarios

Consider a combined cycle power plant where a Frame 7FA gas turbine is controlled by a GE Speedtronic Mark V system. During a routine inspection, technicians discover corrosion and intermittent connectivity issues on the main I/O rack’s backplane, likely caused by years of exposure to slight humidity fluctuations in the control room. This degradation poses a severe risk: a single lost communication packet between the core processors and I/O modules could trigger a false trip, shutting down the entire unit during peak demand and costing hundreds of thousands of dollars in lost generation. In this high-stakes scenario, the 8709-CA-08 is the definitive solution. During a planned outage, the maintenance team replaces the corroded carrier with a new 8709-CA-08. They carefully transfer the existing modules (TCQA, TCDA, etc.) into the new slots. Upon energization, the 8709-CA-08 restores pristine signal integrity, eliminating communication errors and ensuring the TMR voting logic functions perfectly. This proactive replacement prevents a catastrophic unplanned outage, securing the plant’s revenue and grid reliability.
