Description

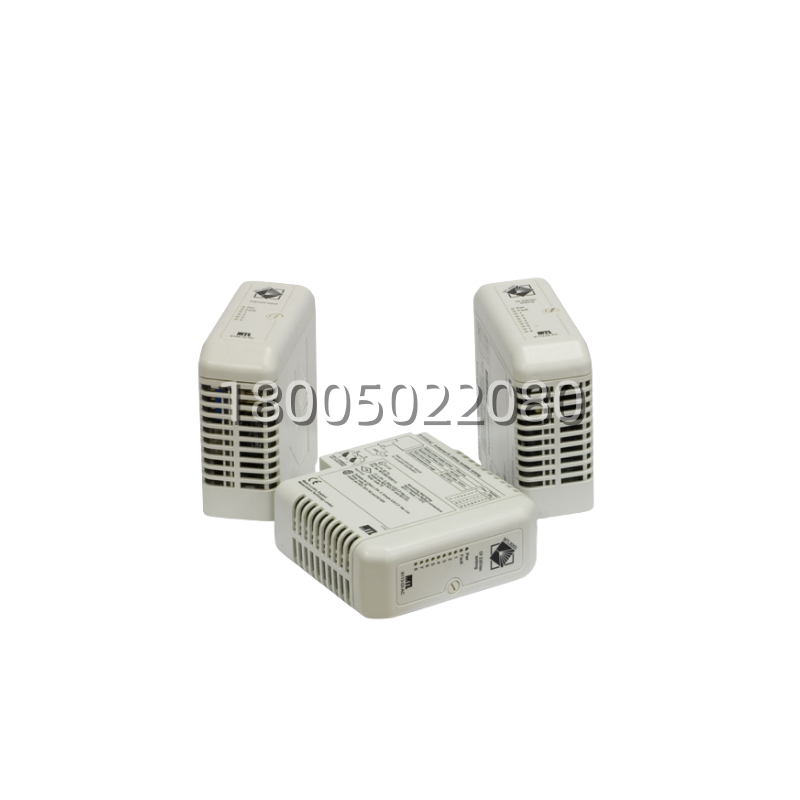

The GE 8104-AO-IP-03 is a high-precision 4-channel analog output module designed for use in GE Fanuc (now part of Emerson) PACSystems RX3i, Series 90-30. and VersaMax PLC architectures. This module converts digital control signals from the processor into precise analog current or voltage signals (typically 4-20mA, 0-20mA, or 0-10V) to drive final control elements such as control valves, variable frequency drives (VFDs), and positioners. Featuring robust isolation and comprehensive diagnostic capabilities, the 8104-AO-IP-03 ensures accurate signal transmission even in electrically noisy industrial environments, making it a critical component for maintaining process stability in power generation, water treatment, and manufacturing applications.

Application Scenarios

Consider a combined cycle power plant where the steam turbine control system relies on a legacy GE Series 90-30 PLC to manage governor valve positions. The plant operates under strict grid frequency regulations, requiring millisecond-level precision in valve actuation. One of the existing analog output channels begins to drift, causing the turbine control valve to hunt slightly, leading to efficiency losses and increased mechanical stress on the valve stem. In this critical scenario, the 8104-AO-IP-03 serves as the immediate remedy. Maintenance technicians replace the faulty module with a calibrated 8104-AO-IP-03. which instantly restores precise 4-20mA signaling to the electro-hydraulic actuators. The module’s high resolution and low noise immunity eliminate the valve hunting, allowing the turbine to return to optimal load-following performance. This rapid intervention prevents potential efficiency penalties and avoids a costly forced outage, highlighting the 8104-AO-IP-03’s vital role in sustaining the reliability of aging but critical power infrastructure.
