h2 Description:

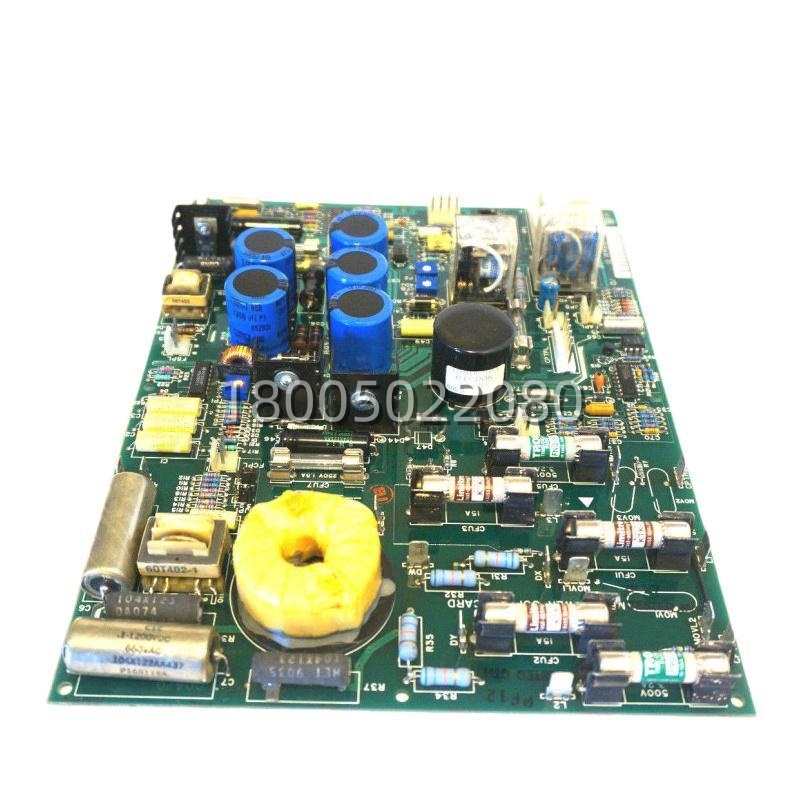

The 531X111PSHAPG3 is a multifunctional Motor Field Control (MCF) and Power Supply module manufactured by GE Fanuc (now part of GE Digital). Designed primarily for use in GE’s Series Six CNC systems and industrial DC drive applications, this card combines precise field current regulation for DC motors with an integrated local operator interface. The 531X111PSHAPG3 features a built-in 2-line, 16-character LCD screen and keypad, allowing technicians to monitor parameters, view fault codes, and adjust settings directly at the drive without needing an external PC or HMI.

h2 Application Scenarios:

In a heavy-duty steel rolling mill, operators experienced inconsistent torque output from their main drive DC motors due to aging field control circuitry. The maintenance team replaced the obsolete components with the GE 531X111PSHAPG3. Immediately after installation, the 531X111PSHAPG3 provided stable field excitation, eliminating speed fluctuations during high-load passes. The integrated LCD on the 531X111PSHAPG3 allowed engineers to fine-tune the field weakening curve in real-time, optimizing the rolling process and reducing energy consumption by 8%. Furthermore, when a minor over-voltage fault occurred months later, the local display on the 531X111PSHAPG3 instantly identified the issue, enabling a rapid reset and preventing a full line stoppage.
