Description

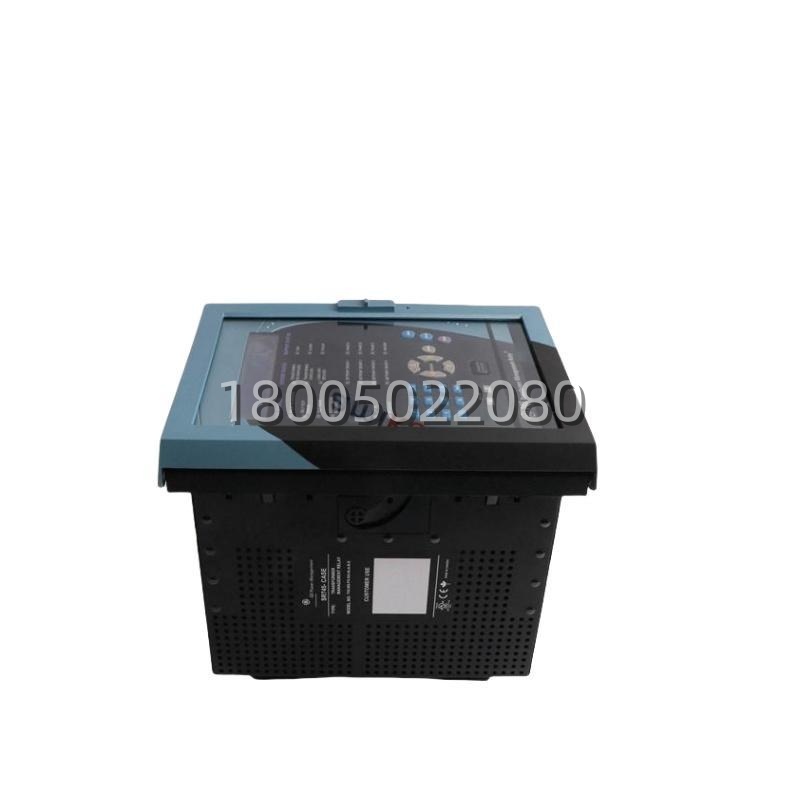

The 469-P1-HI-A20-T is a high-performance Motor Management Relay manufactured by GE (General Electric) as part of the renowned Multilin SR469 series. Designed specifically for medium and large horsepower motors, this intelligent electronic device (IED) combines advanced protection algorithms, real-time thermal modeling, and comprehensive monitoring capabilities into a single, robust unit to ensure maximum motor uptime and safety.

Application Scenarios

In a major offshore oil platform, a critical seawater injection pump motor suffered repeated nuisance trips due to unbalanced voltage conditions and ambient temperature fluctuations, threatening production targets. The installation of the 469-P1-HI-A20-T revolutionized the asset’s reliability; its advanced thermal memory model accurately tracked the motor’s heating and cooling cycles, distinguishing between harmless transient overloads and dangerous sustained faults. By leveraging the RTD (Resistance Temperature Detector) inputs featured in the -T variant, the 469-P1-HI-A20-T provided direct winding temperature monitoring, allowing operators to push the motor to its true safe limit without risk of insulation failure. For facilities managing critical infrastructure like chillers, compressors, or mill drives, the 469-P1-HI-A20-T transforms motor protection from a simple trip function into a strategic asset management tool, preventing millions in downtime costs.
