Description

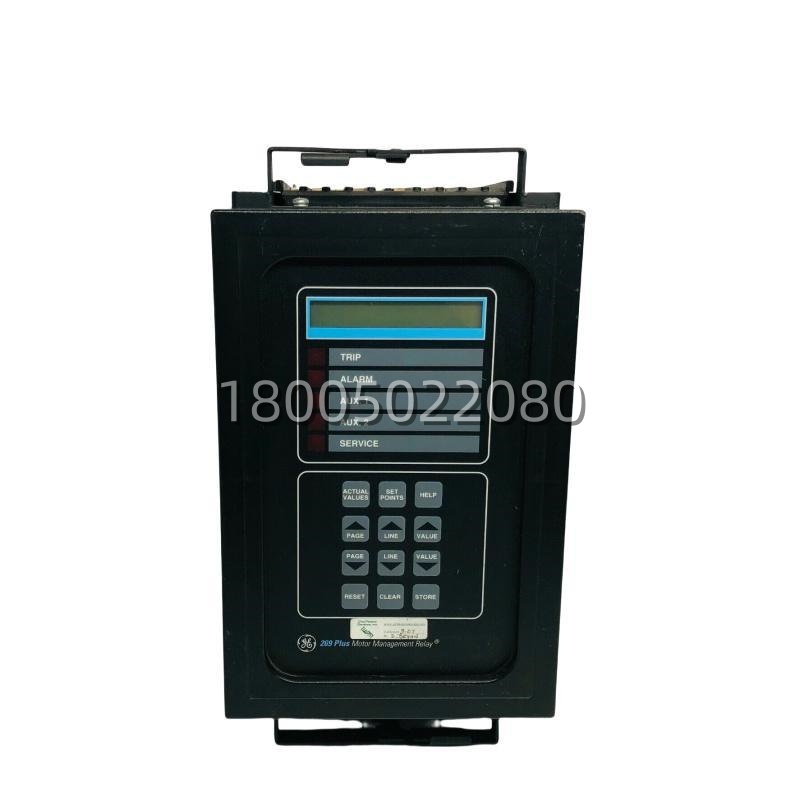

The 269Plus-D-O-278-100P-HI is a sophisticated motor management relay from GE Multilin (now part of Vertiv/GE Digital), designed to provide comprehensive protection, control, and monitoring for medium and large-sized industrial motors. This “Plus” series unit features an enhanced front-panel display (indicated by the ‘D’ code), optional communication capabilities (‘O’), and high-current input compatibility (‘HI’), making it ideal for demanding applications in mining, oil & gas, and heavy manufacturing. The 269Plus-D-O-278-100P-HI combines advanced thermal modeling, precise metering, and programmable logic to prevent costly motor failures and optimize operational efficiency.

Application Scenarios

In a remote copper mining operation in Chile, a critical 5.000 HP grinding mill motor faced repeated tripping issues due to unbalanced voltage conditions and subtle thermal overloads that legacy relays failed to detect early enough. The plant engineers replaced the outdated protection units with the GE 269Plus-D-O-278-100P-HI. Leveraging its advanced thermal capacity memory and real-time unbalance protection, the 269Plus-D-O-278-100P-HI accurately modeled the motor’s heating curve, allowing for safe operation during temporary overloads while tripping instantly on dangerous faults. The enhanced display on the 269Plus-D-O-278-100P-HI enabled local operators to view real-time current, voltage, and power data without a laptop, reducing troubleshooting time by 50% and preventing a catastrophic winding failure that would have halted production for weeks.
