Description

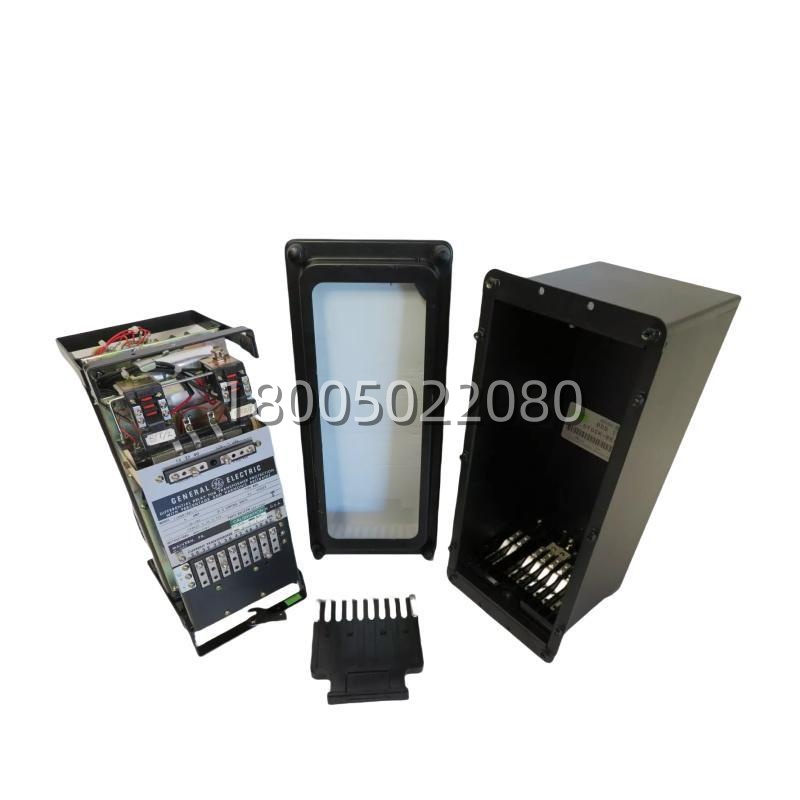

The GE 12BDD15B11A is a high-impedance differential relay specifically engineered to provide fast, selective, and secure protection for power transformers against internal faults. As part of General Electric’s renowned Type BDD series, the 12BDD15B11A utilizes advanced harmonic restraint technology to distinguish between dangerous internal faults and harmless magnetizing inrush currents, ensuring uninterrupted power delivery. This robust electromechanical or solid-state hybrid unit (depending on specific revision) remains a critical component in substations and industrial facilities worldwide, safeguarding millions of dollars in assets from catastrophic failure.

Application Scenarios

In a major regional substation serving a manufacturing hub, a 50MVA power transformer experienced a sudden energization after maintenance, generating a massive magnetizing inrush current that mimicked a fault signature. Older, less sophisticated relays might have tripped unnecessarily, causing a blackout for dozens of factories. However, the installed GE 12BDD15B11A successfully identified the high second-harmonic content characteristic of inrush and restrained the trip command, allowing the transformer to stabilize. Weeks later, when a genuine turn-to-turn fault occurred within the same transformer, the 12BDD15B11A detected the subtle differential current imbalance instantly, isolating the unit in less than 3 cycles. This precise discrimination prevented fire hazards and minimized equipment damage, highlighting the 12BDD15B11A as the guardian of grid stability and industrial continuity.
