Description:

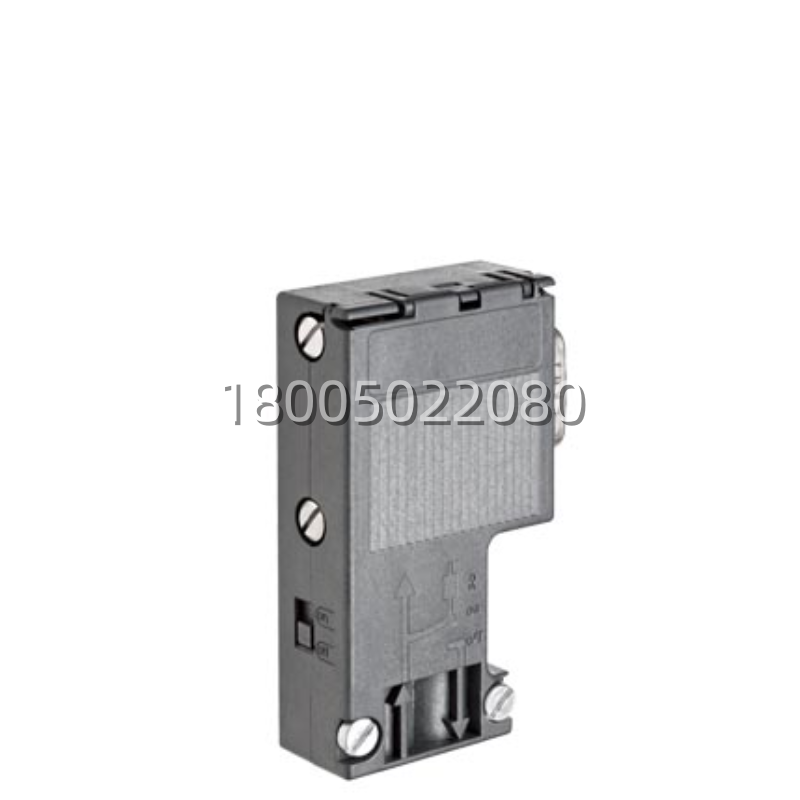

The Siemens 6ES7972-0BA12-0XA0 is a high-performance PROFIBUS DP bus connector designed specifically for SIMATIC S7-300 and ET200 distributed I/O systems. This 90° cable outlet connection plug ensures robust, interference-free data transmission at speeds up to 12 Mbit/s, featuring an integrated termination resistor for simplified network configuration.

Engineered for durability in demanding industrial settings, the 6ES7972-0BA12-0XA0 utilizes a screw-type terminal block for secure wiring and a compact Sub-D 9-pin interface that mates perfectly with standard PROFIBUS ports. Its unique design eliminates the need for external termination components, reducing installation time and potential points of failure in critical automation loops.

Application Scenarios:

In a large-scale automotive manufacturing plant, engineers faced recurring communication faults on their primary assembly line controlled by a Siemens S7-300 PLC system. The root cause was identified as unstable connections at the distributed I/O stations due to vibration-induced loosening of generic connectors. By replacing these with the specialized Siemens 6ES7972-0BA12-0XA0. the plant achieved a dramatic reduction in network downtime. The 6ES7972-0BA12-0XA0 provided the necessary mechanical stability and consistent impedance matching required for high-speed PROFIBUS communication, ensuring that robotic arms and conveyor sensors synchronized perfectly without data loss. This upgrade not only resolved the immediate pain point of production stoppages but also extended the lifecycle of the existing cabling infrastructure by providing a more reliable termination point.
