Description

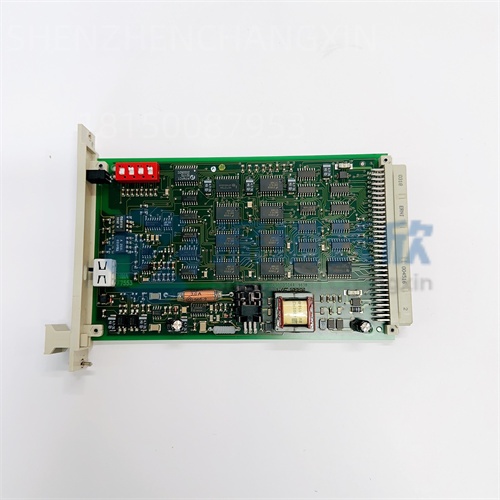

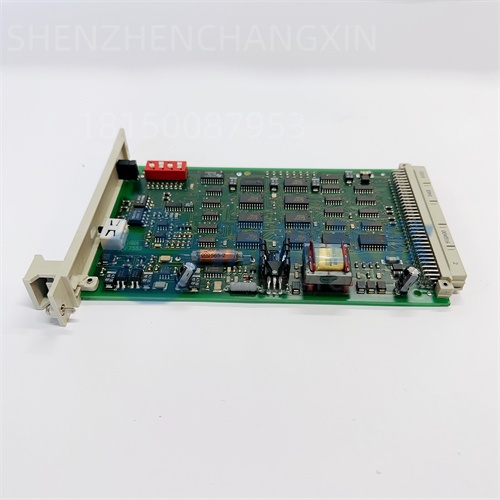

The HIMA F7553 (部件号: 984755302)​ is a high-performance, safety-related control and communication module​ manufactured by HIMA, a global leader in industrial safety automation . This module serves as a critical component within HIMA’s safety instrumented systems (SIS), such as the PES H51q platform, functioning as an I/O bus communication processor​ . It is designed to handle control pulse processing, real-time data transmission between central processing units and I/O subsystems, and supports high-availability configurations. Built to meet rigorous safety standards, it is适用于过程工业、机械自动化和安全相关的楼宇自动化等对可靠性要求极高的应用场景 .

Application Scenarios

In a large petrochemical refinery, the Safety Instrumented System (SIS) is the last line of defense against catastrophic events. This system continuously monitors critical process variables (如反应器压力、温度) and must execute emergency shutdowns within milliseconds if unsafe conditions are detected. The HIMA F7553 984755302​ module is deployed within this SIS architecture. It acts as the communication hub between the central safety controller and dozens of remote I/O racks spread across the plant, which are connected to field sensors and shutdown valves. The module’s primary role is to ensure the deterministic and fail-safe transmission​ of safety-critical signals. For instance, when a high-pressure sensor trips, the signal travels through the I/O module to the F7553. which reliably relays it to the main controller. The controller then sends the shutdown command back through the F7553​ to the appropriate actuator modules. Its built-in watchdog and self-diagnostic features​ ensure the communication path’s integrity. If the F7553​ itself develops a fault, its “watchdog cut-off” function allows it to be replaced without causing a full system shutdown , addressing the core pain points of safety integrity, system availability, and maintenance flexibility​ in critical processes.

Parameter

Based on information compiled from product descriptions and technical sources . Note: Some parameters (like dimensions) have variations across sources.

Technical Principles and Innovative Values

The HIMA F7553 984755302​ is engineered as a robust and intelligent link within a safety system, emphasizing deterministic communication, fault tolerance, and maintenance-friendly design.

Innovation Point 1: Dedicated Safety Communication with Watchdog Cut-Off.​ Unlike standard PLC communication modules, the F7553​ is designed for safety-rated data exchange. It implements rigorous protocols and cyclic redundancy checks to ensure data integrity between the central safety controller and remote I/O. A standout feature is its “watchdog cut-off” function​ . A hidden switch on the front panel allows maintenance personnel to isolate the module’s watchdog signal. This enables the replacement of a faulty F7553 module without triggering a safety system shutdown, a critical capability for maintaining process availability while ensuring safety system integrity during maintenance.

Innovation Point 2: High-Performance, Safety-Certified Processing Core.​ At its heart, the module utilizes an ARM Cortex-A9 dual-core processor​ . This provides the necessary computational power for handling real-time data traffic from multiple I/O channels and executing complex communication stack protocols simultaneously. More importantly, the entire module’s design, including this processor and its firmware, is developed and certified to meet IEC 61508 SIL 3​ requirements . This means its hardware failure rates and software development processes are rigorously assessed to ensure a very low probability of dangerous failure on demand, which is the cornerstone of any Safety Instrumented System.

Innovation Point 3: Flexible Multi-Protocol Integration and Diagnostic Visibility.​ The module supports a wide array of industrial communication protocols like PROFIBUS DP/PA and Modbus TCP​ . This allows it to act as a gateway, integrating legacy field devices (on PROFIBUS) with modern Ethernet-based safety networks seamlessly. Furthermore, it offers comprehensive diagnostic visibility​ through front-panel LEDs for status (RUN, FAULT) and a dedicated SEL indicator for I/O data access status . Combined with its power supply monitoring for the I/O sub-rack, it provides plant engineers with clear insights into the health of the entire I/O communication layer, facilitating proactive maintenance.

Application Cases and Industry Value

Case Study: Gas Pipeline Compressor Station Emergency Shutdown (ESD) System Upgrade

A critical natural gas compressor station’s existing ESD system used proprietary communication, making expansion difficult and diagnostics opaque. The station needed a modern, transparent, and highly available safety system to protect multi-million dollar turbines and ensure pipeline safety, requiring integration with both new Ethernet-based sensors and existing PROFIBUS valve controllers.

Implementation & Outcome:​ The station upgraded its ESD system using a HIMA safety controller platform. Multiple HIMA F7553 984755302 modules​ were deployed as communication processors in distributed I/O cabinets located near the compressor units. These modules connected via PROFIBUS DP​ to existing emergency shutdown valves and via Ethernet​ to new smart pressure and temperature transmitters. The dual-core processor​ efficiently managed the mixed-protocol traffic. During a routine functional safety test, a simulated fault in one F7553​ module was induced. Engineers used the watchdog cut-off switch​ to isolate the module, replaced it with a spare, and restored the link—all without interrupting the operational safety function of the running compressors. The project resulted in a system with certified SIL 3 integrity, reduced mean time to repair (MTTR)​ due to clear diagnostics and hot-swap capability, and future-proof flexibility​ for network expansion. The station manager highlighted the elimination of unplanned shutdowns for safety system maintenance​ as a major operational and financial benefit.

Related Product Combination Solutions

The HIMA F7553 984755302​ is a key component within the broader HIMA safety system ecosystem:

Central Processing Units (e.g., HIMA H51q CPU):​ The main safety controllers that execute the safety logic, to which the F7553​ modules report.

I/O Modules (e.g., Digital Input F-系列模块):​ Field interface modules for connecting sensors and actuators, which are managed by the F7553​ via the I/O bus.

I/O Subracks & Backplanes (e.g., B9302):​ The physical chassis where the F7553​ and other I/O modules are installed .

Power Supply Modules:​ Provide conditioned power to the subrack and its modules, including the F7553.

System Bus Modules (e.g., for HIMA HIQuad system):​ Modules that handle inter-controller communication in larger, redundant configurations.

Engineering Software (HIMA Safety Manager):​ The configuration and programming tool used to set up the entire safety system, including defining the communication parameters for the F7553​ modules.

Installation, Maintenance, and Full-Cycle Support

Installation:​ The HIMA F7553 984755302​ module is designed for installation in a designated slot within a HIMA I/O subrack (e.g., B9302). Ensure system power is OFF and follow electrostatic discharge (ESD) precautions. Align the module with the guide rails on the backplane and gently push it into place until it is firmly seated and the locking mechanism engages. Connect any necessary external communication cables (e.g., PROFIBUS or Ethernet) to the front ports. Crucially, set the module’s address​ using the coding switches S1-S4​ on the front panel to define the I/O bus number (cabinet number) and subrack number as per the system design .

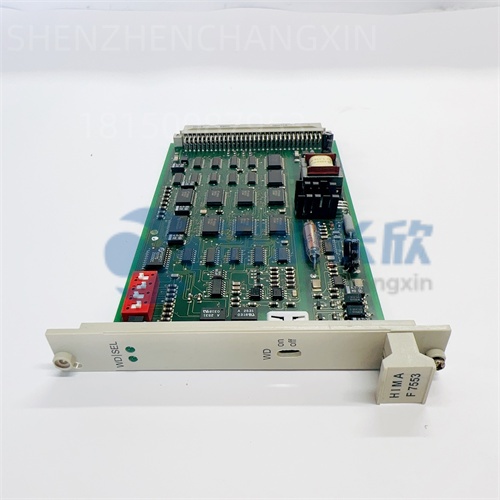

Maintenance:​ Regular maintenance involves monitoring the front-panel LEDs​ (WD, SEL, status) for any abnormal indications. The module performs continuous self-diagnostics . If a fault is indicated and module replacement is needed, utilize the watchdog cut-off function: Locate the hidden WD switch on the front panel, set it to OFF to disable the watchdog signal, then safely remove and replace the module. After installing the new module and setting its address, return the WD switch to ON. This procedure prevents a system trip during replacement. Always refer to the latest HIMA documentation for specific procedures and safety guidelines.

Full-Cycle Support:​ We provide comprehensive support for the HIMA F7553 984755302. from initial system design consultation and compatibility verification to supplying guaranteed genuine or certified refurbished modules. Our technical team can assist with configuration, integration into existing HIMA or third-party systems, troubleshooting communication issues, and planning lifecycle management strategies.
