Description:

The ABB EL3020​ is a high-performance, continuous gas analyzer manufactured by ABB, belonging to the EasyLine 3000 series. This versatile instrument utilizes Non-Dispersive Infrared (NDIR)​ technology combined with an electrochemical oxygen sensor​ to accurately measure multiple gas components simultaneously, including CO, CO₂, NO, SO₂, NH₃, H₂O, CH₄, and O₂ . Designed for reliability and ease of use, it is a critical tool for industrial process optimization, environmental emission monitoring (CEMS), and ensuring regulatory compliance.

Application Scenarios:

In a coal-fired power plant, strict environmental regulations require continuous monitoring of flue gas emissions for pollutants like SO₂, NOx, and O₂ to control acid rain precursors and optimize combustion efficiency. The ABB EL3020​ is installed in the Continuous Emission Monitoring System (CEMS) shelter. Its core value lies in its multi-component measurement capability​ within a single, compact 19-inch rack-mounted unit . By providing real-time, accurate concentrations of key gases, it directly addresses the pain points of regulatory reporting accuracy and operational efficiency. Plant operators can use the O₂ data to fine-tune the air-to-fuel ratio, reducing fuel consumption and minimizing the formation of NOx, while the SO₂ data ensures scrubber systems are operating effectively to meet emission limits.

Technical Principles and Innovative Values:

Innovation Point 1: Fusion of Dual Measurement Technologies.​ The EL3020​ integrates NDIR​ for most gases and a dedicated electrochemical sensor​ for O₂ . NDIR offers high selectivity and stability for gases with specific infrared absorption bands (like CO, CO₂), while the electrochemical cell provides fast and precise O₂ measurement at ambient temperature, which is crucial for combustion control. This hybrid approach ensures optimal performance for each target gas.

Innovation Point 2: Advanced Modular Design with AMC Controller.​ The analyzer is built around a modular concept. Different sensor modules (e.g., Uras26 for IR, Magnos206 for paramagnetic O₂) can be combined in one chassis . All modules are centrally managed by an Analyzer Module Controller (AMC), which handles signal processing, temperature/pressure compensation, and communication. Each sensor has its own Sensor Specific Interface (SSI) board​ with a unique serial number for traceability and independent diagnostics . This design offers exceptional flexibility for custom gas suites and simplifies maintenance.

Innovation Point 3: Intelligent Auto-Calibration and Comprehensive Self-Diagnostics.​ The EL3020​ features an automatic calibration function​ that can use ambient air and internal sealed reference cells for zero and span checks in many applications, reducing the need for costly calibration gases and manual intervention . Coupled with detailed, continuous self-diagnostics that monitor sensor health, component status, and gas path integrity, it provides high data availability and enables predictive maintenance, minimizing unexpected downtime.

Application Cases and Industry Value:

A large steel mill was facing challenges in accurately monitoring the complex gas composition in its coke oven gas, which is critical for process safety, energy recovery, and environmental compliance. The existing analyzers were prone to drift and required frequent manual calibration. The mill installed ABB EL3020​ analyzers configured for H₂, CH₄, CO, CO₂, and O₂. The lead process engineer reported: “The EL3020​ modules transformed our monitoring capability. The automatic calibration based on internal references has drastically reduced our operational costs and maintenance workload. The simultaneous multi-gas readings give us a real-time picture of the gas quality, allowing us to optimize the gas mixing for the boilers and heaters. Most importantly, the reliable and fast O₂ measurement has enhanced our safety systems for detecting dangerous conditions. The investment paid off not just in compliance, but in tangible energy savings and operational stability.”

Related Product Combination Solutions:

ABB Uras26 NDIR Sensor Module:​ The core infrared analyzer module used within the EL3020​ for measuring CO, CO₂, CH₄, etc. .

ABB Magnos206 Paramagnetic O₂ Sensor Module:​ An alternative, high-precision module for oxygen measurement based on the paramagnetic principle, often used in place of the electrochemical cell for specific applications .

ABB Caldos27 Thermal Conductivity (TCD) Sensor Module:​ Used for measuring gases like H₂ or He, which can be combined with other modules in the same EL3020​ chassis .

ABB EL3040 / EL3060:​ Other models in the EasyLine 3000 series with different channel capacities or form factors for varied application needs .

ABB AO2000 Series Analyzers:​ Another line of process gas analyzers from ABB, sometimes mentioned in conjunction with the EL3000 series for different performance points or legacy systems .

ABB EasyLine Configuration Tool (ECT) Software:​ The PC-based software used for remote configuration, calibration parameter setting, data logging, and detailed diagnostics of the EL3020​ .

ABB Sample Gas Conditioning Systems:​ Includes components like probes, filters, heated lines, and gas coolers/dryers that are essential for delivering a clean, representative, and conditioned sample gas to the EL3020​ for accurate analysis.

Installation, Maintenance, and Full-Cycle Support:

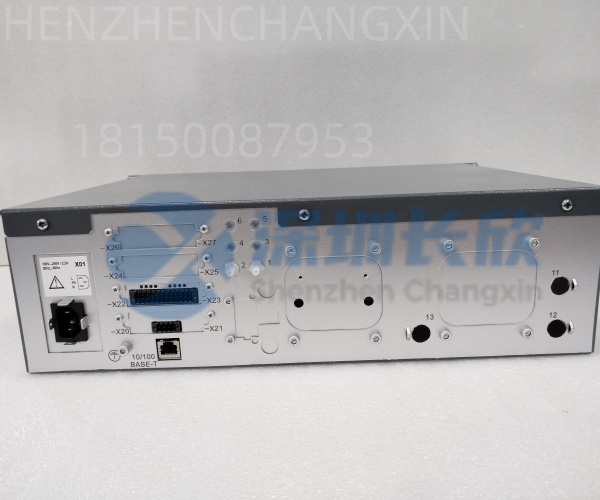

Installation of the ABB EL3020​ should be performed by qualified personnel. The analyzer is designed for 19-inch rack mounting​ . Key steps include securing the unit in a well-ventilated cabinet, connecting the 100-240VAC power supply, and carefully routing the sample gas inlet and outlet tubing using appropriate materials (e.g., PTFE for corrosive gases). Electrical connections for analog outputs (4-20mA) and communication cables (Profibus, Ethernet) must be made according to the wiring diagrams. Proper grounding is essential for signal integrity. Before startup, ensure the sample gas system is leak-free and provides a stable flow within the recommended range (e.g., 20-100 L/h) .

Routine maintenance is streamlined by the modular design. Primary tasks include periodically replacing inlet filters, checking and cleaning the sample cell if accessible, and verifying the calibration status. The electrochemical O₂ sensor typically has a service life of 1-2 years​ and requires replacement based on usage and sample gas cleanliness . Calibration can be performed manually using zero gas (e.g., N₂) and span gases, or via the automatic function if configured. The front-panel display and the ECT software provide clear diagnostic messages and status indicators to guide troubleshooting for common issues like flow errors or sensor faults.

We provide comprehensive full-cycle support for the ABB EL3020. Our service begins with application engineering to help select the optimal sensor configuration and measurement ranges for your specific gases and concentration levels. We supply 100% genuine ABB analyzers and spare parts (including sensor modules, SSI boards, and gas cells like part number 769143​ ). Our support extends to installation supervision, startup assistance, on-site or remote training for your personnel, and ongoing technical support to ensure your gas analysis system delivers reliable, compliant data throughout its lifecycle.
