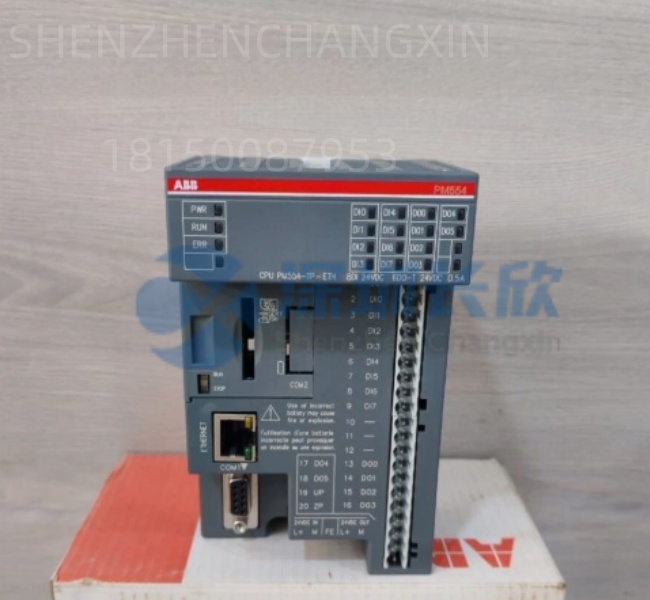

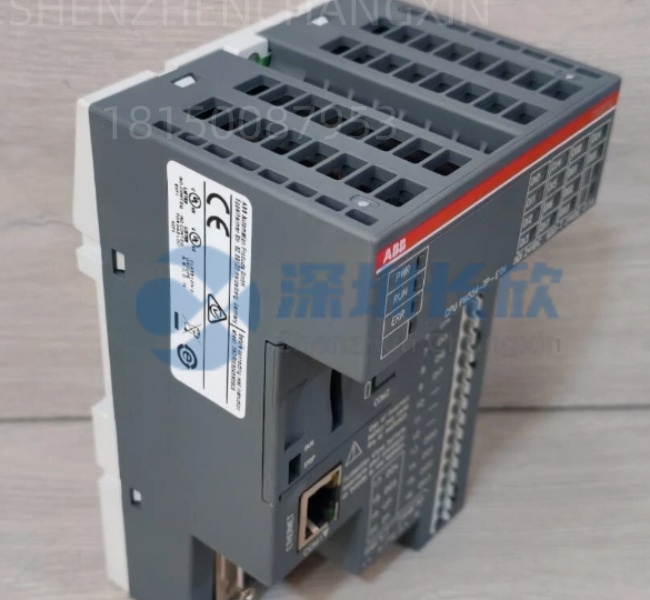

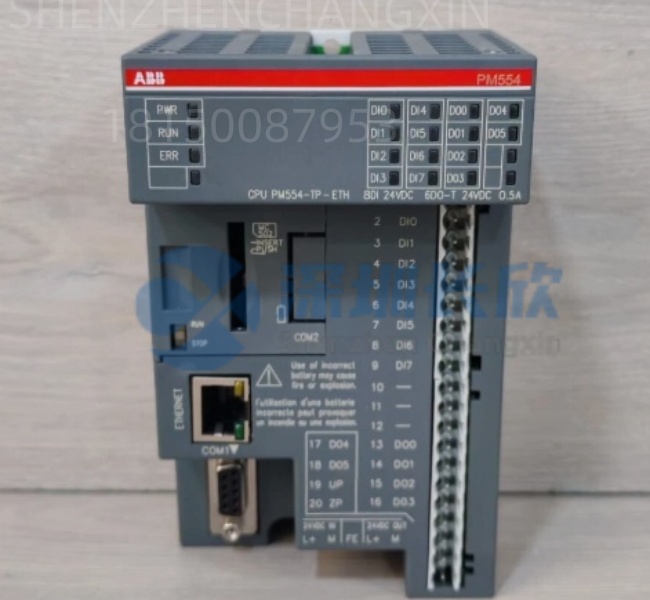

ABB 1SAP120600R0071 PM554-TP-ETH C1 CPU 128KB​ is a high-performance programmable logic controller from ABB’s AC 500 series, designed as a central processing unit for industrial automation systems. It features integrated Ethernet connectivity and robust control capabilities suitable for demanding applications across various industries .

🏭 Application Scenarios

In a municipal water treatment plant’s filtration system, the ABB PM554-TP-ETH C1 CPU​ was deployed to manage multiple filter beds and backwash cycles. The controller’s Ethernet connectivity enabled seamless integration with the plant’s SCADA system, while its 128KB memory capacity handled complex control algorithms for optimal filter operation. This implementation ensured continuous operation in a humid environment and reduced system downtime by 30% compared to the previous control system .

A packaging machinery manufacturer integrated this controller into their high-speed wrapping machines. The fast processing speed and Ethernet connectivity enabled real-time coordination of multiple axes and quick recipe changes, resulting in a 25% increase in production speed and a 40% reduction in changeover time .

💡 Technical Principles and Innovative Values

The ABB PM554-TP-ETH C1 CPU​ implements a powerful 32-bit processor architecture optimized for real-time control applications. The integrated Ethernet interface supports TCP/IP protocol, enabling seamless connectivity with HMI systems and SCADA networks. The controller’s deterministic scan cycle ensures consistent performance for time-critical control tasks .

This module features comprehensive diagnostic capabilities and robust construction for reliable operation in industrial environments. It supports online programming and monitoring, allowing for system modifications without interrupting process operations. The built-in real-time clock and data logging capabilities enable precise time-stamping of events and historical data collection for analysis .

🔗 Related Product Combination Solutions

ABB AC 500 I/O Modules​ – Digital and analog expansion units

ABB CP600 Series HMI​ – Operator interface panels

ABB Drive Modules​ – Variable frequency drives

ABB Communication Modules​ – Additional protocol support

ABB PS500 Power Supplies​ – System power units
