Description

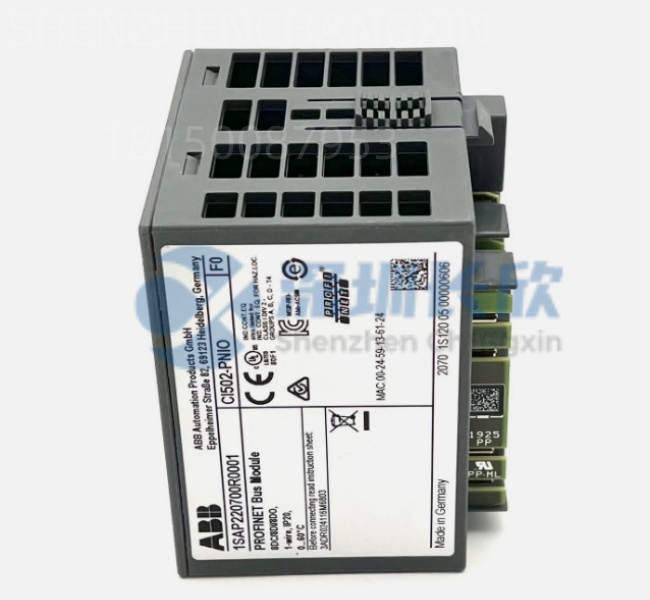

The ABB 1SAP220700R0001 CI502-PNIO is a high-performance PROFINET I/O communication module designed for the ABB AC 800M programmable automation controller platform. It enables the AC 800M CPU to act as a PROFINET IO Controller, directly connecting to and managing distributed I/O systems, variable frequency drives (VFDs), HMIs, and smart field devices from Siemens, Phoenix Contact, Turck, Lenze, and other PROFINET-certified vendors.

Supporting both Real-Time (RT) and optional Isochronous Real-Time (IRT) communication, the CI502-PNIO delivers deterministic data exchange with cycle times down to 1 ms, making it ideal for motion control, packaging lines, and process skids requiring tight synchronization.

Application Scenarios

At an automotive parts plant in Mexico, engineers needed to integrate 12 Siemens ET 200SP remote I/O stations and 8 Sinamics G120 drives into an existing ABB System 800xA architecture. By installing the ABB CI502-PNIO (1SAP220700R0001) modules in redundant AC 800M racks, they eliminated the need for protocol gateways or secondary controllers. The system achieved 2 ms PROFINET cycle times, synchronized press actuators with conveyor speed, and reduced engineering time by 40%. “The CI502-PNIO made ABB and Siemens speak the same language—natively,” said the controls manager.



Technical Principles and Innovative Values

Innovation Point 1: Integrated 2-port Ethernet switch eliminates external switches—enabling daisy-chain topologies and reducing cabinet footprint and cost.

Innovation Point 2: Full PROFINET Conformance Class B compliance ensures interoperability with all certified devices, including advanced diagnostics (e.g., cable break detection, port status).

Innovation Point 3: Native integration with Control Builder M allows drag-and-drop device configuration using GSDML files—no manual XML editing required.

Innovation Point 4: Supports Media Redundancy Protocol (MRP) and System Redundancy for zero-failover networks in critical processes like power generation or water treatment.

Application Cases and Industry Value

In a German food processing facility, the CI502-PNIO connected ABB AC 800M to 20+ Turck TBEN-L PROFINET I/O blocks on filling machines. Real-time diagnostics identified a failing solenoid valve 3 days before failure—triggering predictive maintenance and avoiding a 6-hour line stoppage.

In a U.S. wastewater plant, the module linked ABB controllers to Siemens S7-1500 remote racks over a 500-meter fiber-optic PROFINET ring. Despite lightning-induced surges, the CI502-PNIO’s robust isolation and MRP recovery ensured 99.99% network uptime over 18 months.

Related Product Combination Solutions

ABB UFC762AE101 (3BHE006412R0101): 8-slot I/O baseplate—required for mounting CI502-PNIO.

ABB PM864A / PM865: AC 800M CPUs—must be used with CI502-PNIO for PROFINET control.

Siemens ET 200SP / IM 155-6: Common PROFINET I/O systems integrated via CI502-PNIO.

ABB ACH580 / ACS880 Drives: Can be controlled via PROFINET when equipped with NPNX-01 adapter.

Control Builder M R6+: Engineering software—essential for GSDML import and network configuration.

ABB ENP864: For parallel Modbus TCP or OPC UA—complements CI502-PNIO in hybrid networks.

Phoenix Contact FL SWITCH 2000: External managed switch—for large-scale PROFINET topologies beyond daisy-chain limits.

Installation, Maintenance, and Full-Cycle Support

Install the CI502-PNIO into a compatible AC 800M baseplate. Connect field devices via shielded Cat5e cables (≤100 m per segment). In Control Builder M, import GSDML files for each PROFINET device, assign device names via DCP, and map I/O to controller tags. Enable MRP if using a ring topology.

Maintenance includes monitoring link LEDs and using PROFINET Diagnostics in Control Builder to view device status, alarms, and topology maps. Firmware updates are delivered via the engineering tool—no physical access required.

We supply every ABB 1SAP220700R0001 CI502-PNIO as 100% new, factory-sealed stock from authorized ABB/HITACHI ENERGY channels—with original packaging, traceability, and compliance documentation. Our team provides:

Free GSDML compatibility validation

Network topology design support

24/7 technical backup for commissioning

If any unit exhibits port failure, cyclic communication loss, or firmware errors, we offer immediate replacement—because in modern automation, seamless Ethernet integration is non-negotiable.
