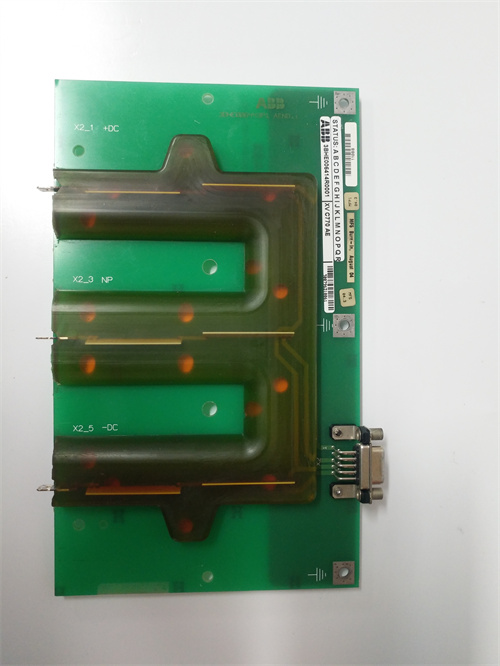

ABB XVC770AE 3BHE006414R0001​ is an industrial control module designed for high-precision signal acquisition and control in demanding automation environments. It integrates advanced signal processing, communication, and diagnostic functions to ensure reliable performance in complex industrial systems.

📘 Product Overview

The ABB XVC770AE 3BHE006414R0001​ is engineered for ABB’s S800 I/O platform and Advant OCS or 800xA distributed control systems. It serves as a high-precision interface for analog signals—such as voltage, current, temperature, and pressure—from field sensors and transmitters. The module combines signal conditioning, data acquisition, and protocol conversion in a single unit, enabling seamless integration between field devices and higher-level controllers. Its robust design ensures stable operation in harsh conditions, including wide temperature ranges and electrically noisy environments.

⚙️ Technical Principles and Innovations

High-Precision Signal Acquisition: Utilizing 16-bit analog-to-digital conversion and automatic lead resistance compensation, the module achieves metrological-grade accuracy (±0.05%). This is critical for applications like generator bearing monitoring or chemical reactor control, where minute signal variations impact safety and efficiency.

Dual Isolation and Noise Immunity: With channel-to-channel isolation (500V) and field-to-system isolation (1500V), the module effectively suppresses electromagnetic interference (EMI). Active noise cancellation reduces 50/60 Hz interference by 80dB, ensuring signal integrity in substations or high-vibration settings.

Multi-Protocol Communication: Supporting PROFIBUS, Modbus, and HART, the module acts as a communication gateway. HART pass-through allows digital diagnostics and configuration of smart field devices without disrupting control loops.

Integrated Diagnostics and Predictive Maintenance: Onboard health monitoring detects open circuits, shorts, and signal degradation. Predictive algorithms alert operators to calibration drift, reducing unplanned downtime.

🏭 Application Scenarios and Industry Value

Power Generation: In hydroelectric plants, the module monitors generator vibration sensors with 0.1mV resolution, detecting micro-movements before mechanical failures. Its surge immunity (6kV/3kA) protects against lightning-induced transients.

Chemical Processing: For chemical reactor control, the module acquires differential voltage from corrosion probes. Active shield driving neutralizes cable capacitance over 500m runs, maintaining ±0.05% accuracy in explosive atmospheres (ATEX certified).

Steel Manufacturing: A large steel plant used the module to stabilize voltage in 1.2MW diesel generator sets, reducing fluctuations from ±2% to ±0.2% during load surges. This eliminated production disruptions and cut NOx emissions by 3%.

🔗 Related Product Combinations

ABB XVC768AE: 8-channel thermocouple/RTD input module for temperature monitoring.

ABB CI854A-1: PROFIBUS communication interface to enhance connectivity with ABB AC800M controllers.

ABB PM865: AC 800M controller processor for centralized control logic.

ABB AI810: High-precision analog input module for expanding signal acquisition channels.

Bently Nevada 330180-91-05: Vibration sensor for integration with the XVC770AE in generator monitoring systems.

🛠️ Installation, Maintenance, and Support

Installation: Mount the module on an S800 carrier or DIN rail using ESD-safe procedures. Ensure proper shielding and grounding—torque fasteners to 0.8 N·m. Verify power supply (24V DC) and protocol settings before energizing.

Maintenance: Perform annual calibration via ABB Calibration Manager. Monitor the “Channel Health Index” in Control Builder software; values below 90% require inspection. Replace the module after 100.000 power cycles or 15 years of service.

Support: Suppliers offer 18-month warranties, technical hotlines, and on-site services. Firmware updates are available through the ABB Asset Vista portal.

💎 Conclusion

The ABB XVC770AE 3BHE006414R0001​ delivers high precision, robustness, and versatile integration for critical industrial applications. Its advanced signal processing, safety certifications, and diagnostic capabilities make it ideal for power generation, chemical processing, and heavy industries requiring reliable data acquisition and control.
