Description

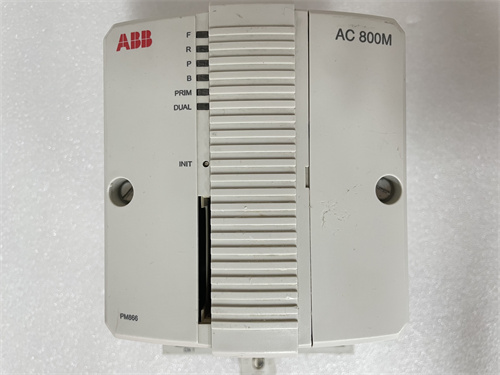

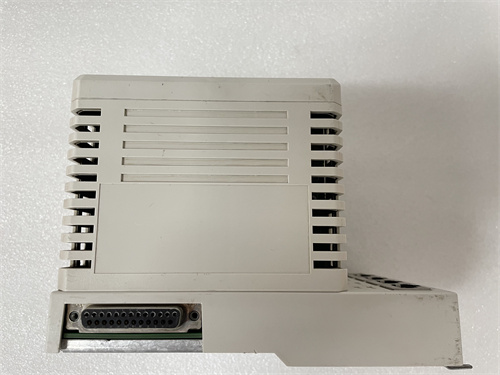

The ABB PM866K01 is a high-reliability central processing unit(CPU)module from ABB’s AC 800M programmable logic controller(PLC)family,engineered for demanding continuous-process industries.As the computational backbone of ABB’s automation architecture,it executes complex control logic,safety interlocks,and communication tasks with deterministic performance—even under extreme electrical or thermal stress.

Designed for seamless integration into ABB System 800xA or standalone applications,the ABB PM866K01 supports redundant configurations,extensive I/O connectivity,and advanced programming standards,making it a trusted choice for power generation,refining,mining,and water treatment facilities worldwide.

Application Scenarios

At a major LNG export terminal in Qatar,unplanned shutdowns due to single-point CPU failures were costing millions in lost throughput.The facility replaced aging controllers with dual-redundant ABB PM866K01 units across all critical compression and flare systems.Within six months,system availability rose to 99.98%,and during a scheduled maintenance window,engineers performed a live CPU replacement without interrupting liquefaction operations—something previously deemed impossible.For this site,the ABB PM866K01 wasn’t just hardware;it was the cornerstone of operational continuity in one of the world’s most capital-intensive industrial environments.

Parameter

Main Parameters Value/Description

Product Model PM866K01

Manufacturer ABB/Hitachi Energy

Product Category Redundant PLC CPU Controller(AC 800M Series)

Processor 32-bit RISC,dual-core capable(in redundant mode)

User Program Memory 8 MB Flash(non-volatile)

Data Memory 4 MB RAM(with battery backup option)

Scan Cycle Time As low as 1 ms for 1,000 Boolean instructions

Communication Interfaces 2×10/100 Mbps Ethernet(Modbus TCP,IEC 61850,OPC UA),1×RS-485(Profibus DP optional)

Redundancy Support Yes–Synchronized hot standby with<10 ms failover

I/O Capacity Up to 16,000 digital+8,000 analog points per CPU

Mounting Method DIN rail in AC 800M rack(with redundant backplane)

Operating Temperature-25°C to+70°C(extended range with derating)

Certifications IEC 61508 SIL 3(in certified safety applications),CE,UL 61010-2-201

Technical Principles and Innovative Values

Innovation Point 1:True Hot-Swap Redundancy–The ABB PM866K01 maintains full state synchronization between primary and standby units via a dedicated fiber-optic link,enabling zero-interruption failover—critical for 24/7 processes like nuclear cooling or pipeline pumping.

Innovation Point 2:Unified Engineering with Control Builder M–Programs written in IEC 61131-3(LD,FBD,ST,SFC)run identically on ABB PM866K01 and AC 800PEC or safety controllers,streamlining development and reducing validation effort.

Innovation Point 3:Embedded Cyber Resilience–Built-in firewall,user role management,and secure firmware signing protect against unauthorized access—meeting NERC CIP and ISO 27001 requirements out of the box.

Innovation Point 4:Deterministic Performance Under Load–Even at 90%CPU utilization,scan jitter remains<5%,ensuring time-critical sequences(e.g.,turbine trip logic)execute predictably.

Innovation Point 5:Seamless 800xA Integration–Direct asset model mapping allows operators to monitor CPU health,program versions,and I/O status from the same System 800xA HMI used for process control.

Application Cases and Industry Value

A European nuclear power plant upgraded its auxiliary feedwater system to use ABB PM866K01 controllers in a 1oo2D(one-out-of-two-degraded)safety configuration.During a simulated station blackout,the system maintained precise pump sequencing and valve timing within 2 ms tolerance—exceeding regulatory requirements.Regulators cited the ABB PM866K01’s SIL 3 certification and audit trail capabilities as key factors in approving the modernization.

In Chile,a copper mine deployed ABB PM866K01 units to automate its dewatering pumps across three remote pits.With satellite-based Ethernet links and rugged enclosures,the controllers operated reliably at 3,800 meters altitude and-15°C winters.Maintenance visits dropped by 70%,and water recovery efficiency improved by 18%due to adaptive pump staging logic executed on the ABB PM866K01.
