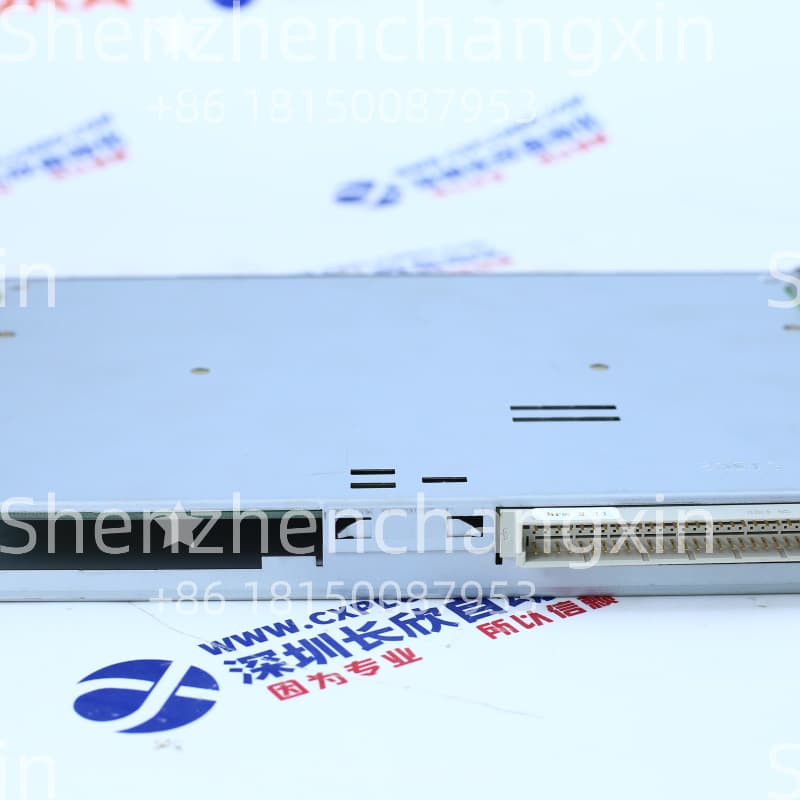

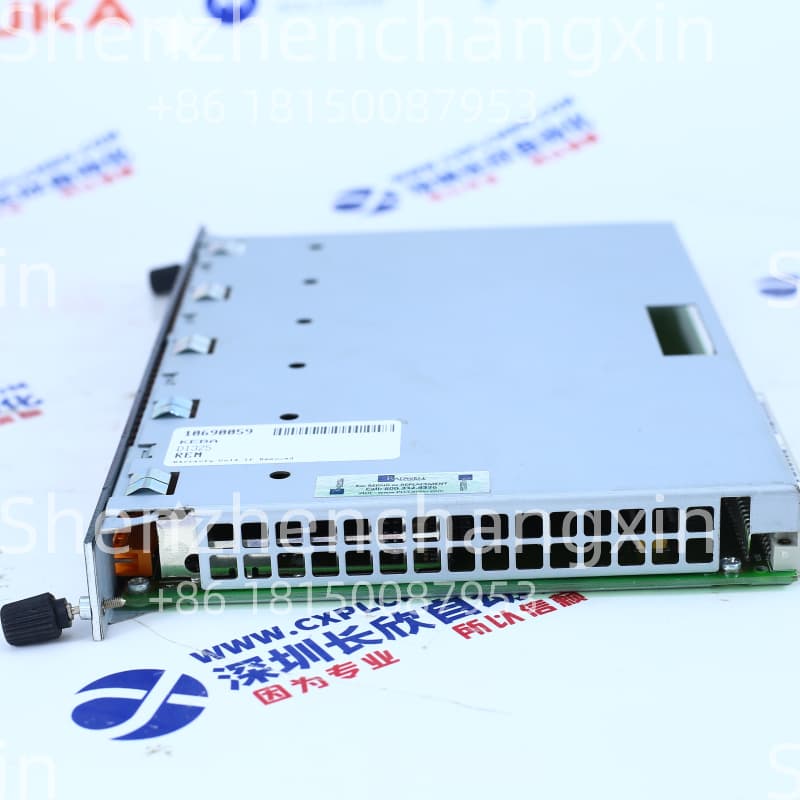

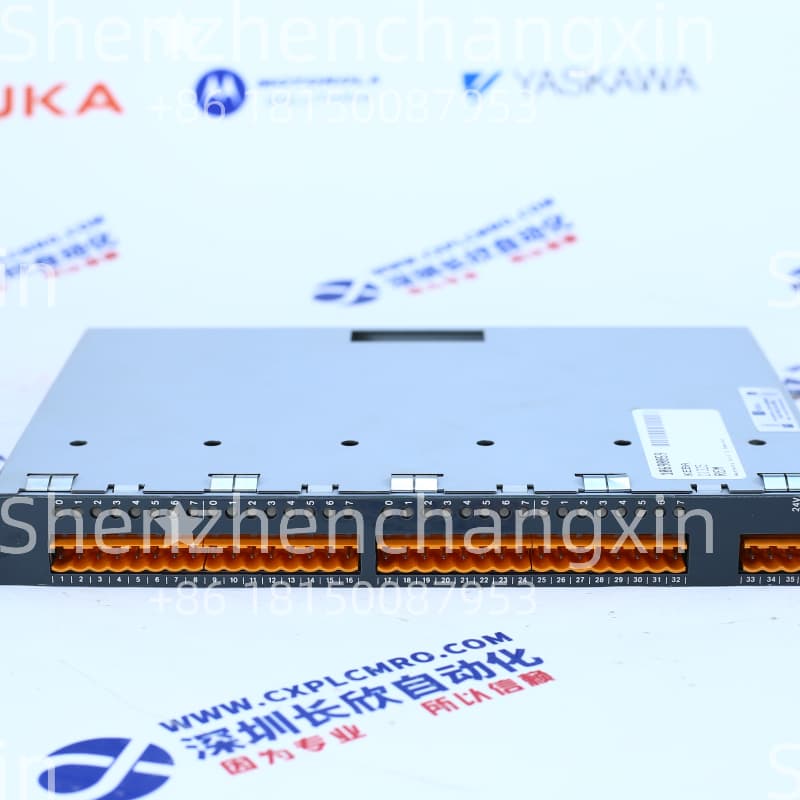

Product Overview

The KEBA DI325 is a 32-channel digital input(DI)module designed for use with KEBA’s KeMotion and KeControl automation systems,particularly in high-performance industrial applications such as robotics,injection molding machines,packaging lines,and CNC machinery.This module expands the I/O capacity of KEBA controllers(e.g.,CU313,CU323)by providing a high-density interface for 24 V DC binary signals from field devices like limit switches,proximity sensors,pushbuttons,relay contacts,and PLC outputs.

As part of KEBA’s modular EtherCAT-based I/O system,the DI325 connects directly to the controller’s EtherCAT network,enabling deterministic,real-time data exchange with cycle times as low as 100µs.Its compact design(typically 60 mm wide)allows for space-efficient cabinet layouts,while robust industrial construction ensures reliable operation in electrically noisy or high-vibration environments.

Technical Specifications

Parameter Value

Manufacturer KEBA AG(Austria)

Model Number DI325

Module Type 32-Channel Digital Input Module

Compatible Systems KEBA KeMotion/KeControl(with EtherCAT master,e.g.,CU313,CU323)

Bus Interface EtherCAT(Beckhoff-compatible)–daisy-chainable

Number of Inputs 32(grouped in 4 x 8 channels)

Input Voltage 24 V DC(nominal),±10%tolerance

Input Type Sinking(NPN-compatible)–current flows into the module

Input Current(at 24 V)~3.5 mA per channel

“High”(ON)Threshold≥15 V DC

“Low”(OFF)Threshold≤5 V DC

Input Filtering Adjustable via software(default:~1 ms to suppress contact bounce)

Isolation

•Functional isolation between field and bus(500 V DC)

•No channel-to-channel isolation(common ground per group)

Power Supply

•Field side:External 24 V DC(via separate L+/M terminals)

•Bus side:Powered via EtherCAT cable(no auxiliary power needed if within spec)

LED Indicators

•1x RUN/ERR(module status)

•4x Group LEDs(each for 8 channels)

Housing IP20,DIN rail mount(TS-35),60 mm width

Operating Temperature 0°C to+55°C

Certifications CE,UL,cUL,EN 61131-2

⚠️Wiring Note:The DI325 uses sinking inputs,meaning field devices must source current(e.g.,PNP sensors or relay contacts tied to 24 V).Do not connect NPN sensors directly without external pull-up.

Key Features&Advantages

✅High Channel Density:

32 inputs in a single 60 mm module reduce cabinet space and wiring costs—ideal for machines with many limit switches or status signals.

✅Real-Time EtherCAT Integration:

Synchronizes with motion and safety tasks in the KEBA controller;supports Distributed Clocks(DC)for sub-microsecond jitter.

✅Configurable Input Filtering:

Adjustable debounce time prevents false triggers from mechanical switch bounce or electrical noise.

✅Hot-Swap Ready:

Can be replaced during operation when used with KEBA controllers supporting EtherCAT Hot Connect(requires proper topology).

✅Seamless Engineering in KeStudio:

Auto-detected in KeStudio(CODESYS-based);channels appear as%I variables(e.g.,DI325_Ch01)for immediate use in PLC logic.

Typical Applications

Injection Molding Machines:Mold open/close,ejector forward/back,core pull status.

Robotic Workcells:Safety gate interlocks,part presence sensors,tool-in-place confirmation.

Conveyor Systems:Photoeye detection,jam switches,zone occupancy.

CNC Machines:Door closed,chuck clamped,tool magazine position.

Packaging Lines:Web break detection,label present,fill level OK.

Related KEBA I/O Modules

Model Description

DO325 32-channel digital output module(sourcing,0.5 A/channel)

DI125 16-channel digital input(higher isolation,faster response)

AI315 8-channel analog input(±10 V/0–20 mA)

AO315 4-channel analog output

EM310 Compact 16DI/16DO integrated module

Installation&Wiring Guidelines

Field Power:Connect an external 24 V DC supply to L+and M terminals on the module—do not rely on controller supply for large sensor banks.

Sensor Type:Use PNP(sourcing)sensors or dry contacts with external 24 V pull-up.

Cable Routing:Keep signal cables away from power/motor lines;use shielded twisted pairs for long runs(>10 m).

Grounding:Connect cable shield to mounting rail or dedicated ground terminal—not to signal ground(M).

Addressing:No DIP switches—address assigned automatically via EtherCAT topology in KeStudio.

Diagnostics&Troubleshooting

All LEDs off:Check EtherCAT connection and 24 V field supply.

RUN LED blinking:Module not configured or mismatched firmware.

Group LED on but no logic response:Verify input filtering settings or check for floating inputs.

Intermittent signals:Increase input filter time or inspect sensor wiring for loose connections.

Use KeStudio’s Online Diagnostics to monitor live input states and error counters.

Product Guarantee

Every KEBA DI325 we supply is 100%genuine,sourced from KEBA-authorized distribution or certified surplus inventory.Each unit undergoes functional testing—including all 32 channels,EtherCAT communication,and LED indicators—and is backed by a 12-month warranty.We provide terminal diagrams,GSDML files for EtherCAT configuration,and compatibility verification with your KEBA controller model.
