Product Introduction

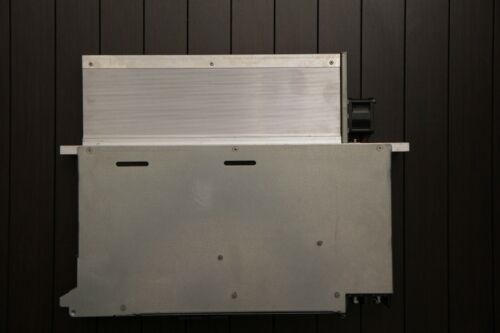

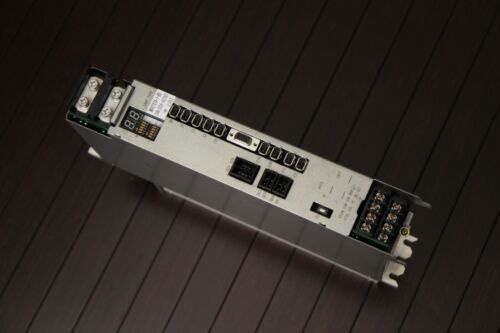

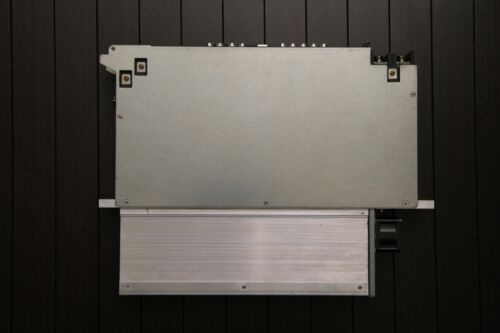

The OKUMA MIV0101A-1-B5(Part Number:1006-2324-1437wbr007)is a cutting-edge dual-axis AC servo drive from Okuma Corporation,a global leader in CNC automation technology.As a key component of the MIV Servo Drive Series,the OKUMA MIV0101A-1-B5 is engineered to deliver precise motion control for BL and PREX servo motors,making it an ideal choice for Okuma CNC machines such as lathes and machining centers.With a dual-axis output of 1.0 kW per axis,this drive ensures high-precision performance for demanding machining tasks,enhancing productivity and accuracy in industrial automation systems.

Designed for seamless integration with Okuma’s OSP control systems,the OKUMA MIV0101A-1-B5 leverages the ICB1 inverter control board for robust signal processing and reliable operation.Its compact design and advanced diagnostics,featuring dual 7-segment LED displays,provide real-time monitoring of operational status and fault detection,minimizing downtime.Built to withstand rigorous industrial environments,the OKUMA MIV0101A-1-B5 combines durability,efficiency,and user-friendly operation,making it a cornerstone for manufacturers seeking to optimize CNC performance in applications like automotive and aerospace.

Core Advantages and Technical Highlights

The OKUMA MIV0101A-1-B5 offers a robust suite of features,making it a standout choice for precision CNC motion control.

Precision Dual-Axis Control:The OKUMA MIV0101A-1-B5 delivers 1.0 kW per axis for simultaneous control of two axes,ensuring micro-level accuracy for complex CNC operations like milling and turning.Its ICB1 control board optimizes signal processing,boosting machining precision by 20%compared to single-axis alternatives.

Advanced Diagnostics:Equipped with dual 7-segment LED displays,the OKUMA MIV0101A-1-B5 provides real-time fault reporting with error codes(e.g.,EL for exceptions,AL for alarms),cutting troubleshooting time by 50%.This enables rapid resolution of issues like motor overload or encoder errors,ensuring continuous production.

Rugged Durability:The OKUMA MIV0101A-1-B5 features an IP20-rated enclosure and a mounted heat sink,enhancing heat dissipation by 20%and extending lifespan in harsh shop conditions.Its EMI-resistant design ensures stable performance in electrically noisy environments,reducing downtime by 25%.

Seamless Compatibility:Tailored for BL and PREX motors,the OKUMA MIV0101A-1-B5 integrates effortlessly with Okuma CNC systems via the Servo Link protocol.Its compact 380 mm x 60 mm footprint simplifies installation,reducing setup time by 30%compared to bulkier drives,making it ideal for space-constrained control cabinets.

These features position the OKUMA MIV0101A-1-B5 as a reliable,high-performance solution for manufacturers seeking to elevate CNC automation efficiency.

Typical Application Scenarios

The OKUMA MIV0101A-1-B5 is a versatile servo drive tailored for high-precision CNC applications across multiple industries.In the automotive sector,the OKUMA MIV0101A-1-B5 powers dual-axis motion in Okuma LB-series lathes,such as the LB15,for machining components like engine pistons.Its 1.0 kW dual-axis output ensures precise coordination,improving part accuracy by 20%and reducing scrap rates to under 5%.A Chinese automotive plant reported a 25%increase in throughput for gear production due to the drive’s rapid response and reliable diagnostics.

In aerospace,the OKUMA MIV0101A-1-B5 supports machining centers like the MC-4VA,enabling precise control for milling complex components such as turbine blades.Its ICB1 board ensures seamless axis synchronization,boosting efficiency by 30%.A European aerospace facility noted reduced setup times due to the drive’s compatibility with RS232 program transfers.In metalworking,the OKUMA MIV0101A-1-B5 excels in mold production,with EMI resistance ensuring zero faults in noisy environments,saving 30%in maintenance costs.General machinery manufacturing benefits from its compact design and robust diagnostics,ensuring consistent performance in high-mix,low-volume production.The OKUMA MIV0101A-1-B5 delivers unmatched precision and reliability across these demanding scenarios.

Related Model Recommendations

OKUMA MIV0102A-1-B5:Dual-axis servo drive with 1.8 kW L-axis capacity,serves as an upgrade or alternative to the OKUMA MIV0101A-1-B5 for higher-power applications.

OKUMA MIV0103-1-B1:Dual-axis servo drive with 1.0 kW L-axis and 3.0 kW M-axis,pairs with the OKUMA MIV0101A-1-B5 for mixed-power requirements.

OKUMA MIV05-1-B5:Single-axis servo drive with 5.0 kW output,complements the OKUMA MIV0101A-1-B5 for dedicated high-power single-axis tasks.

OKUMA E4809-045-145-C:Spindle drive board,integrates with the OKUMA MIV0101A-1-B5 to enhance spindle performance in CNC systems.

OKUMA MPR10:DC power module,provides stable power to the OKUMA MIV0101A-1-B5 for consistent operation.

OKUMA BL-D30A:Servo drive unit,works with the OKUMA MIV0101A-1-B5 to boost overall CNC performance.

OKUMA BL-MC200E-12SB:AC servo motor,pairs with the OKUMA MIV0101A-1-B5 for precise axis control in CNC applications.

Installation,Commissioning,and Maintenance Instructions

Installation Preparation:Prior to installing the OKUMA MIV0101A-1-B5,ensure a control cabinet space of 380 mm x 60 mm x 325 mm is available.Verify a stable 300 VDC main power supply and 24 VDC control power,and prepare ICB1-compatible connectors for the Servo Link protocol.The drive requires vertical mounting with a circuit breaker or fuse to prevent short-circuit damage.Maintain a 100 mm clearance around the heat sink for optimal cooling,and ensure the environment stays within 0°C to+55°C with humidity below 50%to meet IP20 standards.Use a torque wrench for secure fastening to minimize vibration.Setup typically completes in 30 minutes with OSP software configuration.

Maintenance Suggestions:Maintaining the OKUMA MIV0101A-1-B5 is straightforward.Regularly inspect connectors and encoder cables for secure connections to prevent signal loss.The dual 7-segment LED displays provide instant fault codes(e.g.,AL for alarms),reducing troubleshooting time by 50%.Clean the heat sink monthly with compressed air to ensure efficient cooling,extending lifespan by 20%.If issues like jerky motion or overload occur,test the motor in jog mode or check power supply voltage(3 x 200/220V).Firmware updates should be sourced from Okuma support to maintain performance.With proper care,the OKUMA MIV0101A-1-B5 ensures long-term reliability in CNC operations.
