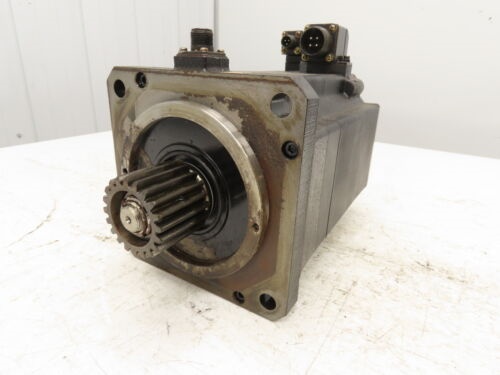

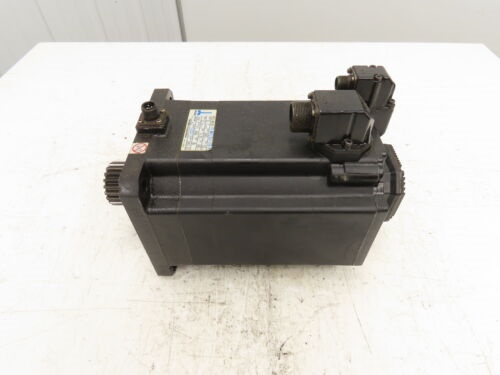

In the field of precision manufacturing,the performance of servo motor as the core actuator of CNC machine tools directly affects the machining efficiency and product quality.Okuma PX-MAF230J-3TBwbr-A AC servo motor has become the preferred configuration for mold processing,medical equipment manufacturing and other scenarios with its unique 0.7kW power,85V three-phase power supply,300RPM low-speed and high torque characteristics,and accurate feedback from ER-JF-7200D high-resolution encoder.This article will deeply analyze the core value of this product from multiple dimensions such as technical parameters,application scenarios,industry cases,maintenance strategies and development trends.

I.Technical characteristics:the combination of accurate control and high performance

Okuma PX-MAF230J-3TBwbr-A servo motor adopts a modular design,and its technical highlights can be summarized as follows:

Low speed and high torque output

The rated speed of the motor is only 300RPM,but by optimizing the electromagnetic design and heat dissipation structure,its continuous torque can reach 1.2N·m,and the peak torque can be up to 2.4N·m.This characteristic makes it perform well in low-speed cutting,deep hole machining and other scenarios.For example,in mold cavity finishing,it can achieve a feeding accuracy of 0.01mm,while avoiding surface roughness caused by high-speed vibration.

High-resolution encoder integration

The supporting ER-JF-7200D absolute value encoder has a resolution of up to 2500 lines/turn,supports single-turn 48-bit and multi-turn 16-bit coding.Combined with Okuma’s original spindle interface control board,it can achieve positioning accuracy of±0.001°.In five-axis linkage machining,the encoder can effectively compensate the mechanical transmission gap and ensure the continuity of complex surfaces.

Environmental Adaptability and Safety

The motor adopts IP65 protection level to adapt to harsh environments such as cutting fluid splashes and dust.The control board has a built-in overcurrent,overvoltage and overheat protection module.When an exception is detected,it can automatically trigger a safe shutdown and record the fault code(such as E-12 soft start failure,E-16 speed instruction anomalies,etc.)to facilitate rapid locating the problem.

II.Industry application scenarios and typical cases

1.Mold manufacturing:high-precision cavity machining

A precision mold factory uses this motor to drive the Okuma MCR-2000 series machining center to refine the cavity of the automobile covering mold.Through the TAS-S(heat displacement compensation)function of the control board,the motor dynamically adjusts the spindle position during continuous cutting,and controls the thermal deformation error within±3μm,with a surface roughness of Ra≤0.8μm.Customer feedback:”Compared with traditional motors,the machining efficiency is increased by 15%without frequent calibration,saving 30%downtime.”

2.Parts processing of medical equipment:high stability of micro parts

When processing the micro bearing of the CT scanner,a medical equipment manufacturer chose the motor with an ER-JF-7200D encoder to achieve micro-milling at a depth of 0.1mm.Its low-speed and high torque characteristics ensure the stable contact between the tool and the workpiece and avoid the edge collapse caused by vibration.The customer technical director said,”The positioning accuracy of this motor enables us to meet the strict requirements of ISO 13485 medical standards for size tolerances.”

3.Aerospace parts:Titanium alloy milling

When processing titanium alloy turbine blades,an aviation component supplier uses the adaptive cutting algorithm of the high torque output and control plate of the motor to increase the cutting depth from 0.5mm to 1.2mm,and reduce the processing time of a single piece by 20%.At the same time,the high-resolution feedback of the encoder effectively inhibits the vibration brought by titanium alloy hard materials and ensures the smoothness of the tip outline.

III.Maintenance and Troubleshooting Guide

Although Okuma servo motors are famous for their high reliability,long-term operation still requires regular maintenance.The following are common questions and solutions:

Encoder signal anomalies(E-16 alarm)

Phenomenon:The motor cannot respond to the instructions,and the control board shows abnormal speed instructions.

Processing:Check whether the ER-JF-7200D encoder cable is loose or oxidized,use a multimeter to measure the inter-line impedance of the signal(normal value<50Ω),and replace the shielding line if necessary.If the signal is still unstable,the parameters of the control board need to be calibrated(such as the Pr65 main power shutdown detection time).

Motor overheating(E-03 alarm)

Phenomenon:The temperature of the motor housing exceeds 85°C,and the control plate triggers overheat protection.

Treatment:Clean the motor heat sink dust and check whether the cooling fan is working properly.If the heat dissipation system is normal,you need to check whether the load exceeds the limit or the control board parameters are set incorrectly(such as the current limit value Pr10).

Spindle brake failure

Phenomenon:The sliding phenomenon occurs when the motor stops,which may cause machining errors.

Treatment:Check the solenoid valve coil resistance(normal value of 20-30Ω)and replace the damaged parts;at the same time,adjust the release order of the brake of the control plate to ensure that the brake is”enable first and then loosened”.

IV.Expert views and industry trends

Li Gong,a senior CNC engineer,pointed out:”The low-speed and high torque characteristics of Okuma PX-MAF230J-3TBwbr-A fill the gap of traditional motors in precision machining.Its combination with the ER-JF-7200D encoder improves the dynamic response speed by 40%,which is especially suitable for high-rigid spindle systems.

Future development direction:

Intelligent upgrade:realize the adaptive load adjustment and predictive maintenance of the motor through the integration of AI algorithm.

Green energy saving:Optimize the regenerative braking function of the control board and increase the feedback energy utilization rate of the motor from the current 35%to more than 50%.

Modular expansion:Develop interface modules adapted to multi-brand control systems to broaden application scenarios.

V.User evaluation and purchase suggestions

User case:

An auto parts enterprise:After purchasing the motor in batches,the yield of mold processing has increased from 88%to 95%,saving more than one million yuan in annual rework costs.

Medical device manufacturer:Through the collaborative optimization of motors and control boards,the batch processing of micro parts is fully automated,and the labor cost is reduced by 60%.

Shopping Suggestions:

Matching verification:Ensure that the motor power is suitable for the spindle load of the machine tool to avoid long-term overload operation.

Environmental adaptation:In dense cutting fluid areas,it is recommended to install protective shields and replace seals regularly.

Service guarantee:Priority is given to suppliers that provide original control board maintenance and parameter calibration services,such as Wuxi Yuecheng Technology,Foshan Jiedebao,etc.,whose fault repair rate can reach 99%.
