I.MPR5 control panel:the core”commander”of the industrial伺服system

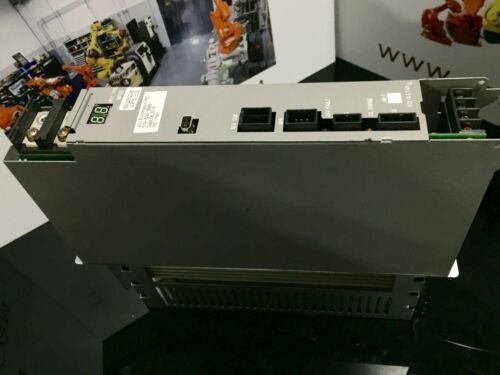

OKUMA MPR5 original mains interface control panel is the core control unit designed for industrial伺服drive systems.Its core function is to convert the instructions of the upper controller(such as PLC)into accurate motor control signals to achieve high-precision rotation control of the spindle.As the”nerve center”of the servo driver,MPR5 has the following key characteristics:

High-performance hardware architecture

Advanced ARM or DSP processors are used to achieve high-speed real-time computing and support multi-axis synchronous control;

Integrated high-precision encoder interface(such as 23-bit absolute encoder),positioning accuracy up to 0.0001mm;

Compatible with AC伺服motors,supports wide voltage input(200-480VAC),and adapts to complex industrial grid environments.

Intelligent control algorithm

Built-in PID parameter adaptive adjustment function can dynamically optimize response speed and stability according to load changes;

Support feedforward control and vibration suppression algorithms to reduce mechanical resonance and improve machining accuracy;

It has 12 fault diagnosis and protection mechanisms such as overcurrent,overvoltage,overheating,etc.to ensure system safety.

Modular design and compatibility

Adopt standard interface protocols(such as EtherCAT,MECHATROLINK)to seamlessly connect mainstream numerical control systems(such as Fanuc,Siemens);

Support customized parameter configuration to meet the personalized needs of machine,robots and other equipment;

Compatible with OKUMA series servo motors,enabling integrated and efficient control of”drive+motor”.

II.Application scenarios:from precision machining to the in-的深度penetration of intelligent manufacturing

With its high performance and stability,the MPR5 control panel has been widely used in many industrial fields,including:

High-end CNC machine tools

In the five-axis linkage machining center,MPR5 achieves high-precision machining of complex surfaces through precise position control and high-speed response.After a domestic aviation parts manufacturer introduced MPR5,the surface roughness of the parts was reduced from Ra1.2μm to Ra0.8μm,increasing processing efficiency by 30%.

Industrial robot joint control

In the joint drive of collaborative robots(such as SCARA robots),the closed-loop torque control of MPR5 ensures the smooth movement of the terminal actuator.A 3C electronics assembly line uses a robot driven by MPR5 to achieve chip mounting accuracy of±0.01mm,and the yield is increased to 99.5%.

New energy equipment

In the lithium battery polar coating machine,the synchronous control function of MPR5 ensures multi-axis linkage accuracy and ensures that the coating thickness error is controlled within±2μm,helping to improve battery consistency.

User reviews show that the”zero fault operation”and”parameter debugging convenience”of MPR5 have been widely recognized.An equipment maintenance engineer said:”The fault diagnosis interface of MPR5 is intuitive,and combined with the automatic gain adjustment function,it saves 50%of our debugging time.”

III.Debugging and maintenance:a guide to the whole process from installation to optimization

In order to ensure the best performance of MPR5,it is necessary to follow the scientific debugging process:

Installation and wiring

Confirm that the power supply voltage matches the MPR5 specification(such as three-phase 380V±10%)to avoid undervoltage operation;

Encoder cables are shielded to avoid electromagnetic interference;

Use a torque wrench to secure the motor to connect to the load to ensure concentricity<0.05mm.

Parameter configuration and debugging

Set basic parameters through special debugging software(such as OKUMA DriveTool):speed/position gain,electronic gear ratio,etc.;

Perform the”auto-tuning”function,and the system will automatically measure the motor inertia and optimize PID parameters;

For high-speed machining scenarios,the”forward-looking control”function can be enabled to compensate for acceleration errors in advance.

Troubleshooting and maintenance

For common faults such as”LED flashing red light”(overheating/overcurrent),give priority to checking the connection of the cooling fan to the cable;

Regularly clean the radiator dust(recommended every 6 months)to prevent excessive temperature rise;

Use the”Failure Log”function to trace historical problems and preventative maintenance.

Experts suggest that in heavy-duty applications,the”speed ring gain”can be appropriately reduced to improve stability;for high-precision scenarios,high-resolution encoders(such as 4096 lines)are preferred.

IV.Technological innovation and industry value:the promoter of import substitution and green manufacturing

With the advancement of China’s intelligent manufacturing strategy,the need for localization of the Servo drive system is increasingly urgent.OKUMA MPR5 helps to make a breakthrough in the industry by virtue of the following advantages:

Import substitution potential

Compared to European and American brands,MPR5 is more competitive in cost performance and localized services(such as 2-hour response after-sales).Feedback from an automation integator:”MPR5’s performance is comparable to that of Siemens high-end drivers,but the cost is reduced by 20%.”

Energy saving and environmental protection characteristics

Using a new generation of IGBT modules and energy feedback technology,the no-load loss is reduced by 35%and meets the green manufacturing standard of Industry 4.0.In textile machinery applications,energy consumption is reduced by up to 15%.

Technical iteration and compatibility

OKUMA continues to upgrade the MPR5 firmware and add AI fault prediction and remote monitoring functions to provide the basis for the digital transformation of equipment.

Industry data show that the annual growth rate of China’s Servo market exceeded 12%in 2024,and the Servo penetration rate of high-end equipment exceeded 70%.As a technical benchmark,MPR5 is promoting the upgrading of domestic manufacturing to high precision and high efficiency.

V.Future prospects:the integration of intelligent伺服and industrial scenarios

With the penetration of AI and edge computing technologies,the Servo drive will evolve towards”intelligent+networking”.MPR5 is expected to make further breakthroughs in the following directions:

Self-learning control:real-time analysis of processed data,dynamic optimization of parameters,and reduction of manual debugging reliance;

Edge computing integration:deploy algorithms on the drive side to reduce control latency and improve real-time;

Non-sensitivity maintenance:”pre-dignostic+active maintenance”through vibration analysis,temperature monitoring and other functions.
