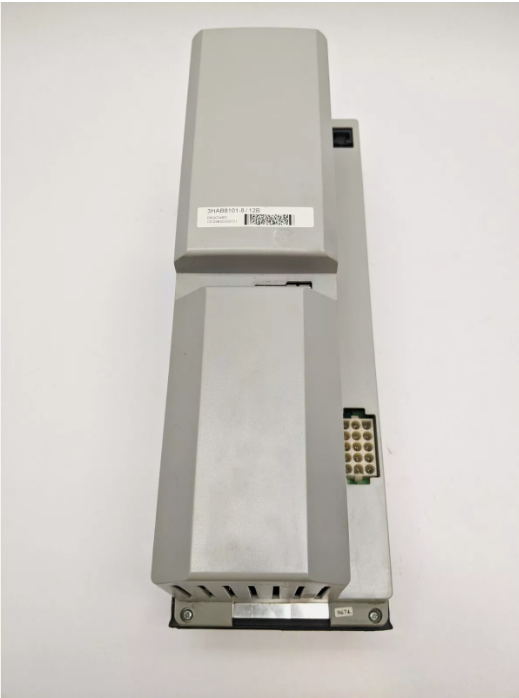

ABB 3HAB8101-18/09A Product Introduction

ABB 3HAB8101-18/09A is a high-performance servo drive developed by ABB,specifically designed for precise motion control in the field of industrial automation.It is suitable for scenarios such as robotics,CNC machining,packaging equipment,and material handling.This product has modular architecture,multi protocol compatibility,and high reliability as its core advantages,supporting the integration and optimization of complex industrial systems.

Main features and advantages:

High performance servo control:integrating advanced algorithms and real-time processing capabilities,supporting high-precision position,speed,and torque control,meeting high-speed response and low jitter requirements,suitable for precision machining and high dynamic load scenarios.

Compact modular design:With a small volume(net weight of 4.2 kilograms),it supports flexible installation and expansion,and is suitable for industrial environments with limited space.

Multi protocol communication compatibility:Built in industrial communication protocol interfaces such as EnDat,Biss,Nikon,and Tamagawa,supporting real-time Ethernet solutions for seamless integration with PLC,HMI,and upper computer systems.

Security and protection enhancement:equipped with digital isolators(iCoupler technology),overcurrent protection(1.5A),surge protection(600W),and IP30 protection level,suitable for high temperature,vibration,and electromagnetic interference environments.

Intelligent integration capability:Supports a split architecture for power modules,control modules,and communication modules,expandable to multi axis synchronous control,enhancing system flexibility and maintainability.

Technical specifications:

Model:3HAB8101-18/09A

Power range:Suitable for AC motors,supports wide voltage input(DC9-36V redundant dual power supply)

Control performance:

Current loop control accuracy:±0.1%

Position detection resolution:12 bit synchronous sampling

Interface configuration:

Communication:EnDat,Biss,EtherNet/IP

Input/output:digital and analog interfaces,supporting customized expansion

Environmental adaptability:

Working temperature:-25℃to+60℃

Protection level:IP30(standard configuration)

Application areas:

Robot system:high-precision positioning and collaborative control of multi joint robotic arms,such as automotive assembly and electronic welding.

Numerical Control Machine Tool:The spindle and feed axis drive of a CNC machining center achieve efficient cutting of complex parts.

Packaging equipment:synchronized motion control of high-speed sorting machines and labeling machines to improve production efficiency and yield.

Logistics handling:Path planning and dynamic obstacle avoidance for AGV(Automated Guided Vehicle)to optimize warehouse management processes.

Related products:

3HAB8101-19:Same series servo drive,supports higher power output,suitable for heavy machinery control.

ABB 2MLL-C22A:Serial interface communication module,compatible with 3HAB8101-18/09A to achieve remote I/O expansion.

ABB 3HAC022286-1:Power module provides stable voltage input for the driver,ensuring long-term operational reliability.

ABB TSXPSY5500:PLC controller,linked with 3HAB8101-18/09A through industrial Ethernet to build a distributed automation system.
