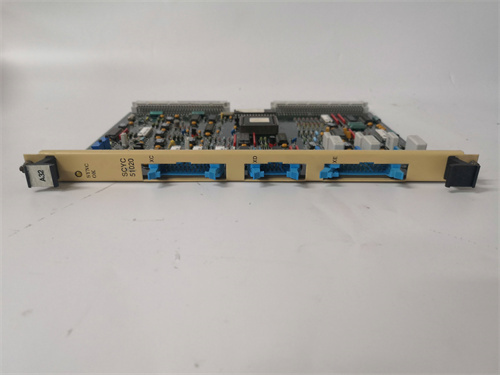

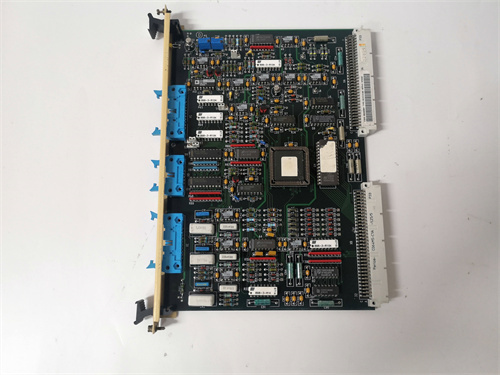

ABB SCYC51020 58052582H Product Introduction

Product model:SCYC51020 58052582H

Brand:ABB

Manufacturer:ABB

Series:Control System

Product Overview:

SCYC51020 58052582H is a high-precision pulse control module launched by ABB,designed specifically for industrial automation,power equipment,and power electronic systems.This module achieves efficient management of key control scenarios such as motor drive,variable frequency speed regulation,and thyristor triggering through precise pulse signal generation and processing.It is widely used in power systems,rail transit,metallurgy and chemical industries,providing stable and reliable signal output and equipment collaborative control capabilities.

Main features and advantages:

High precision and stability:Advanced circuit design and high-quality materials are used to ensure microsecond level pulse signal output accuracy,high long-term stability,and suitable for harsh industrial environments.

Wide temperature adaptability:Supports a working temperature range of-40℃to 70℃,meeting the equipment requirements under extreme weather conditions.

Anti interference capability:Through electromagnetic shielding and signal isolation technology,effectively suppress electromagnetic interference in industrial environments and ensure the reliability of signal transmission.

Flexible interface expansion:Supports multi protocol communication(such as RS-485,Modbus),compatible with other ABB control modules,and adaptable to distributed system integration.

Low power design:optimizes circuit energy consumption,reduces operating costs,suitable for 24-hour continuous work scenarios.

Technical specifications:

Parameter values

Model SCYC51020 58052582H

Working voltage 24V DC(typical value)

Pulse frequency from 10Hz to 100kHz(adjustable)

Environmental temperature-40℃to 70℃(operating)

Protection level IP30(standard configuration)

Communication interface RS-485 dual channel

Application areas:

Power system:used for frequency converter control,thyristor triggering,inverter power management,and improving energy conversion efficiency.

Industrial automation:precise speed regulation of drive motors,applied to equipment such as conveyor belts,cranes,CNC machine tools,etc.

Rail transit:Control train traction system,signal synchronization,and power distribution.

In the field of new energy,support pulse modulation of solar and wind inverters to optimize renewable energy output.

Related products:

UFC765AE102:Control module of the same series,providing additional I/O expansion and logic operation functions,and cooperating with SCYC51020 58052582H to achieve complex system control.

DO880 3BSE028602R1:Equipped with digital output module,suitable for switch control requirements in power systems.

PM864AK01:Industrial PLC core controller,integrated with SCYC51020 58052582H to build an automation control center.
