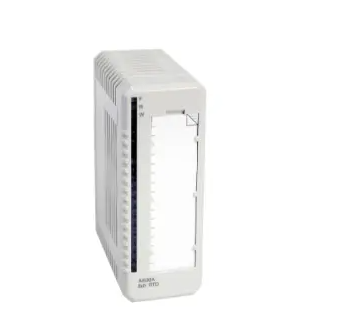

ABB DAO01 Product Introduction

summary:

ABB DAO01 is an industrial automation core module developed by ABB,mainly divided into two series:analog output module and digital output module.This product focuses on high-precision signal conversion,modular design,and industrial grade reliability,and is widely used in automation control systems in chemical,power,metallurgical,pharmaceutical,and other fields.It supports precise control of parameters such as temperature,pressure,and flow rate.

Main features and advantages:

High precision signal output:

The analog output module supports dual modes of 0-10V and 4-20mA,ensuring signal conversion accuracy through SMT technology,and is suitable for precise linkage between sensors and actuators.

Multi protocol compatibility:

Supports RS485,RS232,and Modbus protocols,and can be seamlessly integrated into mainstream control systems such as DCS and PLC to achieve data acquisition and remote monitoring.

Modular expansion capability:

Adopting a standard rack mounted design,it supports flexible configuration with other I/O modules(such as digital input modules and analog input modules)to meet the signal processing requirements of complex systems.

Industrial grade environmental adaptability:

Adopting anti electromagnetic interference design,suitable for a wide temperature range of-30℃to 70℃and high humidity environment,with a protection level of IP20,suitable for harsh scenarios such as factories and power stations.

Technical specifications:

Parameter description

Brand ABB

Model DAO01(Analog/Digital Output Module)

Input voltage 24V DC(analog output module)

Output channel analog quantity:2 channels;Digital quantity:16 channels

Communication interfaces RS485,RS232,Modbus

Dimensions(length x width x height)350.52mm x 482.6mm x 129.54mm

Weight 0.22-1.2kg(depending on model)

Certification standards CE,UL

Application areas:

Process control:temperature regulation of chemical reaction kettle,pressure monitoring of petroleum refining.

Energy management:output control of power system frequency converters,analysis of energy storage equipment status.

Manufacturing industry:flow control of metallurgical production lines,precision measurement of pharmaceutical equipment.

Automation system:linked with PLC and DCS to achieve collaborative operation of multiple devices.

Related products:

ABB DCP10:Central processing module,used in conjunction with DAO01,providing logical operations and data processing support.

ABB DAI03:Analog input module,expanding the signal acquisition capability of DAO01 to form a complete I/O link.

ABB Freelance 2000 series:distributed control system,integrated with DAO01 to achieve multi rack expansion and redundant configuration.
