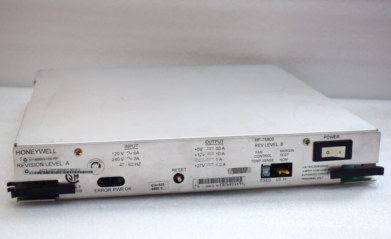

HONEYWELL 51196653-100-RP Product Introduction

Product Overview:

HONEYWELL 51196653-100-RP is an industrial grade analog output module developed by Honeywell, specifically designed for DCS (distributed control systems) and PLC (programmable logic controllers). This module has the core advantages of high-precision signal conversion, low-power operation, and intrinsic safety features, and is suitable for industrial automation, process control, energy management, and other scenarios. It supports real-time data exchange and device control of complex systems.

Main features and advantages:

Efficient communication capability: Using pure hardware communication interface, low latency and high efficiency, supporting SPI (master-slave mode) and UART (dual channel) interfaces, compatible with HART protocol, and customizable communication interface with field devices.

Low power consumption and wide voltage adaptation: current loop power supply design, MCU and HART communication parts do not require external power supply; Supports 12-40VDC wide voltage input, recommended 24VDC power supply, extremely low power consumption.

Data reliability assurance: Magnetic isolation technology for data communication effectively reduces signal interference, automatically saves important data, and ensures that system operation is not affected after power failure and restart.

Intrinsic safety design: Compliant with RoHS standards, meets intrinsic safety requirements, and is suitable for high-risk environments such as flammable and explosive materials.

Flexible scalability: Supports customized configuration for multiple scenarios, seamlessly integrates with other modules through SPI and UART interfaces, and adapts to the complex requirements of industrial automation systems.

Technical specifications:

Parameter specifications

Model HONEYWELL 51196653-100-RP

Brand Honeywell

Signal standard Bell202 standard FSK frequency shift keying signal (carrier frequency 1200Hz/2200Hz)

Communication protocols: HART protocol, SPI, UART (dual channel)

Supply voltage 12-40VDC (recommended 24VDC)

Low power consumption design, specific values need to refer to the official manual

Isolation protection data communication magnetic isolation, intrinsic safety design

Working temperature -30 ℃ to+70 ℃

The protection level is not clearly marked (refer to similar products IP65/IP67)

Certification standards RoHS, intrinsic safety certification

Application areas:

Industrial automation: controlling valve opening and closing, adjusting motor speed, and executing process control tasks.

Process control: Real time monitoring of temperature, pressure, flow rate and other parameters to ensure system stability in the chemical and energy industries.

Energy management: generator control, power load monitoring, and signal processing for new energy equipment such as wind power and photovoltaics.

Environmental monitoring: collection and feedback of environmental parameters such as gas concentration, temperature and humidity.

Pharmaceutical and water treatment: reactor temperature/pressure control, pump station valve adjustment, and linkage of water quality treatment equipment.

Related products:

HONEYWELL 51309154-275: Same series analog output module, supports higher precision signal output, suitable for complex industrial scenarios.

HONEYWELL 51304362-150: Multi channel scanning processor, can be used in conjunction with 51196653-100-RP to expand system input channels.

HONEYWELL 51403476-150: ART protocol analog output processor, suitable for industrial control requirements that require customized communication protocols.
