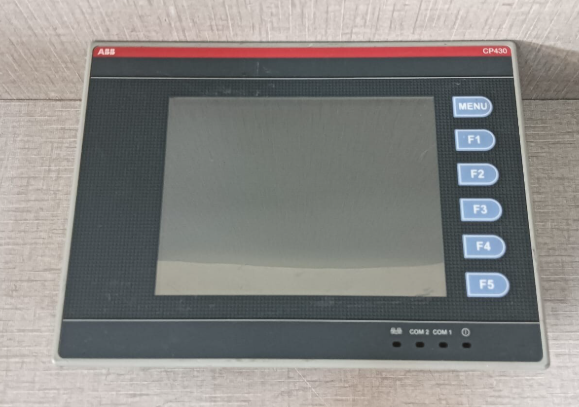

ABB CP430T-ETH Product Introduction

ABB CP430T-ETH is an industrial grade touch screen control panel with integrated Ethernet communication function, designed specifically for automation systems, suitable for fields such as power, chemical, food and beverage, water treatment, etc. This product combines high-resolution display and flexible communication capabilities to provide efficient support for device monitoring, data exchange, and remote management.

Main features and advantages:

High resolution display: Equipped with a 5.7-inch TFT color touch screen with a resolution of 320 × 240 pixels, supporting 64K colors, the interface is clear and intuitive, making it easy for operators to monitor device status in real time.

Multi interface expansion: Provides 2 serial ports (RS232/RS485/RS422) and Ethernet interfaces, supporting seamless connection with PLC, sensors, actuators and other devices, compatible with industrial protocols such as Modbus and PROFIBUS DP.

Ethernet communication: Remote data transmission and control are achieved through TCP/IP protocol, supporting collaborative management of multiple devices within the local area network and enhancing the level of system intelligence.

Storage and Data Management: Built in USB interface and CF card slot, supporting recipe storage, data backup, and fast loading, meeting the flexible configuration requirements of complex processes.

Industrial grade reliability: Adopting IP65 protection level (some models are IP20), suitable for working environments from -20 ° C to 60 ° C, anti vibration, dustproof and waterproof, suitable for harsh industrial scenarios.

Compatibility and Scalability: Can be integrated with ABB AC 800M I/O systems, VD4 vacuum circuit breakers, and other equipment, supporting modular expansion to meet the control needs of systems of different scales.

Technical specifications:

Parameter item specification description

Model CP430T-ETH

Type Touch Screen Control Panel (Supports Ethernet Communication)

Screen size 5.7-inch TFT color screen

Resolution 320 × 240 pixels

Interface type: 2 serial ports (RS232/RS485/RS422)+Ethernet interface

Communication protocols Modbus, PROFIBUS DP V1, TCP/IP

Power requirement: 24V DC

Working temperature range -20 ° C to 60 ° C

Protection level IP65/IP20 (configured by model)

Storage media USB interface, CF card slot

Application areas:

Power system: used for monitoring the status of switchgear, intelligent management of VD4 vacuum circuit breakers, and improving distribution safety and operation efficiency.

Industrial automation: integrated into PLC control systems to achieve remote operation and data collection of production line equipment.

Energy and Chemical Industry: Monitor the vibration, pressure, and temperature parameters of compressors and pumps to ensure production continuity.

Food and pharmaceuticals: Optimize process flow through human-computer interaction interface to meet control requirements in clean environments.

Water treatment: Real time monitoring of filtration system and pump operation status to achieve automated water quality management.







ABB CP430T-ETH产品简介

ABB CP430T-ETH是一款集成以太网通信功能的工业级触摸屏控制面板，专为自动化系统设计，适用于电力、化工、食品饮料、水处理等领域。该产品结合高分辨率显示与灵活的通信能力，为设备监控、数据交互及远程管理提供高效支持。

主要特点和优势：

高分辨率显示：配备5.7英寸TFT彩色触摸屏，分辨率为320×240像素，支持64K色彩，界面清晰直观，便于操作员实时监测设备状态。

多接口扩展：提供2个串口（RS232/RS485/RS422）和以太网接口，支持与PLC、传感器、执行器等设备的无缝连接，兼容Modbus、PROFIBUS DP等工业协议。

以太网通信：通过TCP/IP协议实现远程数据传输与控制，支持局域网内多设备协同管理，提升系统智能化水平。

存储与数据管理：内置USB接口及CF卡插槽，支持配方存储、数据备份与快速加载，满足复杂工艺的灵活配置需求。

工业级可靠性：采用IP65防护等级（部分型号为IP20），适应-20°C至60°C工作环境，抗振动、防尘防水，适用于恶劣工业场景。

兼容性与扩展性：可与ABB AC 800M I/O系统、VD4真空断路器等设备集成，支持模块化扩展，满足不同规模系统的控制需求。

技术规格：

参数项规格说明

型号CP430T-ETH

类型触摸屏控制面板（支持以太网通信）

屏幕尺寸5.7英寸TFT彩色屏

分辨率320×240像素

接口类型2个串口（RS232/RS485/RS422）+以太网接口

通信协议Modbus、PROFIBUS DP V1、TCP/IP

电源要求24 V DC

工作温度范围-20°C至60°C

防护等级IP65/IP20（依型号配置）

存储介质USB接口、CF卡插槽

应用领域：

电力系统：用于开关柜状态监控、VD4真空断路器智能化管理，提升配电安全与运维效率。

工业自动化：集成于PLC控制系统，实现生产线设备的远程操作与数据采集。

能源与化工：监控压缩机、泵类设备的振动、压力及温度参数，保障生产连续性。

食品与制药：通过人机交互界面优化工艺流程，满足洁净环境下的控制需求。

水处理：实时监测过滤系统、水泵运行状态，实现自动化水质管理。
