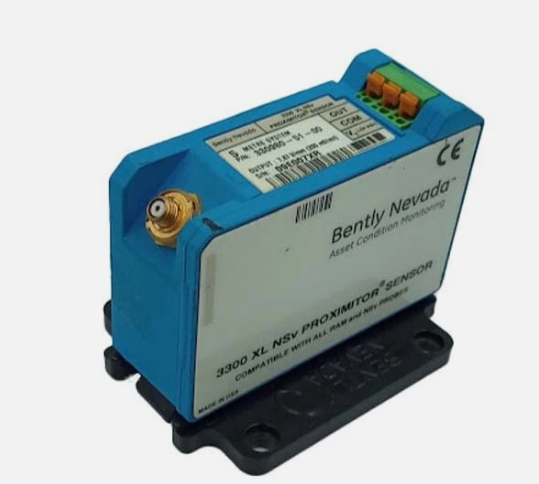

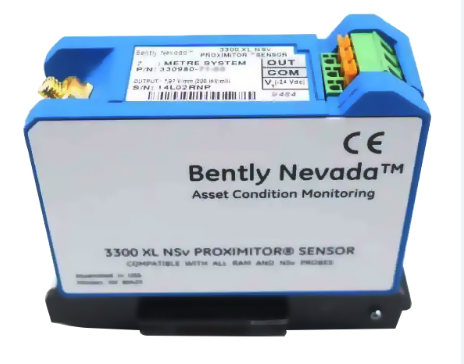

BENTLY 330980-51-00 Product Introduction

BENTLY 330980-51-00 is a preamplifier component launched by Bently Nevada (now a brand under GE Industrial Solutions), specifically designed for the 3300 XL NSv eddy current sensor system. This product is mainly used for vibration, displacement, and speed monitoring of industrial rotating machinery. It has the characteristics of high precision, strong anti-interference, and wide compatibility, and is widely used in fields such as power, petroleum, chemical, metallurgy, etc.

Main features and advantages:

Compact design: Adopting guide rail or panel installation method, with a small volume (about 20 × 20 mm), suitable for narrow space requirements, especially for monitoring compact areas of centrifugal compressors and other equipment.

High precision measurement: Supports a linear range of 60 mils (1.5 mm), with output voltage proportional to the distance between the probe end and the measured metal surface, and accuracy in accordance with API 670 standard.

Anti electromagnetic interference: Built in strong electromagnetic shielding design, can work stably in complex environments such as fiberglass protective covers, without the need for additional shielding measures.

Flexible Scalability: Compatible with 3300 XL NSv series probes (such as 330103, 330104) and extension cables (such as 330930-040-00-00), supporting configurations with a total system length of 5 or 7 meters.

Industrial grade reliability: using corrosion-resistant gold-plated copper joints, resistant to high temperatures (-40 ° C to 85 ° C) and harsh environments, with a warranty period of 1 year.

Technical specifications:

Parameter item specification description

Model 330980-51-00

Brand Bently Nevada (GE Industrial Solutions)

Type eddy current sensor preamplifier

Linear range 60 mil (1.5 mm)

Output signal DC voltage (proportional to distance)

Installation method: rail type or panel type

Protection level IP67 (dustproof and waterproof)

Working temperature range -40 ° C to 85 ° C

Compatibility with 3300 XL NSv series probes, extension cables, and 3500/42M monitoring modules

Application areas:

Power industry: Vibration monitoring of turbine and generator bearings to ensure safe operation of the unit.

Petroleum and Chemical Industry: Real time monitoring of shaft displacement and shell vibration of compressors and pumps.

Metallurgy and Machinery: Dynamic Stability Analysis of Large Rotating Machinery such as Rolling Mills and Fans.

Industrial automation: Integrated with PLC and DCS systems to achieve remote transmission of vibration data and alarm linkage.

Related products:

330103-00-06-10-02-00: Equipped with a probe for measuring axial displacement, it forms a complete sensor system with 330980-51-00.

330930-040-00-00: Extend the cable to increase the total length of the sensor system to 5 meters, improving installation flexibility.

3500/42M monitoring module: receives preamplifier signals, supports vibration threshold setting and alarm output, suitable for industrial control networks.



BENTLY 330980-51-00产品简介

BENTLY 330980-51-00是Bently Nevada（现为GE工业解决方案旗下品牌）推出的前置器组件，专为3300 XL NSv电涡流传感器系统设计。该产品主要用于工业旋转机械的振动、位移及转速监测，具有高精度、抗干扰强、兼容性广等特点，广泛应用于电力、石油、化工、冶金等领域。

主要特点和优势：

紧凑型设计：采用导轨或面板安装方式，体积小巧（约20×20 mm），适应狭窄空间需求，尤其适用于离心式压缩机等设备的紧凑区域监测。

高精度测量：支持线性范围60密耳（1.5 mm），输出电压与探头端部与被测金属表面的距离成正比，精度符合API 670标准。

抗电磁干扰：内置强电磁屏蔽设计，可在玻璃纤维防护罩等复杂环境中稳定工作，无需额外屏蔽措施。

灵活扩展性：与3300 XL NSv系列探头（如330103、330104）及延伸电缆（如330930-040-00-00）兼容，支持系统总长度达5米或7米的配置。

工业级可靠性：采用防腐蚀镀金铜接头，耐高温（-40°C至85°C）及恶劣环境，质保期1年。

技术规格：

参数项规格说明

型号330980-51-00

品牌Bently Nevada（GE工业解决方案）

类型电涡流传感器前置器

线性范围60密耳（1.5 mm）

输出信号直流电压（与距离成正比）

安装方式导轨式或面板式

防护等级IP67（防尘防水）

工作温度范围-40°C至85°C

兼容性3300 XL NSv系列探头、延伸电缆及3500/42M等监测模块

应用领域：

电力行业：汽轮机、发电机轴承振动监测，保障机组安全运行。

石油与化工：压缩机、泵类设备的轴位移与壳体振动实时监控。

冶金与机械：轧机、风机等大型旋转机械的动态稳定性分析。

工业自动化：与PLC、DCS系统集成，实现振动数据远程传输与报警联动。

相关产品：

330103-00-06-10-02-00：配套探头，用于测量轴向位移，与330980-51-00组成完整传感器系统。

330930-040-00-00：延伸电缆，扩展传感器系统总长度至5米，提升安装灵活性。

3500/42M监测模块：接收前置器信号，支持振动阈值设定与报警输出，适用于工业控制网络。
