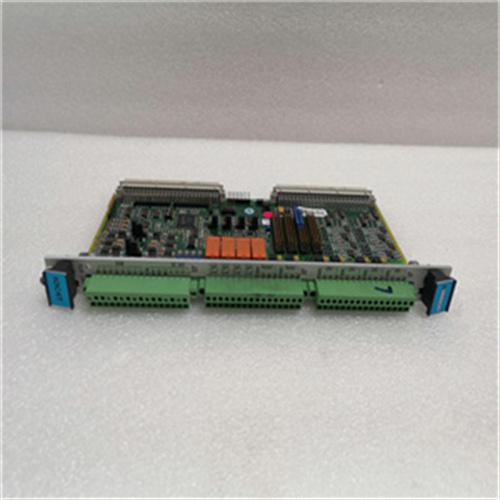

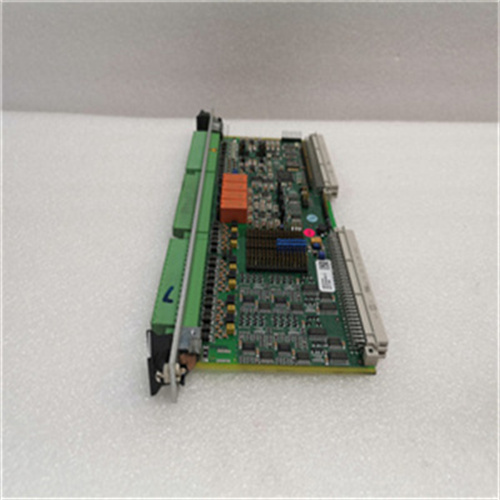

VIBRO 200-560-000-113 VM600 Product Introduction

VIBRO 200-560-000-113 VM600 is a high-performance I/O expansion module launched by VIBRO-METER (now part of Meggitt), specifically designed for the VM600 series vibration monitoring system. This module connects to field devices through extended I/O channels and is widely used in the field of industrial automation control, supporting scenarios such as vibration monitoring, rotating machinery protection, and predictive maintenance.

Product Overview:

VIBRO 200-560-000-113 VM600 adopts a modular architecture, compatible with VM600 local racks, and supports flexible configuration of digital, analog, and pulse input/output modules. Its high reliability design is suitable for industrial environments, combined with advanced signal processing technology, which can accurately collect and analyze vibration data, ensuring stable operation of equipment.

Main technical parameters:

parameter description

Supports I/O module types including digital, analog, and pulse input/output

Maximum I/O channels 32 channels

Number of backplane connectors 2

Working temperature range -40 ℃ to+70 ℃

Installation method: Backboard/rack

Signal interface types such as BNC, RS-485, etc

Protection level IP30

Main features and advantages:

Modular expansion capability: Supports multiple types of I/O modules and can flexibly adapt to vibration sensors, temperature transmitters, and other devices to meet complex monitoring needs.

High precision signal processing: using 24 bit data acquisition technology, with excellent signal-to-noise ratio, to ensure the real-time and accuracy of vibration data.

Industrial grade reliability: Through strict environmental testing, it has strong anti-interference ability and can adapt to harsh industrial scenarios such as high temperature and high humidity.

Flexible configuration and maintenance: Supports hot swappable design, simplifies installation process, and real-time feedback of system health status indicator lights (power, operation).

System integration compatibility: seamlessly collaborate with other modules in the VM600 series (such as MPC4 protection card, IOC4T input/output card) to build a complete mechanical monitoring system.

Application areas:

Power plant: Monitor the vibration status of steam turbines and generators to prevent shutdown accidents caused by mechanical failures.

Oil and gas: Real time tracking of operating parameters of compressors and pumps to ensure the safety of oil and gas transportation.

Chemical and Metallurgical: Analyze the vibration trends of mixers and fans, and optimize maintenance cycles.

Predictive maintenance: Combining vibration data analysis to identify potential issues such as bearing wear and abnormal shaft displacement in advance.

Installation and compatibility:

Installed on a standard 19 inch rack, the backplane connector supports quick insertion and removal.

Compatible with VM600 series core modules such as XMV16 status monitoring card and RPS6U power module, expandable to multi-channel monitoring systems.

Supports industrial protocols such as Modbus and PROFINET, making it easy to connect to DCS/SCADA systems.



VIBRO 200-560-000-113 VM600产品简介

VIBRO 200-560-000-113 VM600是VIBRO-METER（现属Meggitt公司）推出的高性能I/O扩展模块，专为VM600系列振动监测系统设计。该模块通过扩展I/O通道实现与现场设备的连接，广泛应用于工业自动化控制领域，支持振动监测、旋转机械保护及预测性维护等场景。

产品概述：

VIBRO 200-560-000-113 VM600采用模块化架构，兼容VM600本地机架，支持数字量、模拟量及脉冲输入/输出模块的灵活配置。其高可靠性设计适应工业环境，结合先进信号处理技术，可精准采集与分析振动数据，保障设备稳定运行。

主要技术参数：

参数描述

支持I/O模块类型数字量、模拟量、脉冲输入/输出

最大I/O通道数32通道

背板连接器数量2个

工作温度范围-40℃至+70℃

安装方式背板/机架

信号接口类型BNC、RS-485等

防护等级IP30

主要特点和优势：

模块化扩展能力：支持多种I/O模块类型，可灵活适配振动传感器、温度变送器等设备，满足复杂监测需求。

高精度信号处理：采用24位数据采集技术，信噪比优异，确保振动数据的实时性和准确性。

工业级可靠性：通过严格环境测试，抗干扰能力强，适应高温、高湿等恶劣工业场景。

灵活配置与维护：支持热插拔设计，简化安装流程，状态指示灯（电源、运行）实时反馈系统健康状况。

系统集成兼容性：与VM600系列其他模块（如MPC4保护卡、IOC4T输入/输出卡）无缝协作，构建完整的机械监测系统。

应用领域：

发电厂：监测汽轮机、发电机的振动状态，预防机械故障导致的停机事故。

石油天然气：实时跟踪压缩机、泵类设备的运行参数，保障油气输送安全。

化工与冶金：分析搅拌机、风机的振动趋势，优化维护周期。

预测性维护：结合振动数据分析，提前识别轴承磨损、轴位移异常等潜在问题。

安装与兼容性：

采用标准19英寸机架安装，背板连接器支持快速插拔。

兼容VM600系列核心模块，如XMV16状态监测卡、RPS6U电源模块，可扩展至多通道监测系统。

支持Modbus、PROFINET等工业协议，便于接入DCS/SCADA系统。
