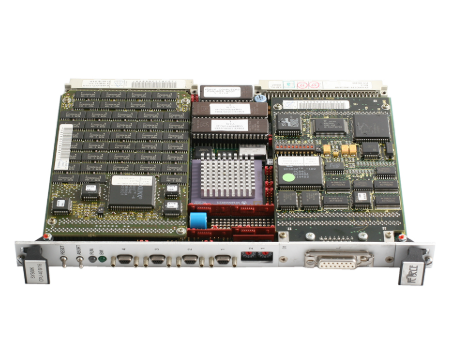

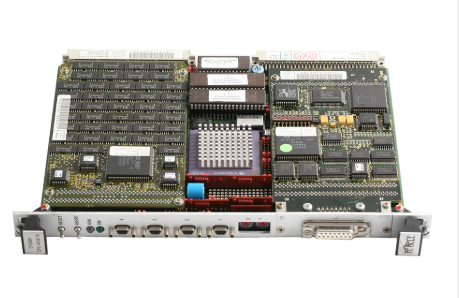

FRCE SYS68K CPU-40 B/16 Product Introduction

Product Overview:

FRCE SYS68K CPU-40 B/16 is a core controller module in the field of industrial automation, designed specifically for distributed control systems (DCS) and complex industrial scenarios. This module integrates high-performance data processing and logic control functions, supports multi protocol communication and extended storage, and is suitable for automation control in industries such as power, metallurgy, and chemical engineering. It can achieve equipment status monitoring, process optimization, and security protection.

Main features and advantages:

High reliability and anti-interference: adopting industrial grade hardware architecture, adapting to high temperature, high humidity and strong electromagnetic interference environment, supporting redundant design and watchdog timer, ensuring long-term stable operation of the system.

Flexible storage and expansion capabilities: Built in 64000 step RAM storage (supporting battery backup), optional 64000 step flash storage box to meet the storage needs of complex logic programs; Support I/O expansion interfaces and adapt to control systems of different scales.

Efficient instruction parsing: Built in 27 basic instructions and ladder diagram language parsing program, optimizing instruction execution efficiency, reducing development complexity, and shortening system debugging cycle.

Real time control and communication: Supports serial communication interface, seamlessly integrates with upper computer, HMI or other industrial equipment, realizing real-time data interaction and remote monitoring.

Modular design: Compatible with multiple industrial protocols such as Modbus and Profibus, it can quickly adapt to different brands of control systems and reduce integration costs.

Technical specifications:

Parameter specifications

Product model FRCE SYS68K CPU-40 B/16

Storage capacity 64000 steps RAM (battery backup), optional 64000 steps flash storage box

Instruction quantity: 27 basic instructions

Communication interface 1-2 serial channels (RS-485/RS-232)

Clock function with built-in real-time clock (leap year correction, monthly difference ± 45 seconds/25 ℃)

Working voltage 125V DC

Output frequency 850Hz

Environmental temperature 0-35 ℃

Environmental humidity 15% (non condensing)

Protection level IP20 (standard)

Size and weight 100mm × 100mm, 2kg

Application areas:

Power system: control of generator sets, monitoring and protection of substation equipment.

Process industry: Temperature and pressure control of chemical reaction vessels, flow regulation of pipelines.

Metallurgy and Manufacturing: Automation of Blast Furnace Operations, Collaborative Control of Production Line Equipment.

Building automation: HVAC system, fire linkage control.

Related products:

Invensys Triconex controller: a redundant safety controller that collaborates with FRCE SYS68K CPU-40 B/16 to achieve high safety level industrial control.

GE FANUC Programmable Logic Controller: Supports multi protocol communication and expandable FRCE SYS68K CPU-40 B/16 functional modules.

Schneider Modicon module: compatible with ladder diagram programming and compatible with FRCE SYS68K CPU-40 B/16 industrial network architecture.



FRCE SYS68K CPU-40 B/16产品简介

产品概述：

FRCE SYS68K CPU-40 B/16是工业自动化领域核心控制器模块，专为分布式控制系统（DCS）及复杂工业场景设计。该模块集成高性能数据处理与逻辑控制功能，支持多协议通信与扩展存储，适用于电力、冶金、化工等行业的自动化控制，可实现设备状态监测、流程优化及安全保护。

主要特点和优势：

高可靠性与抗干扰性：采用工业级硬件架构，适应高温、高湿及强电磁干扰环境，支持冗余设计与看门狗定时器，确保系统长期稳定运行。

灵活存储与扩展能力：内置64000步RAM存储（支持电池备份），可选配64000步闪存存储盒，满足复杂逻辑程序的存储需求；支持I/O扩展接口，适配不同规模控制系统。

高效指令解析：内置27个基础指令与梯形图语言解析程序，优化指令执行效率，降低开发复杂度，缩短系统调试周期。

实时控制与通信：支持串行通信接口，可与上位机、HMI或其他工业设备无缝集成，实现实时数据交互与远程监控。

模块化设计：兼容多种工业协议（如Modbus、Profibus），可快速适配不同品牌控制系统，降低集成成本。

技术规格：

参数规格

产品型号FRCE SYS68K CPU-40 B/16

存储容量64000步RAM（电池备份），可选64000步闪存存储盒

指令数量27个基础指令

通信接口1-2个串行通道（RS-485/RS-232）

时钟功能内置实时时钟（闰年修正，月差±45秒/25℃）

工作电压125V DC

输出频率850Hz

环境温度0-35℃

环境湿度15%（非冷凝）

防护等级IP20（标准）

尺寸与重量100mm×100mm，2kg

应用领域：

电力系统：发电机组控制、变电站设备监测与保护。

流程工业：化工反应釜温度与压力控制、管道流量调节。

冶金与制造：高炉作业自动化、生产线设备协同控制。

楼宇自动化：暖通空调系统、消防联动控制。

相关产品：

Invensys Triconex控制器：冗余型安全控制器，与FRCE SYS68K CPU-40 B/16协同实现高安全等级工业控制。

GE FANUC可编程逻辑控制器：支持多协议通信，可扩展FRCE SYS68K CPU-40 B/16的功能模块。

施耐德Modicon模块：兼容梯形图编程，适配FRCE SYS68K CPU-40 B/16的工业网络架构。
