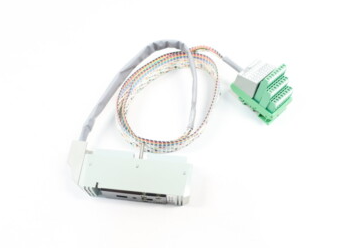

Model:FOXBORO P0500RY

Product positioning:Industrial automation modular equipment,with both contactor assembly and analog input and output functions,specially designed for high-power circuit switching and process control,suitable for chemical,electric power,petroleum and other industrial scenarios.

Technical specifications

Parameter specifications

Core functions:high-power circuit switching,analog input and output(0-20mA),fault safety configuration

Input/output channel 4 analog inputs(0-20mA),4 analog outputs(0-20mA)

Channel isolation input/output channel and ground electricity isolation,support independent signal processing

The communication interface supports fieldbus(such as FBM204 module compatibility)and redundant configuration

Environmentally adaptable industrial-grade protection design(impact resistance,dustproof,wide temperature range-40℃to+70℃)

The power supply requires 24V DC power supply(some models support dual power supply redundancy)

Installation mode Modular DIN rail installation,compatible with I/A series system cabinets

The certification standards comply with IEC 61131-2,API 670 and other industrial automation standards.

Main features and advantages

Multi-functional integrated design

Contactor assembly:It supports high-power circuit switching,has high durability contacts,and is suitable for frequent start-stop needs in industrial environments.

Analog I/O module:four-channel 0-20mA input/output,support current isolation and signal conversion,adapt to sensors,transmitters and other equipment.

High reliability and security

Fault safety configuration:Support the”retain/back”mode to ensure that the output state can be controlled when the system is abnormal and avoid production interruption.

Distributed PID control:fast closed-loop control is achieved through the dpida control block,which is suitable for temperature,pressure and other parameter adjustment.

Flexible expansion and compatibility

The modular structure adapts to the FOXBORO I/A series system and can work with other modules(such as FBM4/39/44 processors)to build a complex control network.

Support redundant fieldbus connection to improve system fault tolerance.

Industrial-grade performance optimization

Sigma-Delta data conversion technology is adopted to ensure the high-precision transmission of analog signals.

The built-in bypass output station design supports seamless switching during maintenance and reduces downtime.

Application field

Industrial process control:chemical reactor temperature control,petroleum refining pressure monitoring.

Power system:remote control and status feedback of the switch cabinet of the substation.

Energy management:power regulation and fault diagnosis of wind turbines.

Automated production line:mechanical arm motion control,conveyor belt start-stop logic execution.

型号：FOXBORO P0500RY

产品定位：工业自动化模块化设备，兼具接触器总成与模拟量输入输出功能，专为大功率电路切换及过程控制设计，适用于化工、电力、石油等工业场景。

技术规格

参数规格

核心功能大功率电路切换、模拟量输入输出（0-20mA）、故障安全配置

输入/输出通道4路模拟量输入（0-20mA）、4路模拟量输出（0-20mA）

通道隔离输入/输出通道与地电隔离，支持独立信号处理

通信接口支持现场总线（如FBM204模块兼容）及冗余配置

环境适应性工业级防护设计（抗冲击、防尘、宽温域-40℃至+70℃）

电源要求24V直流供电（部分型号支持双电源冗余）

安装方式模块化DIN导轨安装，兼容I/A系列系统机柜

认证标准符合IEC 61131-2、API 670等工业自动化标准

主要特点和优势

多功能集成设计

接触器总成：支持大功率电路切换，具备高耐久性触点，适用于工业环境中的频繁启停需求。

模拟I/O模块：四通道0-20mA输入/输出，支持电流隔离与信号转换，适配传感器、变送器等设备。

高可靠性与安全性

故障安全配置：支持“保持/回退”模式，确保系统异常时输出状态可控，避免生产中断。

分布式PID控制：通过dpida控制块实现快速闭环控制，适用于温度、压力等参数调节。

灵活扩展与兼容性

模块化结构适配FOXBORO I/A系列系统，可与其他模块（如FBM4/39/44处理器）协同工作，构建复杂控制网络。

支持冗余现场总线连接，提升系统容错能力。

工业级性能优化

采用Sigma-Delta数据转换技术，确保模拟信号高精度传输。

内置旁路输出站设计，支持维护期间的无缝切换，减少停机时间。

应用领域

工业过程控制：化工反应釜温度控制、石油炼化压力监测。

电力系统：变电站开关柜的远程控制与状态反馈。

能源管理：风力发电机组的功率调节与故障诊断。

自动化生产线：机械臂运动控制、输送带启停逻辑执行。
