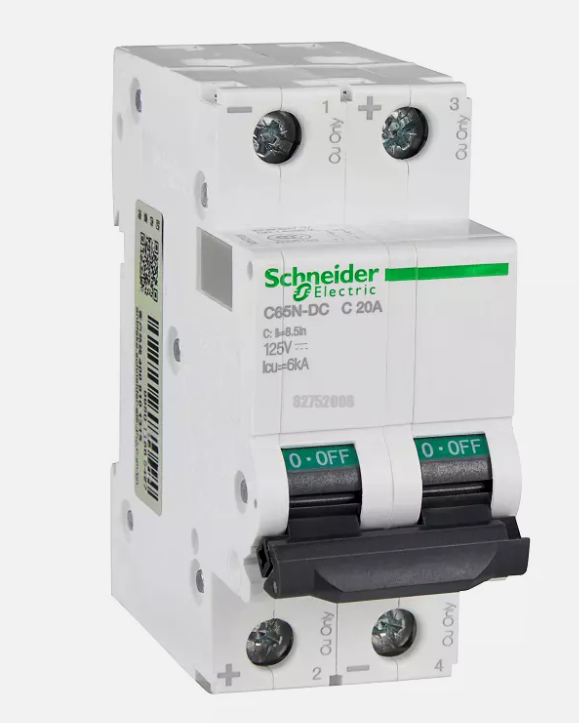

Product introduction of SCHNEIDER C65N

Product overview:

C65N is a high-performance small circuit breaker launched by Schneider Electric,which is specially designed for low-voltage distribution systems and covers overload,short circuit protection and isolation functions.With the core advantages of high breaking capacity,modular design and wide applicability,this product is suitable for industrial,commercial and civil scenarios,and supports AC and DC circuit protection.

Technical specifications:

Specification description of parameter name

Model C65N

Rated working voltage AC 230V/400V(1P),400V(2P/3P/4P)

Rated current 1A-63A

Breaking ability 6A-40A:6000A;50A-63A:4500A

Detachment curve type B/C/D(B is electronic protection,C is power distribution protection,D is power protection)

Number of extremes 1P/2P/3P/4P

Protection level IP20

Machine life≥20,000 times

Electrical life≥4,000 times

Ambient temperature-25°C to+40°C

Accessory compatibility supports leakage protection,remote control and other module extensions

Main features and advantages:

High reliability breaking:with fast closing technology,contact closing is not affected by operating speed,which improves electrical life.The breaking capacity of 6A-40A is up to 6kA,and the breaking capacity of 50A-63A is up to 4.5kA,which meets the needs of high-load scenarios.

Flexible wiring design:supports dual wiring(standard junction and soft conductor),compatible with tunnel terminals,solid wiring and vibration-resistant.

Modular expansion:optional leakage protection(such as VE/VEG accessories),auxiliary contacts(OF/SD)and remote control modules(MX/MN)to achieve functional customization.

Safety protection:The shell is made of highly flame-retardant plastic,the green stripes on the handle indicate the broken state,and the red window shows the fault removal,reducing the risk of misoperation.

Wide voltage adaptation:support AC and DC circuits(DC model C65N-DC),covering the 60V-125V DC voltage range,adapting to new energy and rail transit scenarios.

Field of application:

Industrial scenarios:motor control,electric locomotives,ship power distribution systems,relying on the D-type release curve to cope with high impact loads.

Commercial buildings:lighting and air conditioning circuit protection for shopping malls and office buildings,C-type release curve adapts to conventional power distribution needs.

Civil housing:home distribution box overload protection,32A-63A specifications cover high-power electrical appliances(such as water heaters and air conditioners).

DC system:DC circuits such as power storage and photovoltaic inverters are accurately protected by the C65N-DC model.

Related products:

C65H/C65L:The same series of high-break models,with a break-off capacity of 10kA/15kA respectively,suitable for industrial high-fault current scenarios.

Vigi leakage protection accessories:After assembly with C65N,A/AC residual current protection(30mA-300mA)is realized,and the safety level is improved.

Acti9 series:derived models with integrated DC protection functions(such as C65N-DC)to expand applications in the field of new energy.

SCHNEIDER C65N产品简介

产品概述：

C65N是施耐德电气推出的高性能小型断路器，专为低压配电系统设计，涵盖过载、短路保护及隔离功能。该产品以高分断能力、模块化设计和广泛适用性为核心优势，适用于工业、商业及民用场景，支持交流与直流电路保护。

技术规格：

参数名称规格说明

型号C65N

额定工作电压AC 230V/400V（1P）、400V（2P/3P/4P）

额定电流1A-63A

分断能力6A-40A：6000A；50A-63A：4500A

脱扣曲线B/C/D型（B为电子保护，C为配电保护，D为动力保护）

极数1P/2P/3P/4P

防护等级IP20

机械寿命≥20,000次

电气寿命≥4,000次

环境温度-25°C至+40°C

附件兼容性支持漏电保护、远程控制等模块扩展

主要特点和优势：

高可靠性分断：采用快速闭合技术，触点闭合不受操作速度影响，提升电气寿命。6A-40A分断能力达6kA，50A-63A达4.5kA，满足高负载场景需求。

灵活接线设计：支持双重接线（标准汇流排与软导线），兼容隧道式端子，接线牢固且抗振动。

模块化扩展：可选配漏电保护（如VE/VEG附件）、辅助触点（OF/SD）及远程控制模块（MX/MN），实现功能定制化。

安全防护：壳体采用高阻燃塑料，手柄绿色条纹指示分断状态，红色视窗显示故障脱扣，降低误操作风险。

宽电压适配：支持交流与直流电路（直流型号C65N-DC），覆盖60V-125V直流电压范围，适配新能源与轨道交通场景。

应用领域：

工业场景：电机控制、电力机车、舰船配电系统，依赖D型脱扣曲线应对高冲击负载。

商业建筑：商场、办公楼的照明与空调回路保护，C型脱扣曲线适配常规配电需求。

民用住宅：家庭配电箱过载保护，32A-63A规格覆盖大功率电器（如热水器、空调）。

直流系统：电力储能、光伏逆变器等直流电路，通过C65N-DC型号实现精准保护。

相关产品：

C65H/C65L：同系列高分断型号，分断能力分别达10kA/15kA，适用于工业高故障电流场景。

Vigi漏电保护附件：与C65N拼装后实现A/AC类剩余电流保护（30mA-300mA），提升安全等级。

Acti9系列：集成直流保护功能的衍生型号（如C65N-DC），扩展新能源领域应用。
