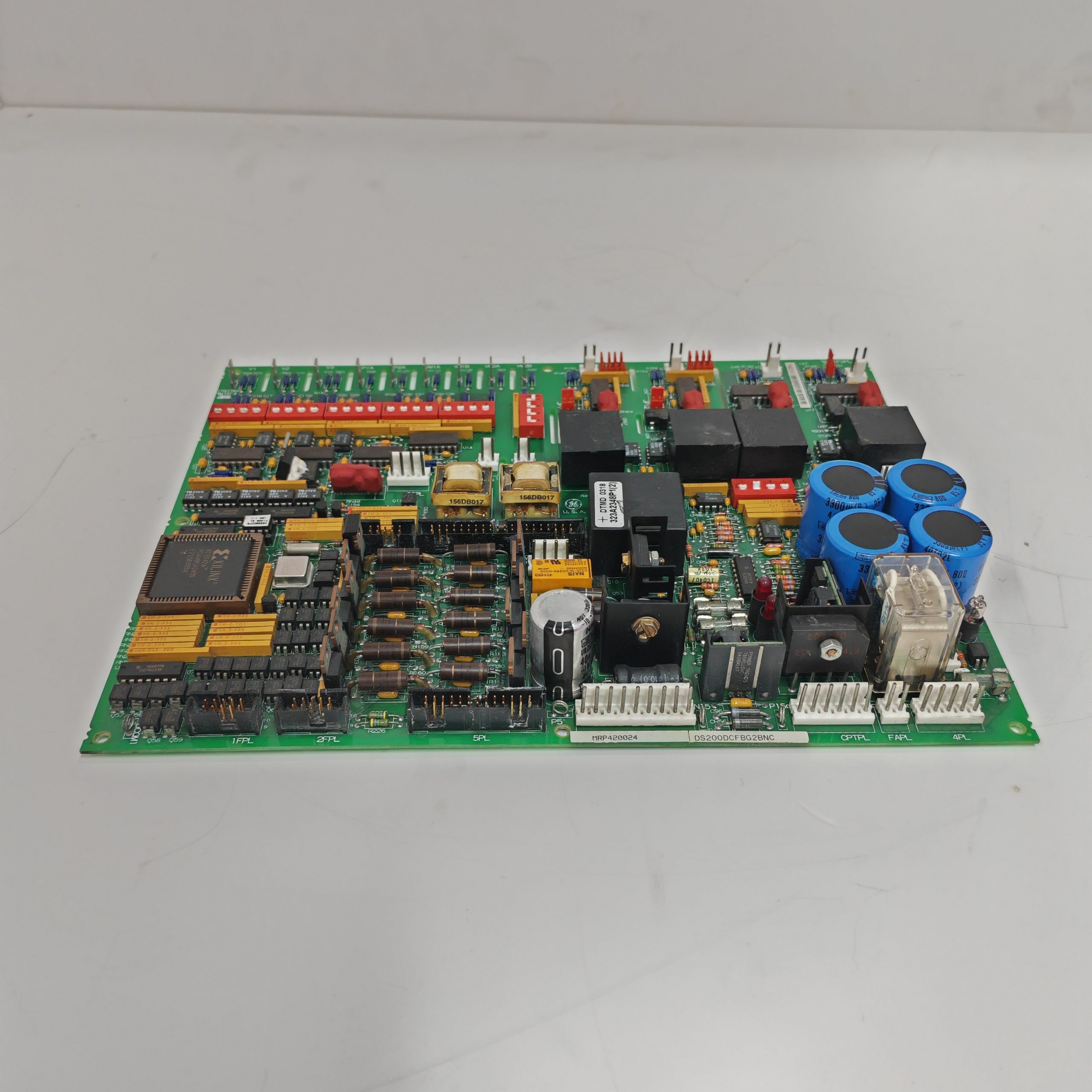

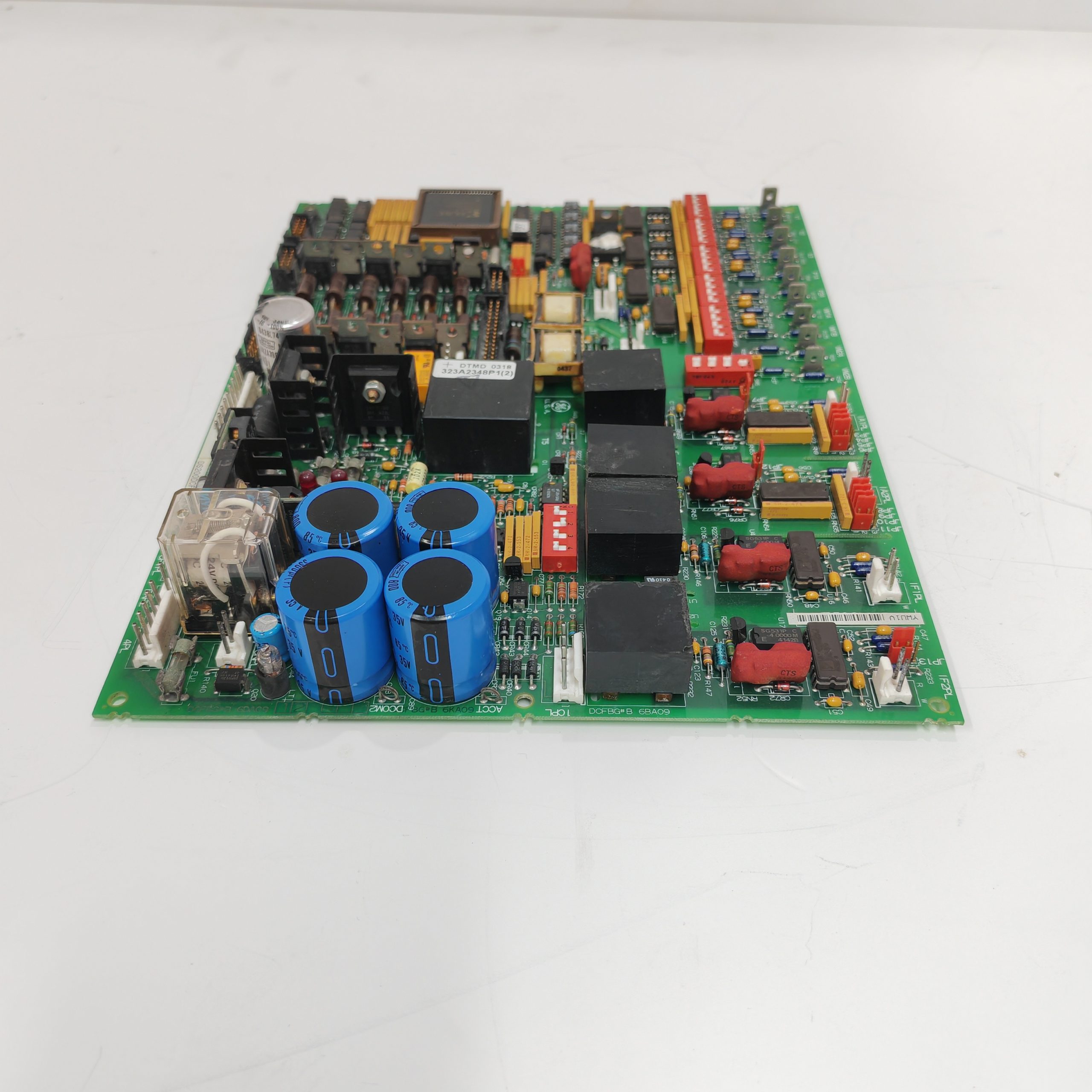

GE DS200DCFBG2BNC MRP420024 Product Introduction

GE DS200DCFBG2BNC MRP420024 is a high-performance analog output module designed specifically for industrial automation systems, supporting high-precision signal control and multi protocol communication. This product combines advanced technology from GE Fanuc and is suitable for harsh industrial environments, meeting complex needs in fields such as motor drive, process control, and energy management.

Product Overview:

DS200DCFBG2BNC MRP420024 is an expansion module of GE Fanuc 90-30 series PLC system, providing 8-channel analog output function. Its core design focuses on high-sensitivity signal processing and anti-interference capability, supporting fast response and stable output, suitable for precision instruments, automation equipment, and industrial control systems. The module adopts a modular architecture and can be flexibly integrated into GE Fanuc’s PLC or PAC system to achieve efficient data exchange and control.

Main features and advantages:

High precision control: Supports ± 12V or ± 10V output range, with a resolution of 16 bits, meeting the requirements of high-precision industrial scenarios.

Anti interference design: adopting electromagnetic shielding and filtering technology to adapt to complex electromagnetic environments and ensure stable signal transmission.

Multi protocol compatibility: Supports industrial communication protocols such as EtherNet/IP, Profibus DP, DeviceNet, etc., facilitating system integration and remote monitoring.

Flexible Expansion: Supports expansion through VME bus or backplane, adapts to GE Fanuc’s CPU modules (such as IC695CPU315, IC693CPU320) and I/O modules, and builds complex control systems.

Real time guarantee: Based on the VxWorks real-time operating system, it supports multitasking and response time as low as microseconds.

Technical specifications:

Parameter specifications

Model DS200DCFBG2BNC MRP420024

Number of channels: 8 channels for analog output

Output range ± 12V or ± 10V (optional)

Resolution 16 bits

Communication interface VME bus EtherNet/IP、Profibus DP、DeviceNet

Working temperature -20 ℃ to 60 ℃

Storage temperature -40 ℃ to 85 ℃

Power supply requirement 5VDC (rated current 2A)

Protection level IP20 (open shell)

19 inch standard rack installation (height: 3U)

Application areas:

Industrial automation: motor drives, robot control, process automation systems.

Energy management: UPS power supply, power equipment monitoring, energy distribution network.

Precision instruments: medical imaging equipment, laboratory instruments, high-precision sensor calibration.

Transportation and Infrastructure: Railway Signal Control, Intelligent Transportation Systems, Building Automation.

Related products:

IC695CPU315: Comes with a CPU module that supports real-time multitasking and industrial network communication.

IC693ACC329: Analog input module, working in conjunction with DS200DCFBG2BNC MRP420024 to achieve closed-loop control.

IC695CPE400CA: Communication expansion module to enhance data transmission capabilities between systems.

IC698CRE020: Redundant CPU module, providing high reliability hot backup solution.





GE DS200DCFBG2BNC MRP420024产品简介

GE DS200DCFBG2BNC MRP420024是一款高性能模拟量输出模块，专为工业自动化系统设计，支持高精度信号控制与多协议通信。该产品结合了GE Fanuc的先进技术，适用于严苛工业环境，满足电机驱动、过程控制、能源管理等领域的复杂需求。

产品概述：

DS200DCFBG2BNC MRP420024属于GE Fanuc 90-30系列PLC系统的扩展模块，提供8通道模拟量输出功能。其核心设计聚焦于高灵敏度信号处理与抗干扰能力，支持快速响应和稳定输出，适用于精密仪器、自动化设备及工业控制系统。模块采用模块化架构，可灵活集成至GE Fanuc的PLC或PAC系统中，实现高效的数据交互与控制。

主要特点和优势：

高精度控制：支持±12V或±10V输出范围，分辨率达16位，满足高精度工业场景需求。

抗干扰设计：采用电磁屏蔽与滤波技术，适应复杂电磁环境，确保信号传输稳定。

多协议兼容：支持EtherNet/IP、Profibus DP、DeviceNet等工业通信协议，便于系统集成与远程监控。

灵活扩展：支持通过VME总线或背板扩展，适配GE Fanuc的CPU模块（如IC695CPU315、IC693CPU320）及I/O模块，构建复杂控制系统。

实时性保障：基于VxWorks实时操作系统，支持多任务处理，响应时间低至微秒级。

技术规格：

参数规格

型号DS200DCFBG2BNC MRP420024

通道数量8通道模拟量输出

输出范围±12V或±10V（可选）

分辨率16位

通信接口VME总线、EtherNet/IP、Profibus DP、DeviceNet

工作温度-20℃至60℃

存储温度-40℃至85℃

供电要求5VDC（额定电流2A）

防护等级IP20（开放式外壳）

尺寸19英寸标准机架安装（高度：3U）

应用领域：

工业自动化：电机驱动器、机器人控制、过程自动化系统。

能源管理：UPS电源、电力设备监控、能源分配网络。

精密仪器：医疗成像设备、实验室仪器、高精度传感器校准。

交通与基础设施：铁路信号控制、智能交通系统、楼宇自动化。

相关产品：

IC695CPU315：配套CPU模块，支持实时多任务处理与工业网络通信。

IC693ACC329：模拟量输入模块，与DS200DCFBG2BNC MRP420024协同实现闭环控制。

IC695CPE400CA：通信扩展模块，增强系统间数据传输能力。

IC698CRE020：冗余CPU模块，提供高可靠性热备方案。
