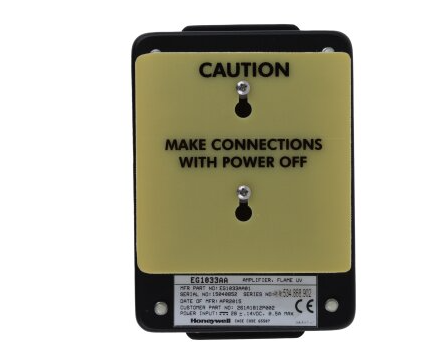

HONEYWELL EG1033AA, EG1033AA01, and 261A1812P002 Product Introduction

Product Overview:

HONEYWELL EG1033AA, EG1033AA01, and 261A1812P002 are flame monitoring devices designed by Honeywell specifically for industrial combustion systems. They use advanced ultraviolet (UV) detection technology and are suitable for flame state monitoring in key scenarios such as gas turbines, boilers, and power plants. The product has the characteristics of high sensitivity, strong anti-interference ability, and rapid response, providing reliable guarantee for industrial safety production.

Main features and advantages:

High sensitivity detection: Through UV spectroscopy detection technology, accurately identify the UV radiation emitted by hydrocarbon flames, effectively avoiding false alarms or omissions.

Strong environmental adaptability: The working temperature range covers -40 ° C to 176 ° C, with a protection level of IP65, and can withstand harsh industrial environments (high temperature, vibration, dust, etc.).

Fast response: millisecond level response time, ensuring timely signal transmission in the early stages of a fire and reducing safety risks.

Diversified output: Supports analog signals (4-20mA), switch signals, and digital signals (RS-485, etc.), compatible with mainstream DCS systems, easy to integrate and monitor.

Long lifespan and stability: The design lifespan is up to 1 billion working hours, with an MTBF (mean time between failures) of over 10000 hours, reducing maintenance frequency.

Flexible installation: Supports wall mounted, flange mounted, and pipeline installation, adapting to different equipment layout requirements.

Technical specifications:

Detailed parameter information

Detection technology: Ultraviolet (UV) light

Detection angle 90 ° -120 ° (depending on model configuration)

Response time in milliseconds

Power requirement 24V DC (industrial standard power supply)

Output signal analog signal (4-20mA), switch signal, RS-485, etc

Working temperature -40 ° C to+176 ° C

Protection level IP65

Installation methods include wall mounted, flange mounted, and pipeline installation

Material: corrosion-resistant metal shell

Warranty period of 1 year (from the date of delivery)

Application areas:

Oil and natural gas: Monitor the flames of burners in refining and storage facilities to prevent explosion accidents.

Chemical industry: Suitable for flame monitoring of equipment such as reaction vessels and heating furnaces in flammable and explosive environments.

Electric power generation: Real time detection of flame status in gas turbines and coal-fired boilers to ensure the safety of the power generation system.

Metallurgy and Mining: Flame Monitoring of High Temperature Industrial Kilns to Prevent Fire Spread.

Other industrial scenarios: incinerators, industrial boilers, fire warning systems in storage areas, etc.

Maintenance and operation suggestions:

Installation precautions: Ensure that the detector is directly visible to the flame area and avoid obstruction by obstacles; Regularly calibrate equipment sensitivity.

Daily maintenance: Regularly clean the optical lens to prevent dust or dirt from affecting detection accuracy; Avoid severe vibrations or impacts.

Spare parts management: It is recommended to reserve spare equipment or core components for critical scenarios to ensure quick replacement.

Related products:

EG1033AC/AD: Same series expansion model, suitable for different power or signal output requirements.

BC1000 Flame Monitor: Honeywell photoelectric flame monitoring instrument that can be used in conjunction with the EG series to enhance system redundancy.

EC7800 fully intelligent combustion controller: programmable logic controller integrated with EG flame detector to achieve automated combustion safety management.





HONEYWELL EG1033AA、EG1033AA01及261A1812P002产品简介

产品概述：

HONEYWELL EG1033AA、EG1033AA01及261A1812P002是霍尼韦尔旗下专为工业燃烧系统设计的火焰监测设备，采用先进的紫外光（UV）检测技术，适用于燃气轮机、锅炉、发电站等关键场景的火焰状态监测。产品具备高灵敏度、抗干扰能力强、响应迅速等特点，为工业安全生产提供可靠保障。

主要特点和优势：

高灵敏度检测：通过紫外光谱检测技术，精准识别碳氢化合物火焰发出的紫外线辐射，有效避免误报或漏报。

环境适应性强：工作温度范围覆盖-40°C至176°C，防护等级达IP65，可耐受恶劣工业环境（高温、振动、灰尘等）。

快速响应：毫秒级响应时间，确保在火灾初期及时发出信号，降低安全风险。

多样化输出：支持模拟信号（4-20mA）、开关信号及数字信号（RS-485等），兼容主流DCS系统，便于集成与监控。

长寿命与稳定性：设计寿命长达10亿工作小时，MTBF（平均无故障时间）超过10000小时，减少维护频率。

安装灵活：支持壁挂式、法兰式及管道安装，适配不同设备布局需求。

技术规格：

参数详细信息

检测技术紫外光（UV）

探测角度90°-120°（视型号配置）

响应时间毫秒级

电源需求24V DC（工业标准电源）

输出信号模拟信号（4-20mA）、开关信号、RS-485等

工作温度-40°C至+176°C

防护等级IP65

安装方式壁挂式、法兰式、管道安装

材质防腐蚀金属外壳

质保期1年（自交货日起）

应用领域：

石油与天然气：监测炼化装置、储运设施的燃烧器火焰，预防爆炸事故。

化工行业：适用于易燃易爆环境中的反应釜、加热炉等设备的火焰监控。

电力发电：燃气轮机、燃煤锅炉的火焰状态实时检测，保障发电系统安全。

冶金与矿业：高温工业炉窑的火焰监测，防止火灾扩散。

其他工业场景：焚烧炉、工业锅炉、仓储区火灾预警系统等。

维护与操作建议：

安装注意事项：确保探测器与火焰区域直接可视，避免障碍物遮挡；定期校准设备灵敏度。

日常维护：定期清洁光学镜头，防止灰尘或污垢影响检测精度；避免剧烈震动或冲击。

备件管理：关键场景建议储备备用设备或核心配件，确保快速更换。

相关产品：

EG1033AC/AD：同系列扩展型号，适配不同电源或信号输出需求。

BC1000火焰监视器：霍尼韦尔光电式火焰监测仪表，可与EG系列协同使用，增强系统冗余性。

EC7800全智能燃烧控制器：可编程逻辑控制器，与EG火焰探测器集成，实现自动化燃烧安全管理。
