GE IC693CHS391 Product Introduction

GE IC693CHS391 is a key component in the GE Fanuc 90-30 series programmable logic controller (PLC) system. As a high-performance motherboard module, it provides a stable and reliable hardware foundation for industrial automation systems. This product has a compact design and comprehensive functions, and is widely used in various harsh industrial environments, helping to achieve efficient and safe automation control.

Product Overview:

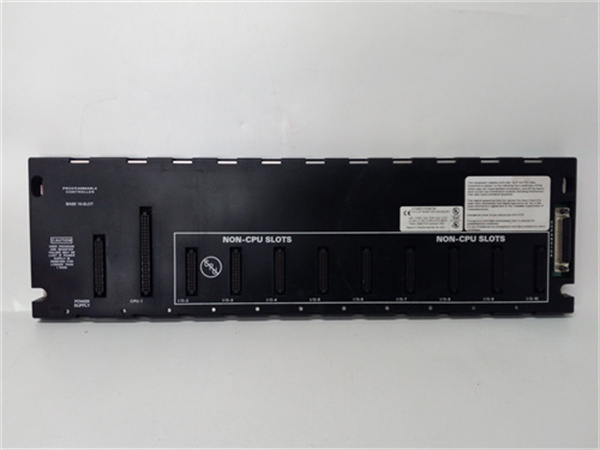

IC693CHS391 is a slot style expansion board designed specifically for the GE Fanuc 90-30 PLC series. Its core functions include providing installation interfaces for CPU modules, I/O modules, and power modules, and achieving communication and collaboration among various components within the system through bus connections. The bottom plate structure is sturdy, compatible with multiple expansion schemes, and can be flexibly configured to meet automation needs of different scales.

Main features and advantages:

Modular design: Provides 10 slots (including dedicated power slots), supporting the installation of CPU modules and up to 9 I/O modules or expansion modules, facilitating system expansion and maintenance.

Efficient expansion capability: Through the 25 pin female connector on the right, it can connect to remote or expansion baseboards, supporting up to 7 expansion baseboards (depending on CPU model), with an expansion distance of up to 700 feet, improving system capacity and flexibility.

Reliable and stable: Adopting industrial grade manufacturing standards, with anti vibration and dust-proof design, suitable for working environments ranging from -20 ℃ to 60 ℃, ensuring long-term stable operation.

Power optimization: Independent power socket design, compatible with dedicated power modules, providing stable power supply for the system and reducing the risk of failure.

Communication compatibility: Supports multiple industrial communication protocols such as EtherNet/IP, Profibus DP, DeviceNet, etc., making it easy to integrate with other devices or systems.

Flexible installation: Supports panel installation, fixed with screws, can be arranged vertically or horizontally, and adapts to different cabinet layouts.

Application areas:

IC693CHS391 is widely used in the following scenarios:

Industrial automation: production line control, robot systems, process automation, etc.

Energy sector: Monitoring and control systems for power, oil, and natural gas equipment.

Infrastructure: water treatment, traffic signals, building automation, etc.

Manufacturing industry: Integrated control of complex production environments such as automobiles, electronics, and food processing.

Technical specifications:

Parameter specifications

Model IC693CHS391

Number of slots: 10 slots (including 1 dedicated power slot)

Power requirement 5VDC (rated current 420mA)

Communication interface 25 pin female connector (supporting expansion connection), supporting EtherNet/IP, Profibus DP, DeviceNet

Working temperature -20 ℃ to 60 ℃

Storage temperature -40 ℃ to 85 ℃

Installation method: Panel installation (fixed with screws)

Protection level IP20 (open shell)

Size approximately 200mm x 150mm x 50mm

Related products:

IC693CHS391J: Same series expansion board, supporting higher expansion capacity or special functions.

IC698CPE010/020: RX7i series CPU module, compatible with IC693CHS391, enhances system processing performance.

IC693MDLXXX series: digital/analog I/O modules that can be inserted into the motherboard slot to expand input/output functions.

IC698PSA100/350: Comes with a power module to provide power support for the motherboard and system components.
