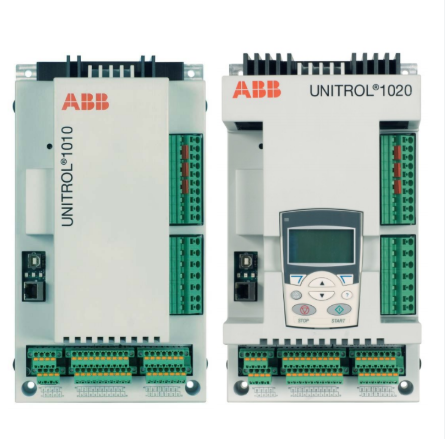

ABB UNITOL 1010 3BHE035301R0001 is a high-performance indirect excitation system controller in the ABB UNITOL 1000 series, designed specifically for small and medium-sized synchronous generators and industrial machines. The following is a comprehensive overview of its core functions and technical parameters:

1. Product Overview

Positioning: Belonging to the UNITOL 1000 series, it integrates microprocessor technology and IGBT semiconductor, supports continuous working current output up to 10ADC, and is suitable for excitation control of synchronous generators and industrial equipment in harsh environments.

Design features:

Compact: shares the same interface and size as UNITOL 1020, making it easy to install and maintain.

High reliability: Compliant with DNV and UL standards, suitable for a wide temperature range (-30 ° C to+70 ° C) and high vibration scenarios.

Scalability: Supports expansion to 40A excitation current through external power modules (such as UNITOL 1000-PM40).

2. Technical specifications

Parameter specifications

Input voltage range AC 0-300V (single-phase/three-phase) or DC 0-300V, frequency 40-600Hz

Continuous output current of 10A DC, overload of 20A DC (for 10 seconds)

Control mode: Automatic voltage regulation (AUTO), constant power factor (PF), constant reactive power (VAR), manual (MANUAL)

Communication interfaces include Ethernet (Modbus TCP), USB, RS485 (Modbus RTU), CAN

Protection level IP20 (indoor installation), aluminum shell reinforced design

Environmental adaptability: Operating temperature range of -30 ° C to+70 ° C, humidity of 95%

Data recording and logging non-volatile flash storage events and operational data, supporting remote download and analysis

3. Core functions

Dual channel control: supports load distribution and synchronization of parallel operating units, enhancing system redundancy.

Intelligent monitoring:

Rotating diode monitoring: Real time detection of excitation system status to prevent faults.

Automatic synchronization: Simplify grid connection operations and ensure stable parallel operation of the units.

Communication and Integration:

Remote configuration and maintenance can be achieved through Ethernet or USB, compatible with CMT1000 debugging tools.

Supports multi protocol communication (such as Modbus, CAN) for easy integration with SCADA/DCS systems.

Protection function:

Overcurrent, undervoltage, and short circuit protection, supporting fault diagnosis and alarm.

Built in event recording function for easy fault analysis and quick recovery.

4. Application scenarios

Power generation field: land-based power plants (diesel/gas/hydro turbines), ship electric propulsion systems.

Industrial equipment: diesel electric locomotives, port cranes, mining trucks, synchronous motor control.

Special requirements: Excitation regulation for industrial synchronous motors in high vibration, dusty or humid environments.
