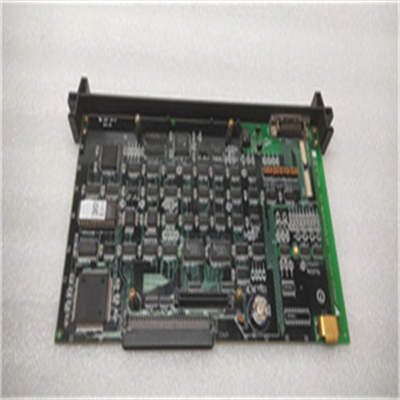

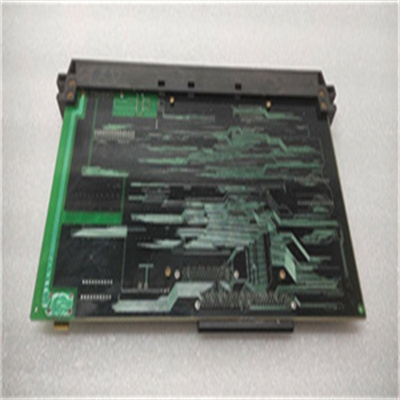

Product Introduction: JEPMC-CP210T2V

JEPMC-CP210T2V is a specialized module for industrial automation launched by YASKAWA (Yaskawa Electric), mainly used for fieldbus network communication and equipment control. This module combines high reliability and flexible protocol support capabilities, and is widely used in industrial control, ship propulsion systems, and process automation scenarios.

Main features and advantages

Multi protocol compatibility

Supports industrial communication protocols such as MODBUS and PROFIBUS-DP, enabling seamless data exchange between different devices. Through configuration, the module can operate in MODBUS master or slave mode to meet the requirements of complex systems.

High isolation and anti-interference design

Triple isolation design for signal input/output/power supply, with an isolation voltage of up to 3000VDC, effectively suppressing electromagnetic interference in industrial environments and ensuring stable data transmission.

Wide temperature and humidity adaptability

The working temperature range is -45 ℃ to+85 ℃, with a humidity adaptability of up to 90%, suitable for extreme industrial environments such as ships, metallurgy, chemical industry, etc.

Modular expansion capability

A single module can support up to 256 device accesses and achieve large-scale system integration through RS-485 bus, reducing wiring complexity.

technical specifications

Parameter item specification description

The protocol supports MODBUS (function code 01H-10H) and PROFIBUS-DP

Interface type RS-232/485 (half duplex), baud rate 2400-57.6K optional

Data capacity MODBUS data area mapped to PROFIBUS data area, maximum input/output byte count ≤ 232 bytes

Power supply requirement: 24VDC ± 5%, power consumption ≤ 200mA

Protection level IP40

Physical dimensions 115mm × 165mm

Installation method: 35mm rail installation

application area

Industrial automation system

As a communication interface module for DCS (Distributed Control System) or PLC (Programmable Logic Controller), it enables equipment status monitoring and remote control.

ship propulsion system

Integrated into the ship’s power control unit, supporting sensor signal acquisition and actuator control, enhancing navigation safety and efficiency.

Process Control and Energy Management

Used for real-time monitoring and adjustment of temperature, pressure, and other parameters in industries such as power, chemical, and metallurgy.

Related products

JEPMC-CP3201R-E

Advanced communication modules of the same series, supporting more protocol extensions and higher data throughput, suitable for ultra large scale industrial networks.

JEPMC-PC040

The supporting controller module provides logical operation and data processing functions, and can be combined with JEPMC-CP210T2V to construct a complete control unit.

YASKAWA JGSM-06

The servo drive module achieves synchronous communication with the upper computer through JEPMC-CP210T2V, optimizing motion control accuracy



产品简介：JEPMC-CP210T2V

JEPMC-CP210T2V是YASKAWA（安川电机）推出的一款工业自动化领域专用模块，主要用于现场总线网络通信与设备控制。该模块结合了高可靠性与灵活的协议支持能力，广泛应用于工业控制、船舶推进系统及过程自动化场景。

主要特点和优势

多协议兼容性

支持MODBUS、PROFIBUS-DP等工业通信协议，可实现不同设备间的无缝数据交互。通过配置，模块可在MODBUS主站或从站模式下运行，满足复杂系统的需求。

高隔离与抗干扰设计

信号输入/输出/电源三重隔离设计，隔离电压达3000VDC，有效抑制工业环境中的电磁干扰，确保数据传输稳定。

宽温湿度适应性

工作温度范围为-45℃至+85℃，湿度适应性高达90%，适用于极端工业环境，如船舶、冶金、化工等领域。

模块化扩展能力

单个模块可支持最多256个设备接入，通过RS-485总线实现大规模系统集成，降低布线复杂度。

技术规格

参数项规格描述

协议支持MODBUS（功能码01H-10H）、PROFIBUS-DP

接口类型RS-232/485（半双工），波特率2400-57.6K可选

数据容量MODBUS数据区与PROFIBUS数据区映射，最大输入/输出字节数≤232 Bytes

供电要求24VDC±5%，功耗≤200mA

防护等级IP40

物理尺寸115mm×165mm

安装方式35mm导轨安装

应用领域

工业自动化系统

作为DCS（分布式控制系统）或PLC（可编程逻辑控制器）的通信接口模块，实现设备状态监控与远程控制。

船舶推进系统

集成至船舶动力控制单元，支持传感器信号采集与执行器控制，提升航行安全性与效率。

过程控制与能源管理

在电力、化工、冶金等行业中，用于温度、压力等参数的实时监测与调节。

相关产品

JEPMC-CP3201R-E

同系列高级通信模块，支持更多协议扩展与更高数据吞吐量，适用于超大规模工业网络。

JEPMC-PC040

配套控制器模块，提供逻辑运算与数据处理功能，与JEPMC-CP210T2V组合可构建完整控制单元。

YASKAWA JGSM-06

伺服驱动器模块，通过JEPMC-CP210T2V实现与上位机的同步通信，优化运动控制精度
