product overview

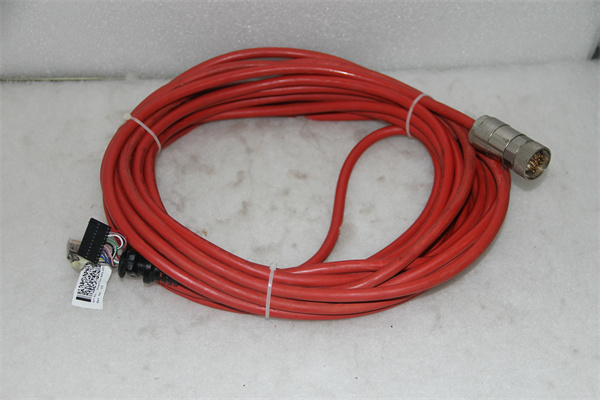

Model ABB 3HAC031683-001 is an industrial grade teaching pendant cable designed specifically for ABB robot control systems.It is used to connect IRC5 series controllers(such as IRC5-M2004)with teaching boxes,supporting data transmission and power supply.Its core functions include instruction interaction,parameter configuration,and system status feedback,suitable for high-precision industrial automation scenarios.

technical specifications

Parameter item description

Standard length of 10 meters,supports customization(minimum bending radius≥50mm)

Physical dimensions:10138×26.5×26.5mm,weight:1.08kg

Working temperature-25℃to 70℃

Protection level IP65(dustproof and waterproof,resistant to oil mist and coolant splashing)

The communication protocol supports digital signals(DI/DO),analog signals(AI/AO),and high-speed instruction transmission

Electrical performance rated voltage:24V DC,withstand voltage level:250V AC

Environmental adaptability through vibration,humidity,and salt spray testing,suitable for complex industrial environments such as automobile manufacturing and food processing

Main features and advantages

Industrial grade durability

Adopting SxTPU3 high wear-resistant sheath material,with a bending and folding life of up to 100000 times,it is suitable for high-frequency motion scenarios of robots.

Built in shielding layer and anti-interference design ensure stable communication in complex electromagnetic environments such as welding workshops.

Flexible adaptability

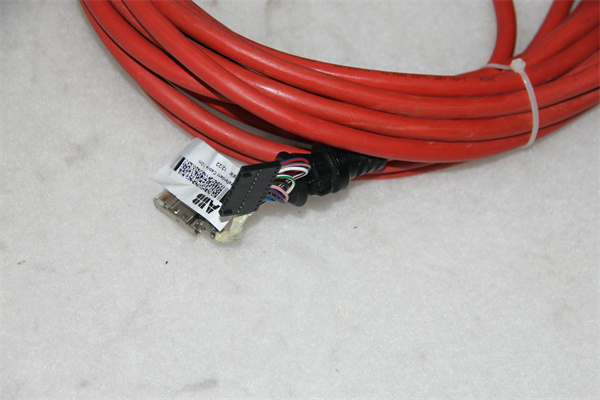

Standard 10 meter length,supports customized production,and adopts a foolproof plug design at the end to avoid communication interruption caused by accidental insertion.

Compatible with the full range of ABB robot teaching boxes and controllers,compatible with models such as IRC5 and IRC5C.

Efficient data transmission

Support real-time instruction transmission with a delay of less than 1ms,meeting high-precision control requirements such as precision assembly and welding.

Built in temperature monitoring function,automatically triggering protection mechanism in case of abnormalities,extending equipment life.

Environmental compatibility

Compliant with FDA food grade material certification,the easy to clean design is suitable for food processing scenarios.

It maintains flexibility in low temperature environments(-25℃)and supports the application of cold chain storage robots.

application area

Automobile manufacturing:Welding robots work together with the main control PLC to achieve 0.1mm level weld seam accuracy control.

3C Electronics:SCARA robot vision system data transmission,supporting real-time transmission of 1080P high-definition images.

Food processing:Controlled by palletizing robots in low-temperature environments,resistant to oil stains and corrosion from cleaning agents.

Logistics warehousing:AGV scheduling system connected to mobile terminals,supporting continuous operation for 18 months without failure.
