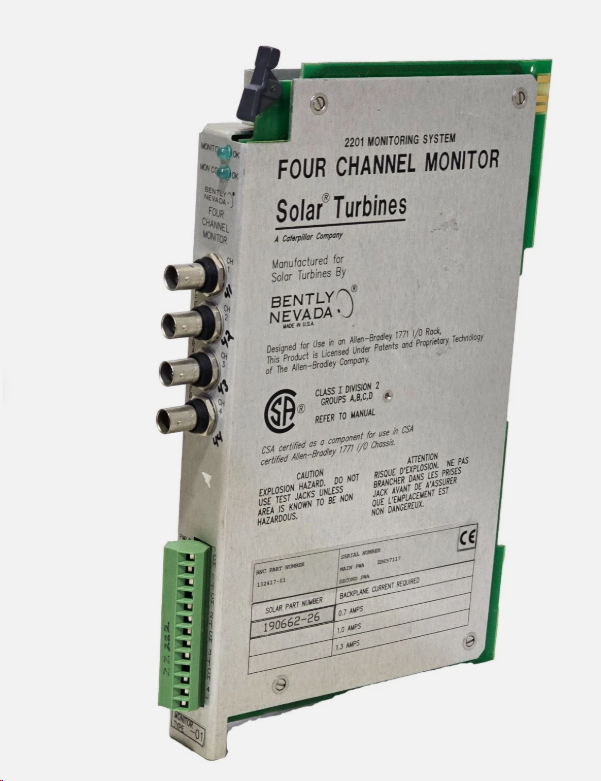

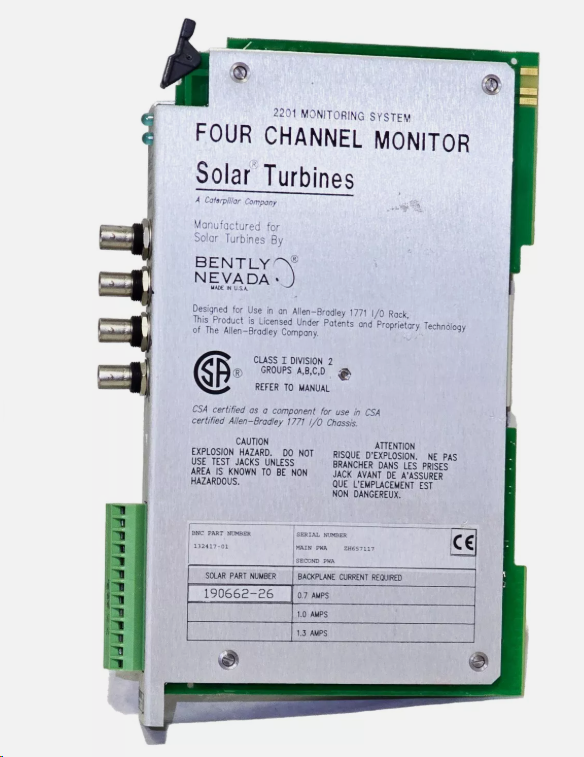

BENTLY 132417-01 Product Introduction

1.Product positioning and core functions

Functional positioning:BENTLY 132417-01 is a four-channel input/output monitor module in the Bently Nevada 3500 series mechanical protection system.It is specially designed for vibration,displacement and speed monitoring of industrial equipment and supports multi-sensor signal processing and real-time alarm functions.

Core role:

Signal processing:Receive and process analog signals from displacement,speed and acceleration sensors,and complete the measurement of radial vibration,axial displacement,differential expansion,eccentricity and other parameters.

Alarm and protection:trigger the alarm signal according to the preset threshold,support emergency shutdown command output,and prevent equipment damage.

Data synchronization:Remote monitoring and data analysis are realized by interacting with the upper computer system through Ethernet or serial communication protocols(such as BN Host,TDI).

2.Technical characteristics

Channel configuration:

Four-channel independent monitoring:Each channel can be independently programmed and supports different sensor types(such as eddy current probes and piezoelectric accelerometers).

Multi-parameter compatibility:Single channel can monitor vibration amplitude,speed,acceleration and phase information at the same time.

Communication ability:

Protocol support:Compatible with BN Host,TDI,Modbus and other industrial protocols,support Ethernet(10/100Base-TX)and serial port(RS232/RS422)communication.

Data synchronization:Multi-channel waveform data synchronous collection is realized through the TDI protocol,and transient event recording(such as start-stop process data)is supported.

Environmental adaptability:

Industrial-grade design:in line with IP54 protection level,suitable for high temperature,high humidity and strong vibration environment.

Redundant expansion:It can be used with 3500 series redundant modules(such as TMR structure)to improve system reliability.

3.Application scenarios

Rotating machinery monitoring:shaft vibration and axial displacement monitoring of turbines,compressors,pumps and other equipment.

Industrial process control:health status assessment and fault warning of key equipment in the chemical,electric power and metallurgical industries.

Predictive maintenance:Through long-term vibration data analysis,predict bearing wear,shaft failure and moderate failure,and optimize the maintenance plan.

4.Core advantages

High precision and real-time:

The measurement accuracy is±0.1%,and the sampling frequency supports 2 to 128 laps per rotation to meet the monitoring needs of high-speed rotating equipment.

Real-time data update frequency is up to milliseconds to ensure a quick response to abnormal conditions.

Modular expansion:

It supports hot-swappable maintenance,is compatible with other modules of the 3500 series(such as relay modules and power modules),and flexibly adapts to different system sizes.

Intelligent function:

Built-in fault diagnosis algorithm can identify complex working conditions such as mechanical loosening and resonance.

Support waveform analysis and spectrum diagnosis,and assist engineers to locate fault sources.
