Product Overview

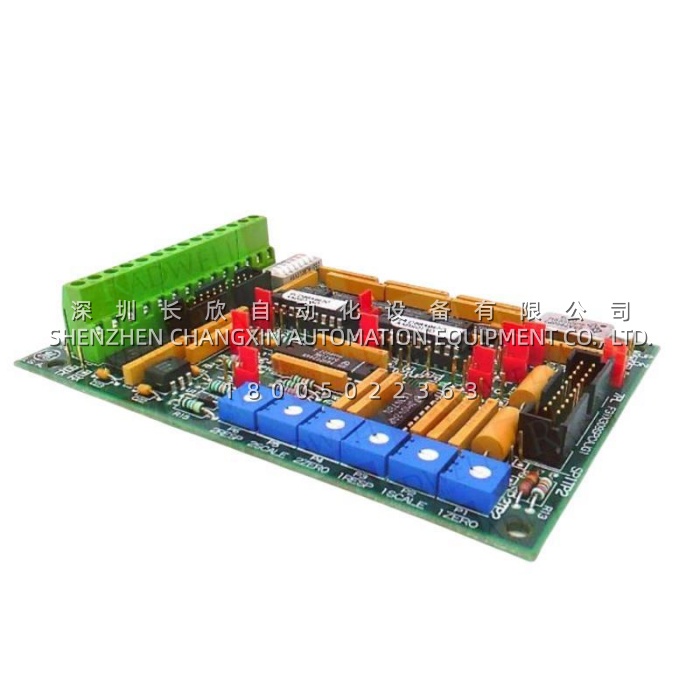

The GE 531X309SPCAJG1​ is a signal processor card from General Electric’s 531X family, a series of replacement and interface boards built for legacy GE industrial drive and exciter cabinets. Identified on the board as SPCA — Signal Processor Card — it performs the signal front-end work that a digital adjustable speed drive depends on: taking raw feedback and command signals from the plant, conditioning them, and presenting clean, standardised references to the drive’s control card. In the GE DC2000 Digital Adjustable Speed Drive architecture, the 531X309SPCAJG1​ works directly alongside the SDCC drive control card, and the two are specified as a pair rather than as independent modules.Its duties fall into three groups. First, speed feedback: the GE 531X309SPCAJG1​ provides the interface medium between the processor card and externally connected encoders and tachometers, processing quadrature encoder signals and analogue tachometer inputs so that the control card receives accurate speed and direction data for closed-loop velocity regulation. Second, reference conversion: it converts three current reference signals and one voltage level signal into voltage reference signals that the drive control board can act on, which removes the need for external signal conditioners between the command source and the control card. Third, serial handling: RS-422 signals are processed on board before being passed to the motor control processor, with balanced differential signalling giving the noise immunity a drive cabinet demands.Because the 531X309SPCAJG1​ is configured entirely through hardware — jumpers, DIP switches and trimming potentiometers governing filter time constants, gain, offset and input type — it contains no firmware to manage and no software to relicense. That is precisely why it remains a practical spare for plants keeping legacy GE drive assets in service long after original production ceased.

Technical Specifications

Main Features and Advantages

Hardware configuration with no software dependency: Every parameter on the GE 531X309SPCAJG1​ is set at the board level through jumpers, switches and potentiometers. There is no firmware version to reconcile, no programming cable to find and no licence to renew, which matters enormously on a drive platform that predates modern configuration tooling. A technician can select the input type, set the filter time constant, trim the gain and match the encoder or tachometer output level with a screwdriver and the drive manual, then verify the result at the labelled test points on the board.Clean speed feedback in an electrically noisy cabinet: Closed-loop speed regulation is only as good as the feedback feeding it, and drive enclosures are hostile places for low-level signals. The 531X309SPCAJG1​ accepts differential quadrature encoder inputs and analogue tachometer signals directly, conditioning them through differential amplification and multi-stage filtering before passing standardised speed data to the control card. The RS-422 link uses balanced differential signalling specifically because it rejects common-mode noise, so command and diagnostic data survive in cabinets shared with contactors, transformers and power cabling.Reference conversion that removes external hardware: By converting three current reference signals plus one voltage level into the voltage references the control board expects, the 531X309SPCAJG1​ eliminates a layer of external signal conditioning between the command source and the drive. Fewer conversion stages means fewer calibration points, less drift over time, and a cleaner interface to the PLC or process controller issuing the speed command.Field-recalibration without a programme change: The on-board trimming potentiometers let maintenance staff correct zero offset, gain, and filter characteristics after a board swap, matching the new card to the existing machine rather than the other way around. This is the practical reason the 531X309SPCAJG1​ can be replaced during a short outage window instead of requiring a full drive recommissioning.
